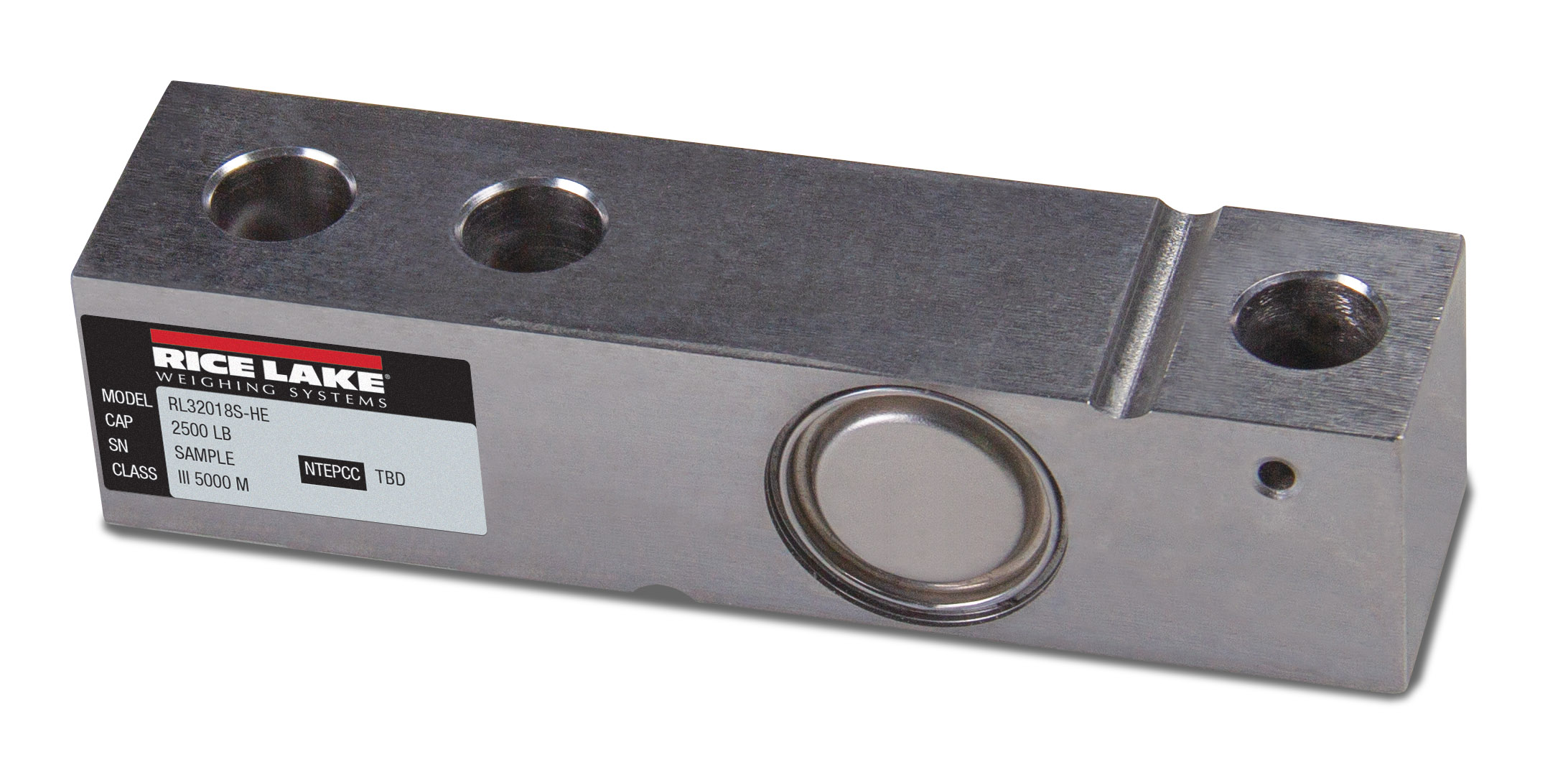

Rice Lake RL32018S-HE Stainless Steel, Single-Ended Beam Load Cell

The Rice Lake RL32018S-HE is a hermetically sealed, stainless steel single-ended beam load cell with 20 ft of PTFE jacketed cable for protection in harsh environments. Sealed to IP69K standards this cell is 3 mV/V and NTEP certified from 1,000 to 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V ±0.05% current matched

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 200 °F (-18 °C to 93 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms

Cable Length:
20 ft PTFE cable

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP

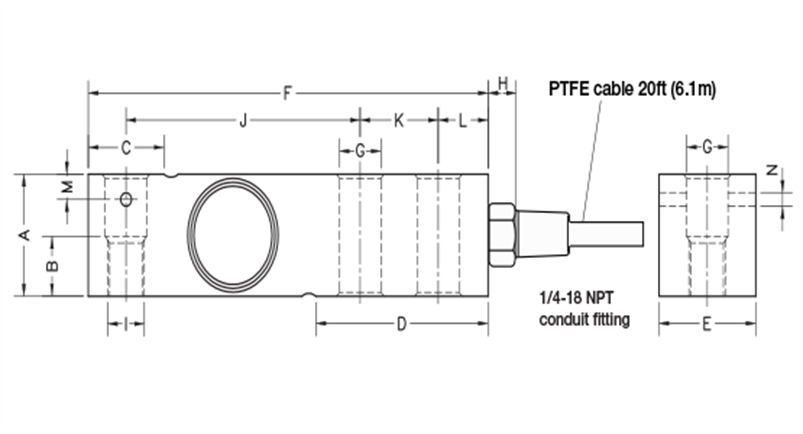

Rated Capacity A B C D E F G H I J K L M N
lb/in
1,000 to 4,000 1.24 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
5,000 to 10,000 1.50 0.75 1.45 2.99 1.50 6.75 0.80 0.70 3/4-16 UNF 3.75 1.50 0.75 - -





Resources / Downloads

Title Download Email
RL32018S-HE Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Your First Choice in Load Cells Download Email Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
189176 Load Cell,SEB RL32018S-HE 1000lb 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $429.00

189178 Load Cell,SEB RL32018S-HE 2000lb 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $429.00

189179 Load Cell,SEB RL32018S-HE 2500lb 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $429.00

189181 Load Cell,SEB RL32018S-HE 4000lb 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $429.00

189182 Load Cell,SEB RL32018S-HE 5000LBLE 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $477.00

189183 Load Cell,SEB RL32018S-HE 10000lb 20ft PTFE cable 3mv/v 350 Ohm NTEP III 5M FM WW SST IP69K

List Price: $477.00

208667 Load Cell,SEB RL32018S-HE 5000LBSE 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K

List Price: $429.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
