Rice Lake RL32018S-P Stainless Steel, Single-Ended Beam Load Cell
Sealed to IP69K, it has a 3 mV output and is FM approved. Available in capacities from 1,000 lb to 10,000 lb. Comes complete with 20 ft of PTFE cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL32018S-P Load Cell Specification
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: |
Deflection: Cable Length: Cable Color Code: Warranty: Approvals: |
RL32018S-P Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||||||
| 1,000 to 5,000 SE | 1.24 | 0.59 | 0.96 | 2.20 | 1.25 | 5.12 | 0.53 | 0.70 | 1/2-20 UNF | 3.00 | 1.00 | 0.62 | 0.25 | 0.13 |
| 5,000 LE to 10,000 | 1.50 | — | 1.45 | 2.99 | 1.50 | 6.75 | 0.80 | 0.70 | 3/4-16 UNF | 3.75 | 1.50 | 0.75 | — | — |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 190654 | Load Cell,SEB RL32018S-P 1000lb 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $371.00 |
|
| 190655 | Load Cell,SEB RL32018S-P 2000lb 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $371.00 |
|
| 190656 | Load Cell,SEB RL32018S-P 2500lb 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $371.00 |
|
| 190657 | Load Cell,SEB RL32018S-P 4000lb 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $371.00 |
|
| 190658 | Load Cell,SEB RL32018S-P 5000LBSE 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $371.00 |
|
| 190659 | Load Cell,SEB RL32018S-P 5000LB 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $418.00 |
|
| 190660 | Load Cell,SEB RL32018S-P 10000LB 20ft PTFE 3 mv/v 350 Ohm FM WW SST IP69K |
List Price: $418.00 |
Related Products

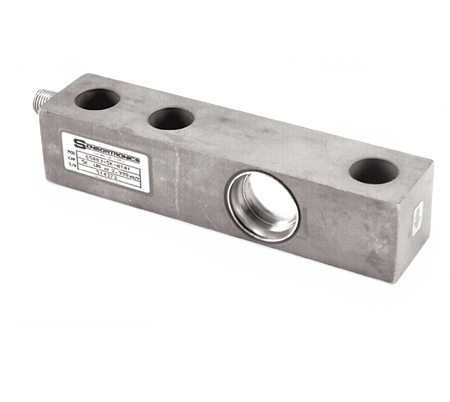

VPG Sensortronics 65083 Stainless Steel, Single-Ended Beam Load Cell
The VPG Sensortronics 65083 welded seal, precision load cell offers exceptional performance and reliability in hostile environment applications typical of food and chemical processing.
RL1800 Series Mild Steel/Stainless Steel Weigh Module
The RL1800 Series mounting assembly kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications.

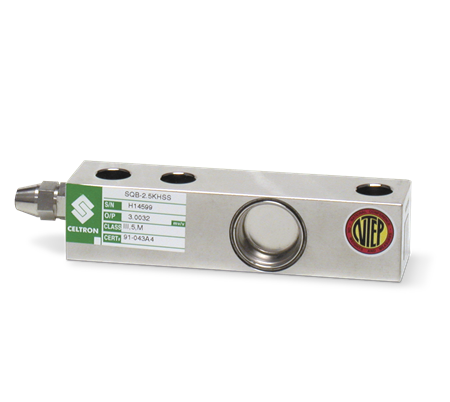

VPG Celtron SQB-HSS Stainless Steel, Single-Ended Beam Load Cell
