Rice Lake RL75016WHE Stainless Steel, Double-Ended Beam Load Cell
Double-ended beam with center loading. Designed for tank and hopper applications. Stainless steel construction and hermetic sealing provide protection in hostile environments. Capacities range from 1,000 lb to 25,000 lb. Complete with 25 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL75016WHE Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |
RL75016WHE Load Cell Dimensions
| Rated Capacity | A1 | A2 | B | C | D | E | F | G | CONDUIT ADAPTER |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 5,000 | 1.22 | 1.22 | 7.50 | 6.25 | 0.62 | 0.50 | 1.12 | 1.25 | 1/2-14 NPT |
| 10,000 to 25,000 | 1.44 | 1.94 | 8.75 | 7.50 | 0.62 | 0.81 | 1.62 | 1.99 | 1/2-14 NPT |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 67043 | Load Cell,DEB RL75016WHE- 1K 1000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $736.00 |
|
| 67044 | Load Cell,DEB RL75016WHE- 1.5K 1500lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $736.00 |
|
| 67045 | Load Cell,DEB RL75016WHE- 2K 2,000lb 25FT 3MV/V 700 OHM SST HS FM IP69K END |
List Price: $736.00 |
|
| 67046 | Load Cell,DEB RL75016WHE- 2.5K 2500lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $736.00 |
|
| 67047 | Load Cell,DEB RL75016WHE- 5K 5000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $736.00 |
|
| 67048 | Load Cell,DEB RL75016WHE- 10K 10,000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $832.00 |
|
| 67049 | Load Cell,DEB RL75016WHE- 15K 15,000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $832.00 |
|
| 67050 | Load Cell,DEB RL75016WHE- 20K 20,000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $832.00 |
|
| 67051 | Load Cell,DEB RL75016WHE- 25K 25,000lb 25FT 3MV/V 700 OHM SST HS FM IP69K |
List Price: $832.00 |
Related Products

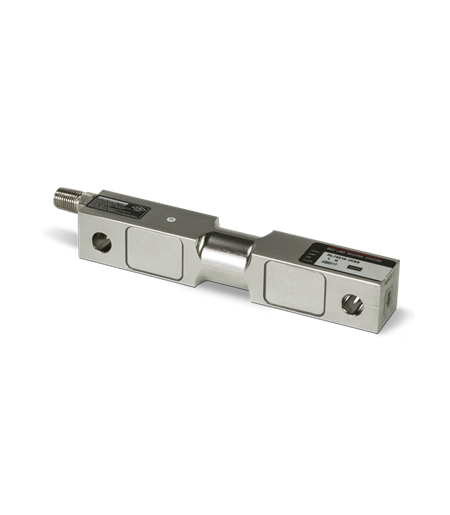

Rice Lake RL75016SS Stainless Steel,Double-Ended Beam Load Cell
The Rice Lake RL75016SS double-ended beam, stainless steel load cell with center loading is designed for tank and hopper applications.
Rice Lake RL75016SS-W Stainless Steel, Double-Ended Beam Load Cell
The Rice Lake RL75016SS-W Stainless Steel, Double-Ended Beam Load Cell is designed for tank and hopper applications.
VPG Sensortronics 65016W Stainless Steel, Double-Ended Beam Load Cell
The VPG Sensortronics 65016W welded seal, stainless steel, double-ended beam load cell is designed for center loading compatibility with RL1600 tank weighing assemblies.
VPG Sensortronics 65016WH Hermetically-Sealed, Double-Ended Beam Load Cell
VPG Sensortronics 65016WH load cell is the stainless steel, full hermetic version of the popular 65016 series of load cells with capacities ranging from 1,000 to 75,000 pounds.

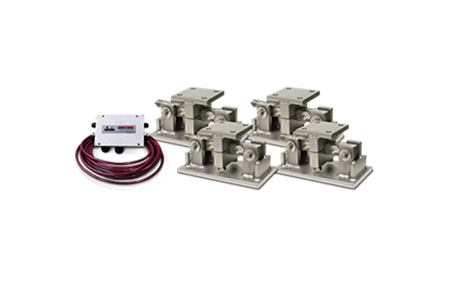

RL1600 Series Cast Iron Weigh Module
