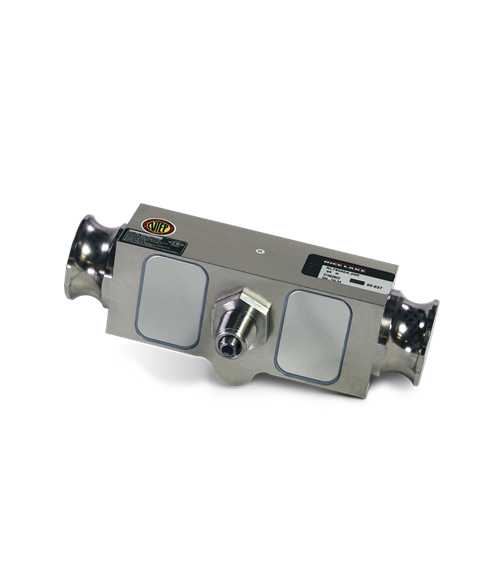

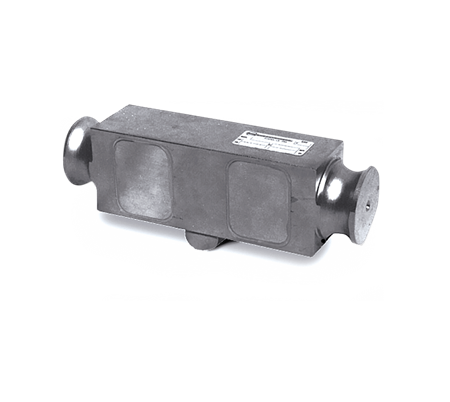

Double-ended beam load cell. Nickel-plated and environmentally sealed with stainless steel plates. Designed for center mounting and double link loading, compatible with Unilink/Translink™ suspension up to 75,000 lb. Capacities range from 25,000 to 125,000 lb. Complete with 35 ft of load cell cable. Optional 40 or 50 ft cable available with some capacities.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 21614 | Load Cell,DEB RL75040A-25 25,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $675.00 | |
| 21615 | Load Cell,DEB RL75040A-40 40,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $805.00 | |
| 21616 | Load Cell,DEB RL75040A-50 LE 50,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $885.00 | |
| 21617 | Load Cell,DEB RL75040A-60 60,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 LE 11.5in | List Price: $885.00 | |
| 21618 | Load Cell,DEB RL75040A-75 75,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $885.00 | |
| 21619 | Load Cell,DEB RL75040A- 100K 100,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $1,669.00 | |
| 21620 | Load Cell,DEB RL75040A- 125K 125,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 | List Price: $1,669.00 |
