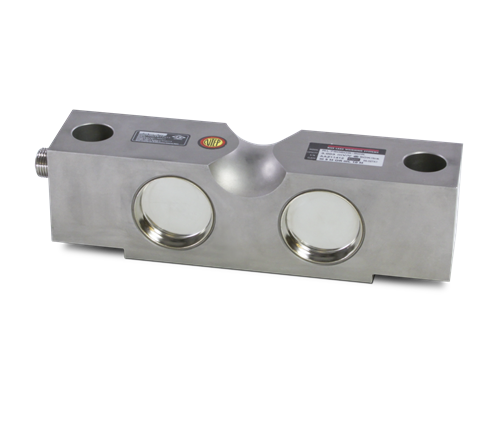

Rice Lake RL75060S Stainless Steel, Double-Ended Beam Load Cell
Provides durability and accuracy in high-capacity process measurement and control. Ideal for vehicle weighing in hostile environments. Capacities range from 20,000 lb to 100,000 lb. NTEP Certified and complete with 35 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL75060S Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Coloring: Warranty: Approvals: |

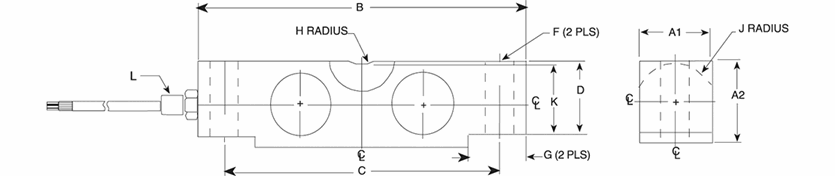

RL75060S Load Cell Dimensions
| Rated Capacity | F | A1 | A2 | B | C | G | H | J | K | D | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 20,000 to 25,000 | 0.68 | 1.69 | 1.94 | 7.75 | 6.50 | 1.38 | 0.75 | 0.90 | 1.63 | 1.70 | 1/4-18 NPT |
| 35,000 to 75,000 | 1.06 | 2.44 | 2.94 | 10.25 | 8.50 | 1.93 | 1.00 | 1.37 | 2.54 | 2.65 | 1/2-14 NPT |
| 100,000 | 1.06 | 2.44 | 3.44 | 10.25 | 8.50 | 1.93 | 1.00 | 1.37 | 2.54 | 2.65 | 1/2-14 NPT |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
35 ft Cable
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 50564 | Load Cell,DEB RL75060S- 100K 100,000lb 35ft 3mV/V 700 OHM WW NTEP III/IIIL 10M FM SST WS IP67 |
List Price: $2,115.00 |
60 ft Cable
