Rice Lake RL8C2P1SST Stainless Steel, Compression Canister Load Cell

Single-column design with low deflection, hermetically sealed for trouble-free operation. Stainless steel for use in harsh environments. Compact and rugged. Capacities range from 50,000 to 200,000 lb. Complete with 35 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.03% full scale

Insulation Resistance:
>1,000 megohms

Deflection at Capacity:
50,000 lb: 0.004 in
100,000 lb: 0.006 in
200,000 lb: 0.009 in

Cable Length:
35 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Orange Shield

Warranty:
Two-year limited

Approvals:
cFMus
NTEP

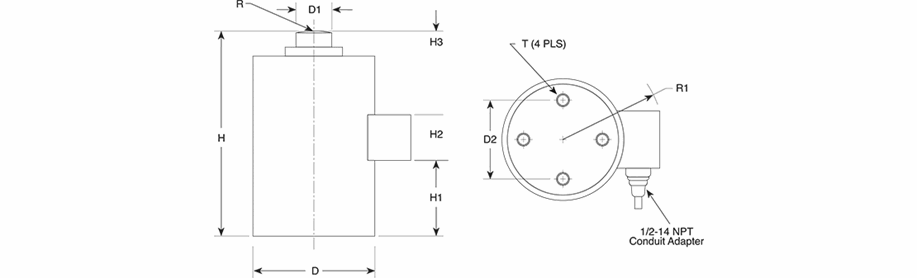

Rated Capacity D D1 D2 H H1 H2 H3 R R1 T
lb/in
50,000 4.50 1.25 2.38 7.50 1.17 0.75 0.75 8.00 3.75 3/8-24 UNF × .63 DP
100,000 5.75 1.75 4.00 9.13 2.00 0.87 1.05 12.00 4.05 1/2-20 UNF × .75 DP
200,000 7.50 2.50 5.50 11.63 2.93 0.97 0.97 12.00 5.11 5/8-18 UNF × 25.4 DP





Resources / Downloads

Title Download Email
RL8C2P1SST Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Your First Choice in Load Cells Download Email Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
34855 Load Cell,CSR RL8C2P1SST- 50k 50,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68

List Price: $2,325.00

34856 Load Cell,CSR RL8C2P1SST- 100k 100,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68

List Price: $2,325.00

34857 Load Cell,CSR RL8C2P1SST- 200k 200,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68

List Price: $3,598.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

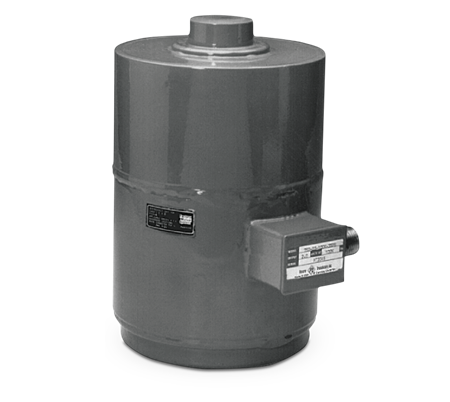

Portals 0 Products 4C1a1029a9e046679fefde7bfa551ab2 Orig

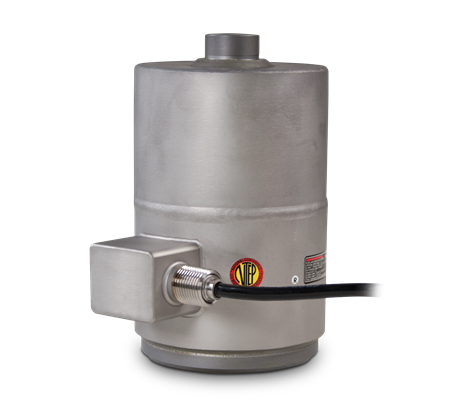

VPG Revere 792 Stainless Steel, Compression Canister Load Cell
