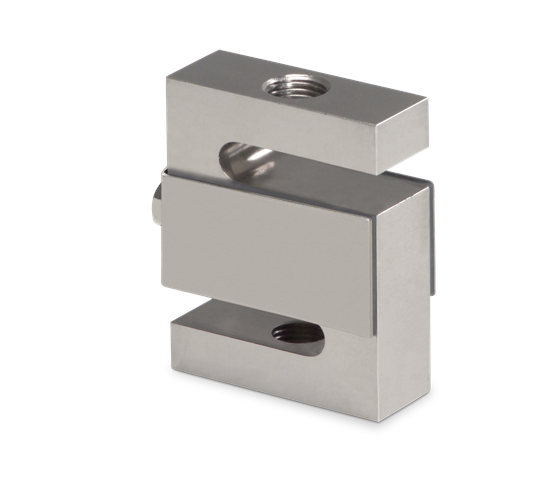

Rice Lake RLETS Alloy Steel, S-Beam Load Cell

Ideally suited for scale conversions and general-purpose weighing. OIML approved and metric envelope capacities ranging from 250 kg to 2,500 kg. Complete with 6 m of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V ±0.25%

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Alloy steel

Temperature:
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VAC/DC (15V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
6 m

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
OIML

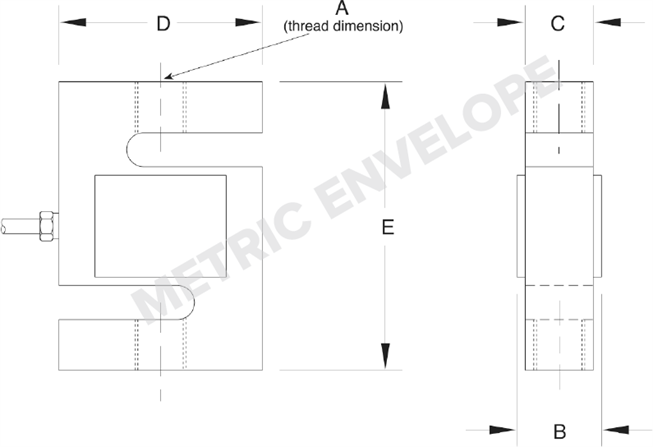

Rated Capacity A B C D E
kg/mm
250-1,000 M12 x 1.75-6H 25.4 19.1 50.8 76.0
2,500 M20 x 1.5-6H 31.8 25.4 76.2 108.0





Resources / Downloads

Title Download Email
RLETS Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

RLETS

Part # Description List Price Cart
31254 Load Cell,SBM RLETS-C3- 250kg 250kg 6m 3mV/V 350 OHM WW OIML-C3 IP67

List Price: $295.00

31255 Load Cell,SBM RLETS-C3- 500kg 500kg 6m 3mV/V 350 OHM WW OIML-C3 IP67

List Price: $295.00

31256 Load Cell,SBM RLETS-C3- 1t 1,000kg 6m 3mV/V 350 OHM WW OIML-C3 IP67

List Price: $295.00

31257 Load Cell,SBM RLETS-C3- 2.5t 2,500kg 6m 3mV/V 350 OHM WW OIML-C3 IP67

List Price: $460.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
