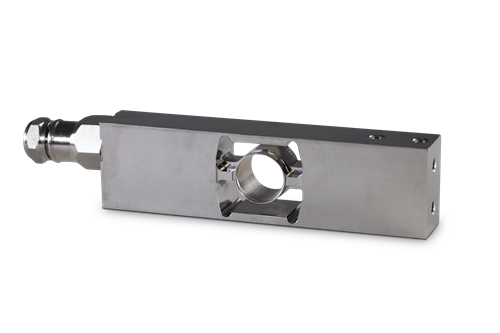

Rice Lake RLPC4SS-HE Stainless Steel, Single Point Load Cell

Stainless steel hermetically sealed single-point designed for bench scales used in washdown applications. Available in capacities from 10 kg to 100 kg. NTEP Certified and OIML approved.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2 mV/V

Output Resistance:
960 (± 50) ohm

Input Resistance:
1100 (± 50) ohm

Material Finish:
Stainless steel

Temperature Compensation:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
> 5,000 megohm

Max Platform Size:
500 × 400 mm

Combined Error:
0.02% full scale

Cable Length:
10 ft

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP 21-016
OIML R60/2017-A-NL1-21.18

Rated Capacity A B C D E F G H
kg/mm
10 to 100 19.0 100.0 6.0 19.1 40.0 25.0 150.0 40.0





Resources / Downloads

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
205270 Load Cell, RLPC4SS-HE 10kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S

List Price: $630.00

205271 Load Cell, RLPC4SS-HE 20kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S

List Price: $630.00

205272 Load Cell, RLPC4SS-HE 50kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S

List Price: $630.00

205273 Load Cell, RLPC4SS-HE 100kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S

List Price: $630.00
