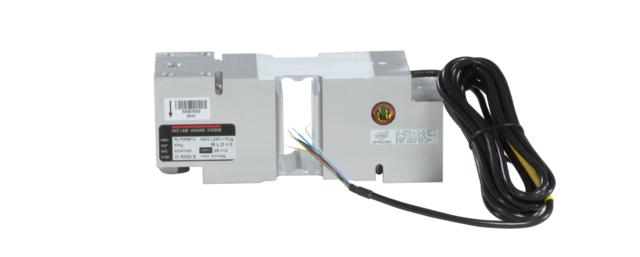

Rice Lake RLPWM12 Aluminum, Single-Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
330 to 450 ohm, nominal

Input Resistance:
300 to 500 ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.190 in PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Warranty:
Two-year limited

Max Platform Size:
30 × 30 in

Approvals:
FM
NTEP 05-113
