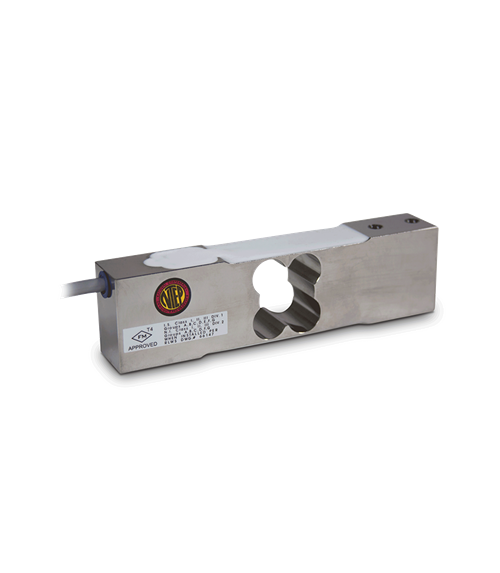

Rice Lake RLPWM15 Stainless Steel, Single Point Load Cell
Environmentally sealed and replaces HBM's PW15 for many bench scale types. Comes in a range of capacities from 10 kg to 100 kg. NTEP certified and FM approved.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RLPWM15 Load Cell Specifications
|
Full Scale Output: Bridge Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Max Platform Size: Cable Color Code: Warranty: Approvals: |

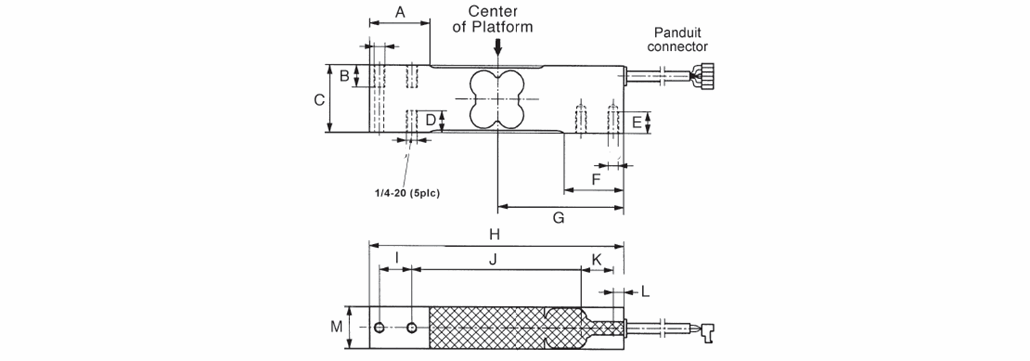

RLPWM15 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||||
| 10 to 100 | 35.0 | 13.0 | 40.0 | 13.0 | 13.0 | 35.0 | 75.0 | 150.0 | 19.0 | 100.0 | 19.0 | 6.2 | 25.0 | 1/4-20 UNC |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 119904 | Load Cell, SPT RLPWM15 10kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III FM IP67 |
List Price: $344.00 |
|
| 119912 | Load Cell, SPT RLPWM15 15kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III S FM |
List Price: $344.00 |
|
| 119905 | Load Cell, SPT RLPWM15 20kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III FM IP67 |
List Price: $344.00 |
|
| 119908 | Load Cell, SPT RLPWM15 50kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III FM IP67 |
List Price: $344.00 |
|
| 119909 | Load Cell, SPT RLPWM15 75kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III FM IP67 |
List Price: $344.00 |
|
| 119910 | Load Cell, SPT RLPWM15 100kg 2mv/v 350 Ohm 10ft SST NTEP 5000 III FM IP67 |
List Price: $344.00 |
Related Products

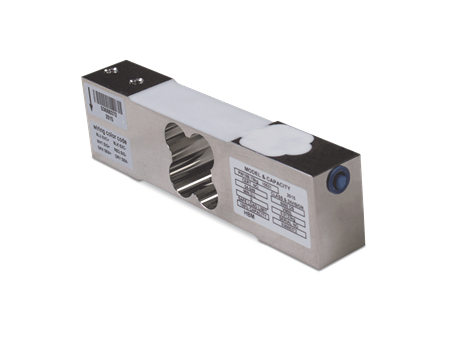

HBM PW15 Stainless Steel, Single Point Load Cell
The HBM PW15 stainless steel, single-point load cell is ideal for platform, hanging scale and other low-capacity beam applications.

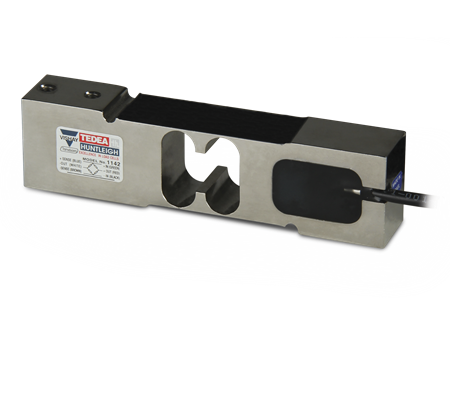

VPG Tedea-Huntleigh 1142 Stainless Steel, Single Point Load Cell
