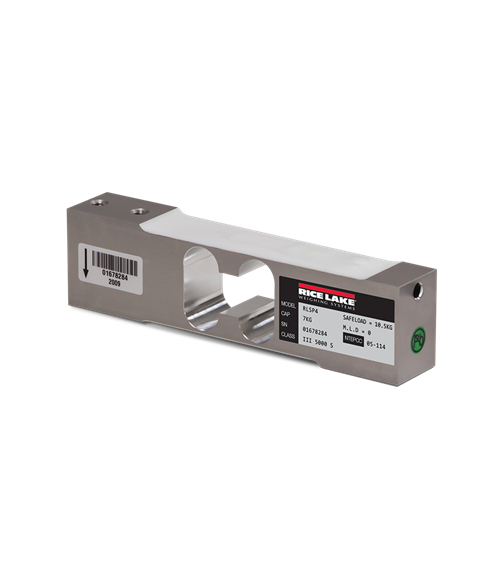

This is a low-profile, off-center-loading single point load cell designed for retail, postal and platform-scale applications. It's constructed from aluminum, moment-compensated for optimal accuracy and protected by a quality gauge coating compound that provides a barrier against high-humidity environments. The RLSP4 is available in capacities ranging from 7 to 100 kilograms and comes standard with 10 feet of cable.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 91725 | Load Cell,SPT RLSP4-7kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91726 | Load Cell,SPT RLSP4-10kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91727 | Load Cell,SPT RLSP4-15kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91728 | Load Cell,SPT RLSP4-20kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91729 | Load Cell,SPT RLSP4-30kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91730 | Load Cell,SPT RLSP4-50kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91731 | Load Cell,SPT RLSP4-75kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 | |
| 91732 | Load Cell,SPT RLSP4-100kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted | List Price: $235.00 |
