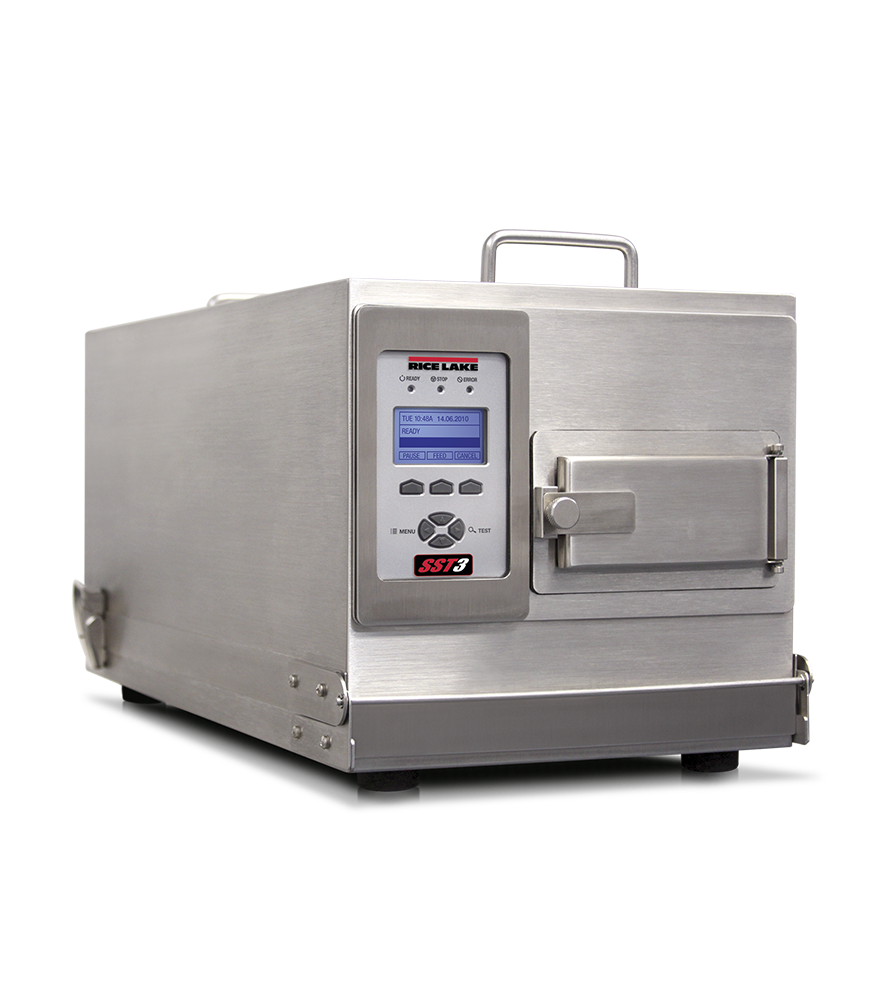

Rice Lake SST3® Washdown Printer (Discontinued)

  • IP69K rating
  • Washdown 304 stainless steel enclosure
  • Electronics protected from splashes
  • Direct thermal
  • 203 dpi printhead
  • Label length detection
  • Real-time clock
  • USB, serial or parallel communications
  • Line mode

Approvals

Some approval documents are available to view by clicking the icons below.

UL Listed CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Print Speed:
2 in to 10 in per second
(51 mm to 152 mm)

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 in to 3.0 in
(38 mm to 76.2 mm) cores.

Bar Code Modulus:
5 mil to 55 mil “X” dimension in picket fence or ladder orientations

Media Width:
0.75 in to 4.65 in (17 mm to 118 mm)

Media Type:
Roll fed, die-cut or continuous labels;
perforated or continuous tag/ticket stock

Print Length:
0.25 in to 99 in (6 mm to 2475 mm)

Media Thickness:
0.0025 in to 0.0100 in (0.0635 mm to 0.254 mm)

Ribbons (Optional):
Industry standard ribbon widths:
1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5-digit addendums, Code 93, Postnet, UCC/Ean Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417, RSS

Graphics Support:
PCX, BMP and IMG files

Memory:
16 MB RAM (8 MB FLASH)
3 MB user available

Rating/Material:
IP69K/Stainless Steel 304

Interfaces:
USB, Centronics® Parallel port,
RS-232 (DB-9F) at 600 to 38,400 BPS

Power Source:
Auto-sensing 103.5 to 126.50 or 207 to 253 VAC at 47 to 63 Hz; US or European power cord

Operating Temperature:
40° F to 95° F (4° C to 35° C)

Dimensions:
(H x W x L):27 x 14 x 13.6 in
(686.8 x 355.6 x 345.4 mm)

Weight:
70 lb

Approvals:
UL listed, CE marked

Processor:
Dragon ball, 150 MHz

Warranty:
One-year limited warranty
One-year or 1-million linear inches on original print head. 90 days on replacement print head

Resources / Downloads

Title Version Revision Download Email Category Archived
Rice Lake SURVIVOR SST3 Technical Manual A Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Rice Lake SURVIVOR SST3 Replacement Parts Catalog Page Download Email

Title View Download Email Category
Label Printing Explained View Download Email Printers
Survivor SST3 Printer: Introduction View Email Printers
Survivor SST3: Features View Email Printers
Survivor SST3: Applications View Email Printers

Parts

No parts found for this product

Options

Misc Options

Part # Description List Price Cart
111121 Kit,SST Printer Heater 115 VAC Includes Heater, Fuse Holder, 2 Amp Fuse, 5 Nuts, Wire Harness and Installation Instructions

List Price: $535.00

111872 Kit,SST Printer Heater 230VAC Includes Heater, Fuse Holder, 1 amp Fuse, 5 nuts, Wire Harness and Installation Instructions

List Price: $535.00

76729 Printer OPT,Thermal Transfer, M Class Mark II

List Price: $100.00

76732 Printer OPT,Present Sensor, M Class

List Price: $135.00

52412 Printer OPT,Network Connectivity XL E-4203, E-4205e, M Class

List Price: $520.00

35664 Label,Pre-Saturated Cards 4x6 25/Box for 4in Wide Printers

List Price: $60.00

93181 Film,Printhead Cleaning 4IN Wide, 3/Box

List Price: $21.50

76734 Printer OPT,M-4206 Manual Programmers Manual

List Price: $135.00

77562 LIT,Manual M-4206 Operator Manual

List Price: $26.50

109181 Manual,Service SST3

List Price: $15.75

103372 Card,Internal Ethernet M-4206 and M-4210 Models produced after 11/12/07

List Price: $265.00

113764 Kit,Wireless Antenna for SST3 Printer Includes 103373 Wireless Card

List Price: $990.00

103374 Card,USB HOST, LAN and Wireless card, M-4210 Models 13 and Wireless card

List Price: $550.00

Cables

Label Stock/Ribbon (W x L)

Maintenance & Replacement Components

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
