Rice Lake VS-31 Dual-ramp Companion Animal Scale

  • Large LCD display
  • Large 1-inch LCD display
  • Two wheels for portability
  • Dual ramp
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • Serial and USB communication port
  • Tare function
  • Hold function
  • Factory calibrated

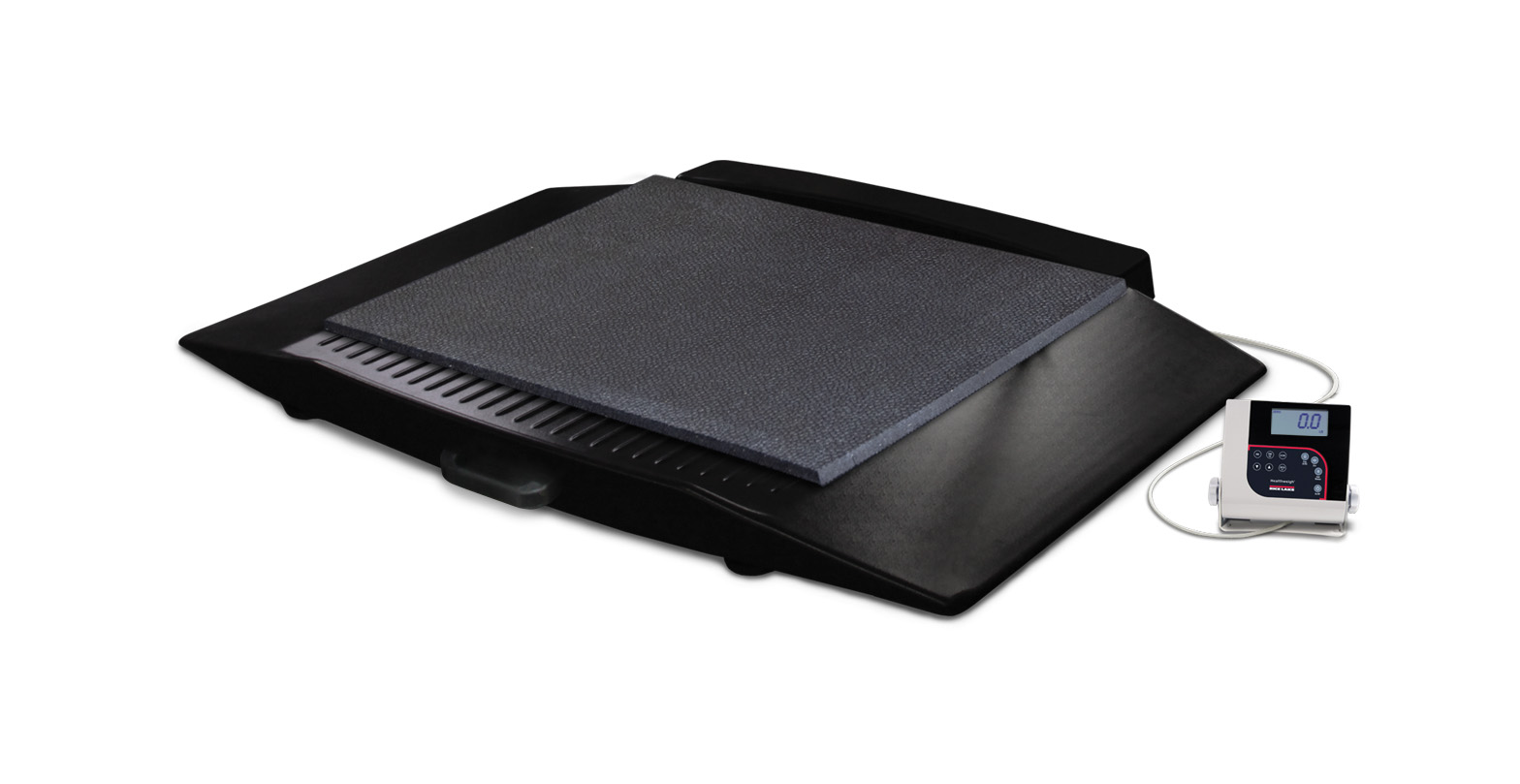

Rice Lake VS-31 Dual Ramp Veterinary Scale

The Rice Lake VS-31 is a digital vet scale that features a dual-ramp platform which allows high capacity and accurate weighing for pets. Convenient keypad tare reduces errors and increases efficiency. This sturdy scale is easily transported on two heavy-duty rear wheels to any location and can be used for small farm animals including ponies, sheep and pigs because of its capacity of 1,000 pounds or 450 kilograms. Two ramps allow for large animals to be easily led on and off this veterinary floor scale.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions Without Ramps:
(L × W × H)
29.50 × 32.00 × 2.40 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Temperature:
Operating:
50 °F to 104 °F (14 °C to 40 °C)

Cable Length:
7 ft (2.1 m) cable between scale base and indicator

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Warranty:
Two-year limited

Dimensions
  Inches Centimeters
A 48.5 123.2
B 32.0 81.3
C 2.4 6.1
D 9.3 23.6
E 38.0 96.5

Shipping Dimensions and Weight
Length (in) Width (in) Height (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
53 45 7 86 121 121

Resources / Downloads

Title View Email Category Type
Key Features of Animal Scales Email Veterinary and Small Animal Articles
The Importance of Animal Scale Calibration View Email Veterinary and Small Animal Articles
Animal Weight and Medication Dosing View Email Equine Scales|Veterinary and Small Animal Articles

Title Download Email
Rice Lake VS-31 Vet Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
350-10 Series Digital Wheelchair Scale Operator Manual E Download Email Health Scales|Wheelchair Scales No
350-10 Series Digital Wheelchair Scale Technical Manual F Download Email Health Scales|Wheelchair Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales C Download Email Health Scales No

Title Download Email
350-10-7, 350-10-8 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
204397 Scale, Rice Lake VS-31 Platform Scale, 1000lb(450kg) x 0.2lb(100g) with (2) 9.25in. Ramps includes 6 AA size Alkaline batteries

List Price: $1,935.00

Options

Part # Description List Price Cart / Quote

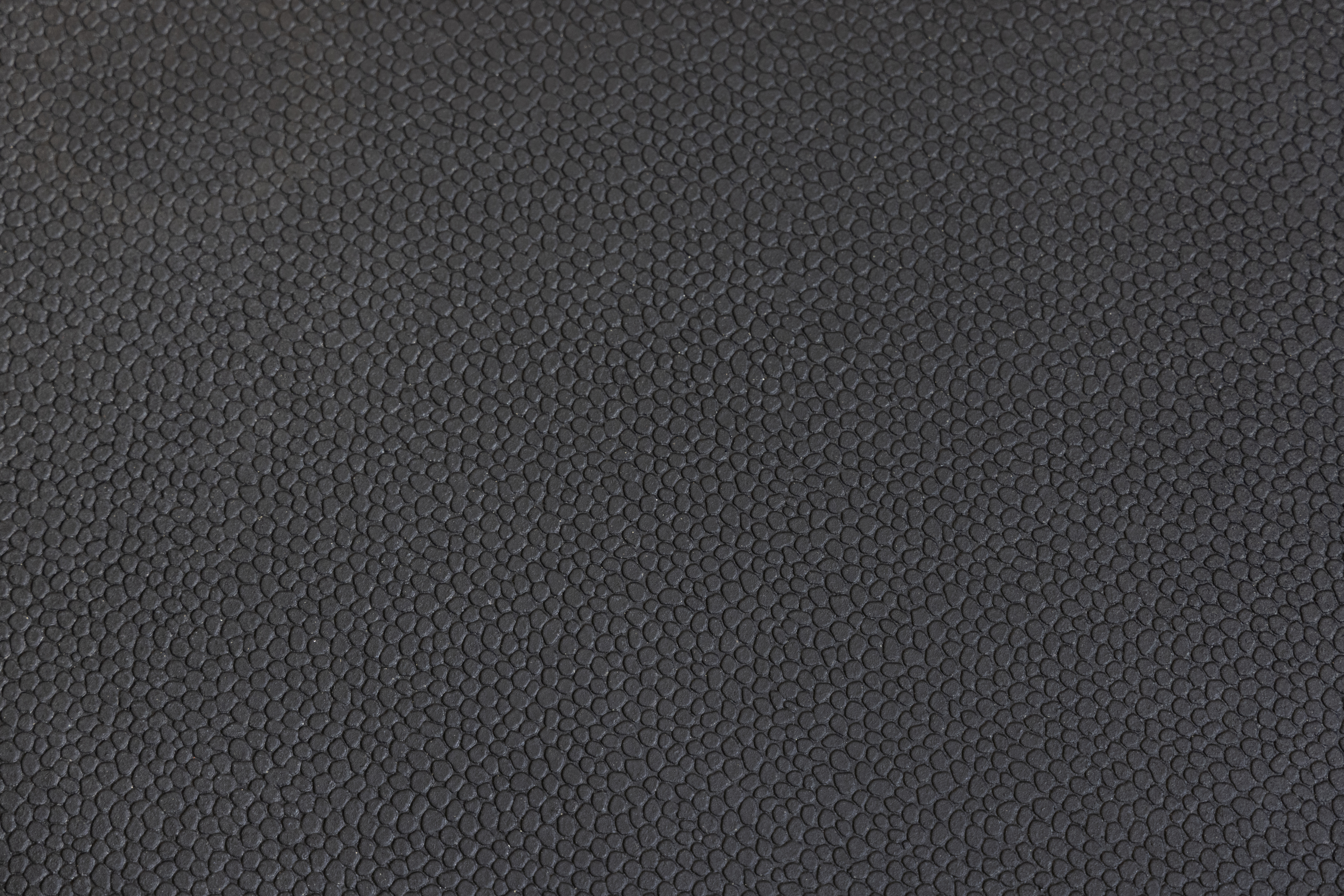

220767 Mat, Heavy Duty 31in x 23.5in x 0.5in with one 45 degree beveled edge designed for use with VS-34, VS-30

List Price: $70.00

79074 Cable, USB 6ft USB-A (male) to USB-B (male)

List Price: $35.00

217091 Cable Assy, Communication, DB9 Female to RJ45 Female, 4 Conductor 26 AWG, PVC Jacket

List Price: $25.00

186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
