Product PDF

Rice Lake VS-37 In Floor Large Animal Scale

  • Package includes scale, pit frame, handrail and indicator
  • Push-button LCD display
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • Communication via USB
  • Tare function
  • Hold function
  • Factory calibrated
Request Quote

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65
SD-1150-WP Dialysis Wheelchair Scale

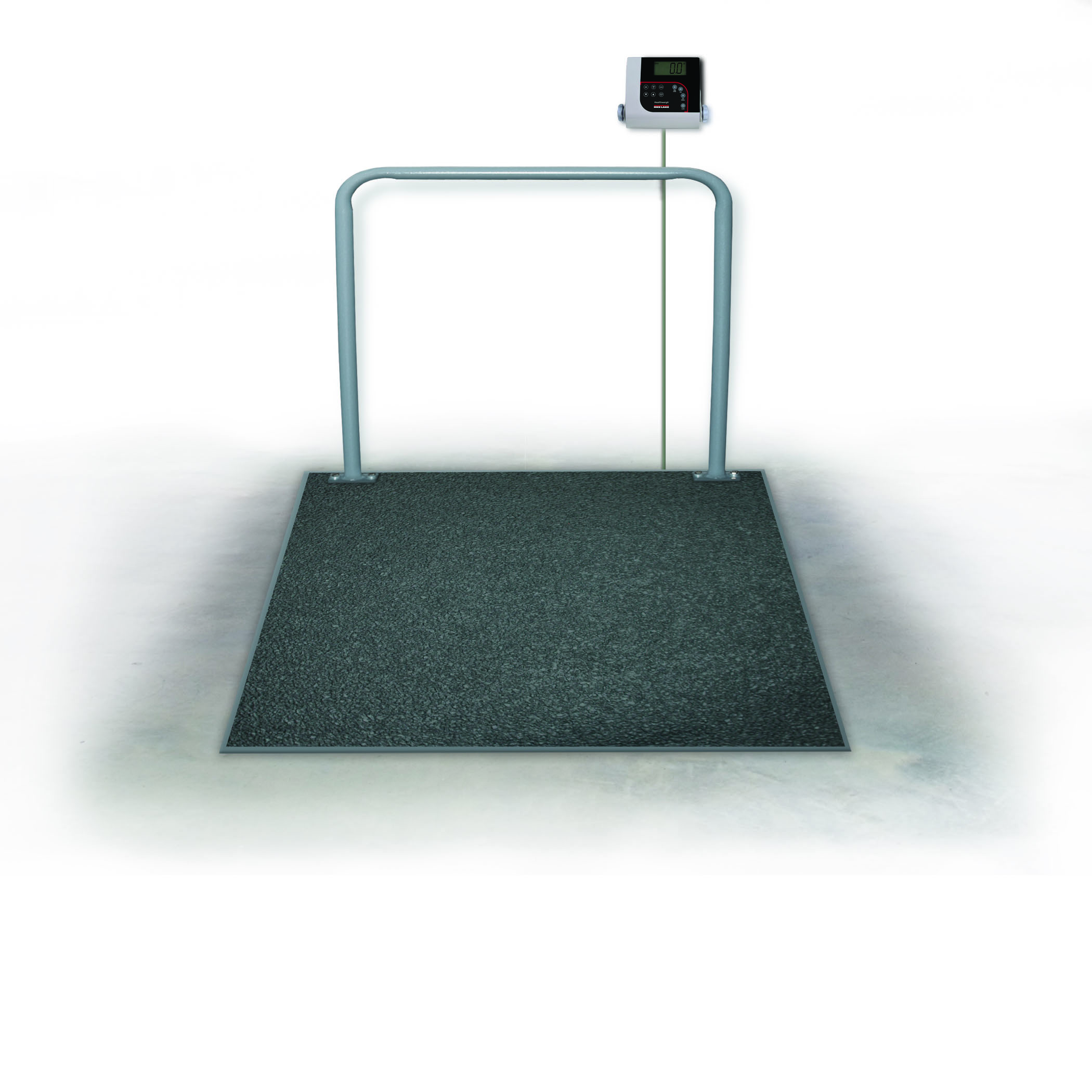

Rice Lake VS-37 In-Floor Veterinary Scale

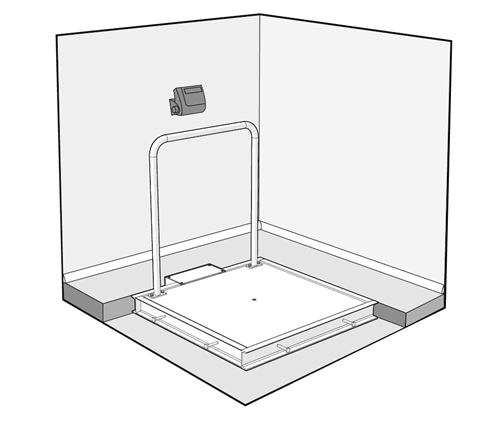

The Rice Lake VS-37 is an in-floor large animal scale that is designed to be pit-mounted flush with the floor for multi-purpose weighing. This animal scale is ideal for weighing sheep, goats and other large animals because of its capacity of 1,000 pounds or 450 kilograms. Keypad tare reduces errors and increases efficiency while weighing a variety of animals.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions:
(W × L × H) 36 × 36 × 3 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50 °F to 104 °F (14 °C to 40 °C)

Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited

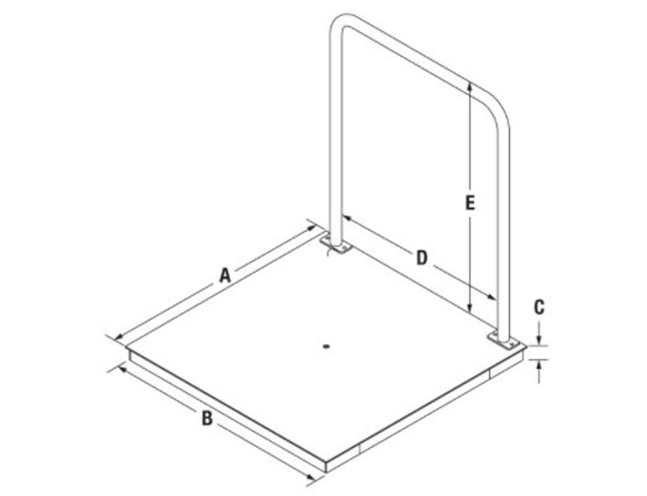

Dimensions
  Inches Centimeters
A 36.0 91.4
B 36.0 91.4
C 3.0 7.6
D 31.5 80.0
E 37.0 94.0



Shipping Dimensions and Weight
Length (in) Width (in) Height (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
40 39 15 246 169 246

Resources / Downloads

Title View Email Category Type
Key Features of Animal Scales Email Veterinary and Small Animal Articles
The Importance of Animal Scale Calibration View Email Veterinary and Small Animal Articles

Title Download Email
Rice Lake VS-37 Vet Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Summit SD-1150-WP Dialysis Wheelchair Scale Operation Manual A Download Email Health Scales No
Summit SD-1150-WP Dialysis Wheelchair Scale Technical Manual D Download Email Health Scales No

Title Download Email
SD-1150-WP Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Parts

Part # Description List Price Cart
204402 Scale, Rice Lake VS-37 1000LB Package (Scale, Handrail, Indicator, Pit Frame) 36IN(W)X 36IN(L) X 3IN(H) With Smooth Top Anti Slip Rubber Surface, Side Access Junction Box, 36IN(H)X 30IN(W) Steel Painted Handrial And Mounting Hardware. Indicator. 10FT Homerun Cable With Connector For Indicator. 36 in. x 36 in. Pit frame. Includes 6 AA size Alkaline batteries.

List Price: $2,255.00

Options

Part # Description List Price Cart
115655 Adapter,120-240VAC/9 VDC

List Price: $43.00
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $25.00
102508 Power Cord, Interchangeable, 220VAC AC, 9VDC 500MA, Healthweigh (includes EU plug)

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
