RL-350-5 Single-ramp Portable Bariatric Wheelchair Scale
- Integrated handles and wheels for easy transport
- Single ramp
- Large, stable scale base
- Non-slip platform
- Large 1-inch LCD display
- Motiontrap™ movement compensation technology
- Unit of measure toggle or locking
- EHR capable
- USB or Bluetooth® BLE 4.0 available, part number selectable
- Tare function
- Hold function
- BMI (body mass index) function
- 10 ft (3.1 m) cable between scale base and indicator
Same-day Shipping Available
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL-350-5 Single-ramp Portable Bariatric Wheelchair Scale - 34 INCHES WIDE

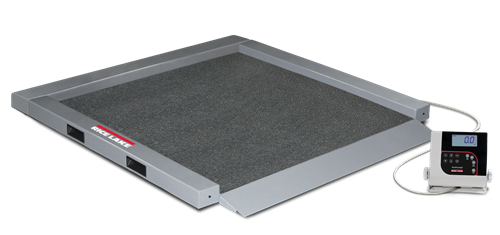

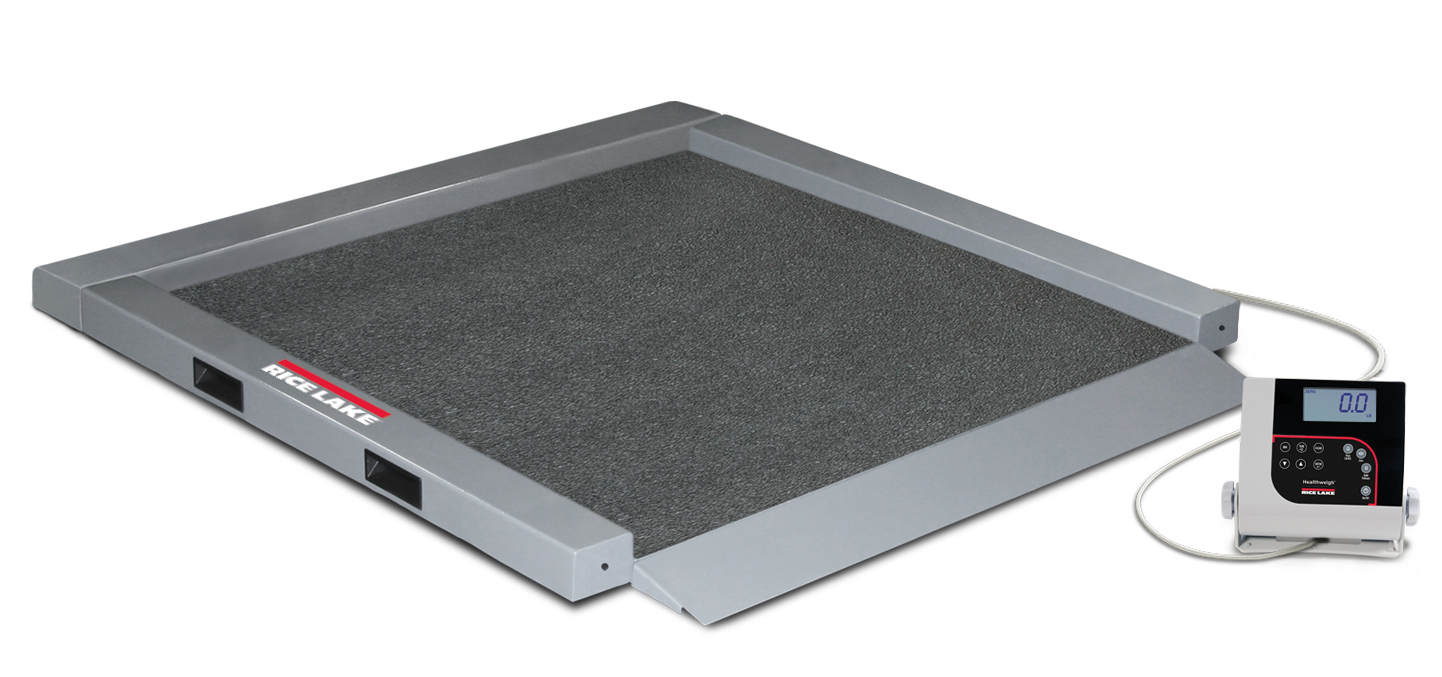

Rice Lake's RL-350-5 single-ramp portable bariatric wheelchair scale allows high capacity, accurate weighing for patients who are unable to be transported to a scale. Featuring a 34-inch scale base with single ramp, wheelchairs can easily be wheeled on and off the scale. Convenient keypad tare reduces errors and increases efficiency. For added safety, this scale features an anti-slip rubber surface and raised edges on the weighing platform.
RL-350-5 Specifications
|
Capacity: Platform Dimensions Without Ramps: Power: |
Battery Type: Battery Use: Operating Temperature: |
Display: Approvals: Warranty: |

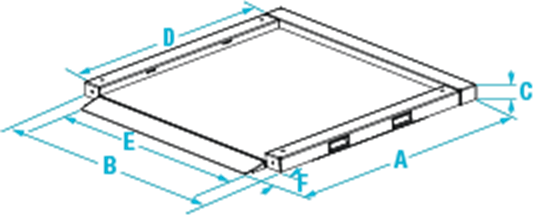

RL-350-5 Dimensions
| Dimensions | ||
|---|---|---|
| Inches | Centimeters | |
| A | 41.0 | 104.1 |
| B | 40.0 | 101.6 |
| C | 2.2 | 5.6 |
| D | 34.0 | 86.4 |
| E | 34.0 | 86.4 |
RL-350-5 Shipping Weight
| Shipping Weight | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Model # | L (in) | W (in) | H (in) | Package Wgt. (lb) | Dim Wgt. (lb) | Shipping Wgt. (lb) |
| 150703 | RL-350-5 | 43 | 43 | 11 | 162 | 147 | 162 |
| 205973 | RL-350-5BLE | 43 | 43 | 11 | 162 | 147 | 162 |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| The Importance of Medical Scale Calibration | View |  Email |
Calibration Weights|Health Scales | Articles |
| How Often Should You Calibrate A Medical Scale? | View | Email |
Health Scales | Articles |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | View | Email |
Health Scales | Articles |
| How to Clean Health Scales | Email |
Health Scales | Articles |
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| RL-350 Series Portable Bariatric Wheelchair Scales Operation Manual | D | Download | Email |
Health Scales | No | |
| RL-350 Series Portable Bariatric Wheelchair Scales Technical Manual | B | Download | Email |
Health Scales | No | |
| Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales | B | Download | Email |
Health Scales | No | |
| Bluetooth Setup Instructions for Rice Lake Medical Scales | A | Download | Email |
Health Scales | No |
Technical Bulletins
| Title | View | Category | |
|---|---|---|---|
| How Often Should You Calibrate A Medical Scale? | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules |
| Medical Scale Maintenance | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
| Maintaining Medical Scales: 5 Ways to Care for Your Scale | Download | Email |
Health Scales|Home Health Scales|Mechanical Health Scales |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Accurate Patient Weighing With Rice Lake | View | Download | Email |
Health Scales |
| Health Scale Product Line Overview | View | Download | Email |
Health Scales |
| Calibrating a Rice Lake Medical Scale | View | Download | Email |
Health Scales |
| Locking Units of Measure on Rice Lake Medical Indicators | View | Download | Email |
Health Scales |
| How to Measure a Wheelchair to Find the Right Size Scale | View | Download | Email |
Wheelchair Scales |
| Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators | View | Download | Email |
Accurate Patient Weighing With Rice Lake
Health Scale Product Line Overview
Calibrating a Rice Lake Medical Scale
Locking Units of Measure on Rice Lake Medical Indicators
How to Measure a Wheelchair to Find the Right Size Scale
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 150703 | Scale,Wheelchair Model RL-350-5 1000lb(450kg)x0.2lb(0.1kg) 34inx34inx1.75in single ramp and stop, anti-slip surface, indicator and 6 AA size Alkaline batteries |
List Price: $2,130.00 |
|
| 205976 | Scale,Wheelchair Model RL-350-5BLE 1000lb(450kg)x0.2lb(0.1kg) 34inx34inx1.75in single ramp and stop, anti-slip surface, indicator and 6 AA size Alkaline batteries |
List Price: $2,365.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 133077 | Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved |
List Price: $25.00 |
|
| 102508 | Adapter,220VAC AC Healthweigh 9VDC 500MA |
List Price: $30.00 |
|
| 81076 | Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson |
List Price: $445.00 |
|
| 186830 | Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45 |
List Price: $69.00 |
