RL-DBS Digital Baby Scale

Request Quote/Same-day Shipping Available

  • Large 1- inch LCD display
  • Unit of measure locking
  • Recall function to view last weight
  • Automatic shut-off for long battery life
  • Built-in measuring tape 0-22.5 in (0-57 cm)

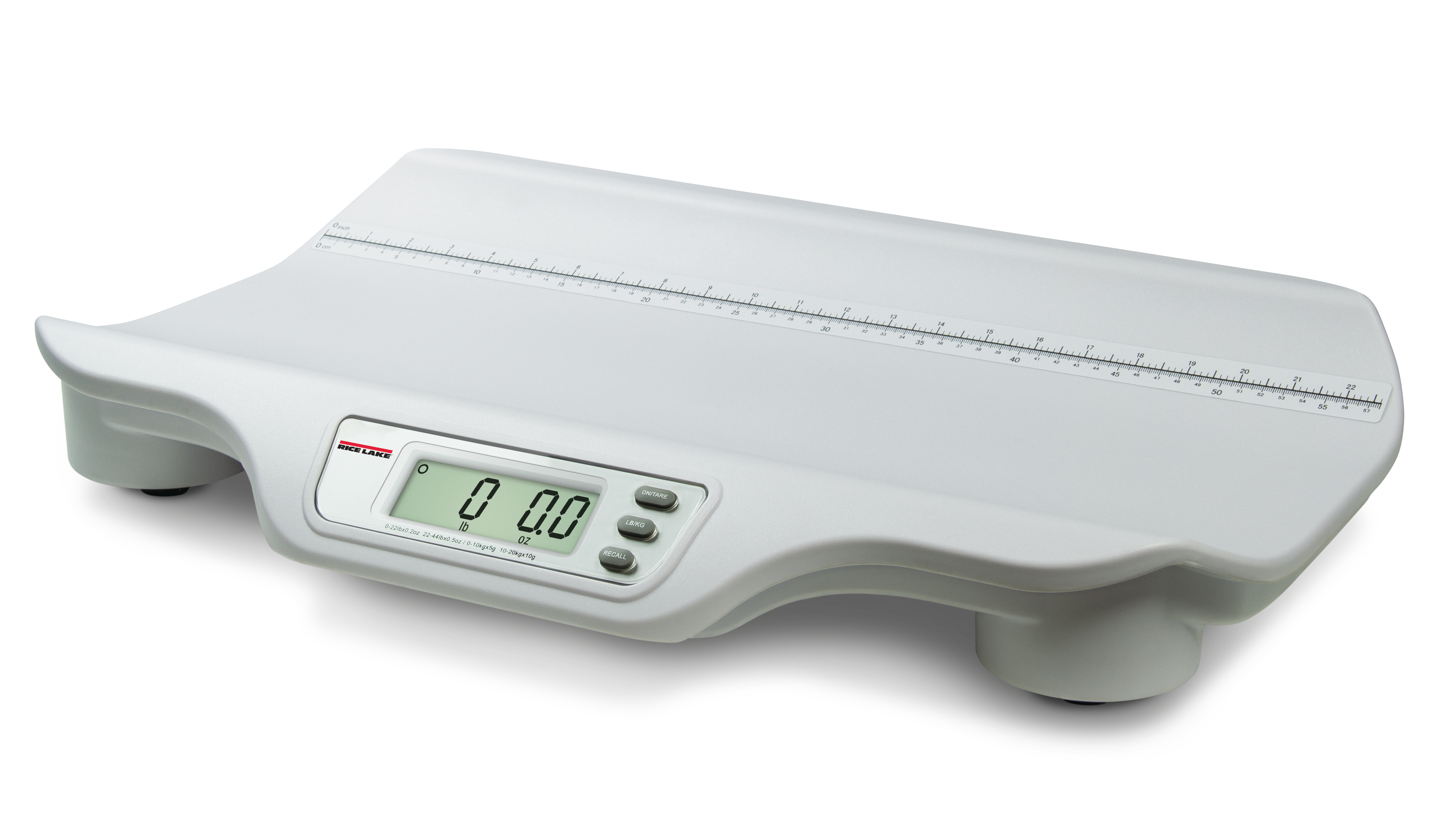

RL-DBS Digital Baby Scale

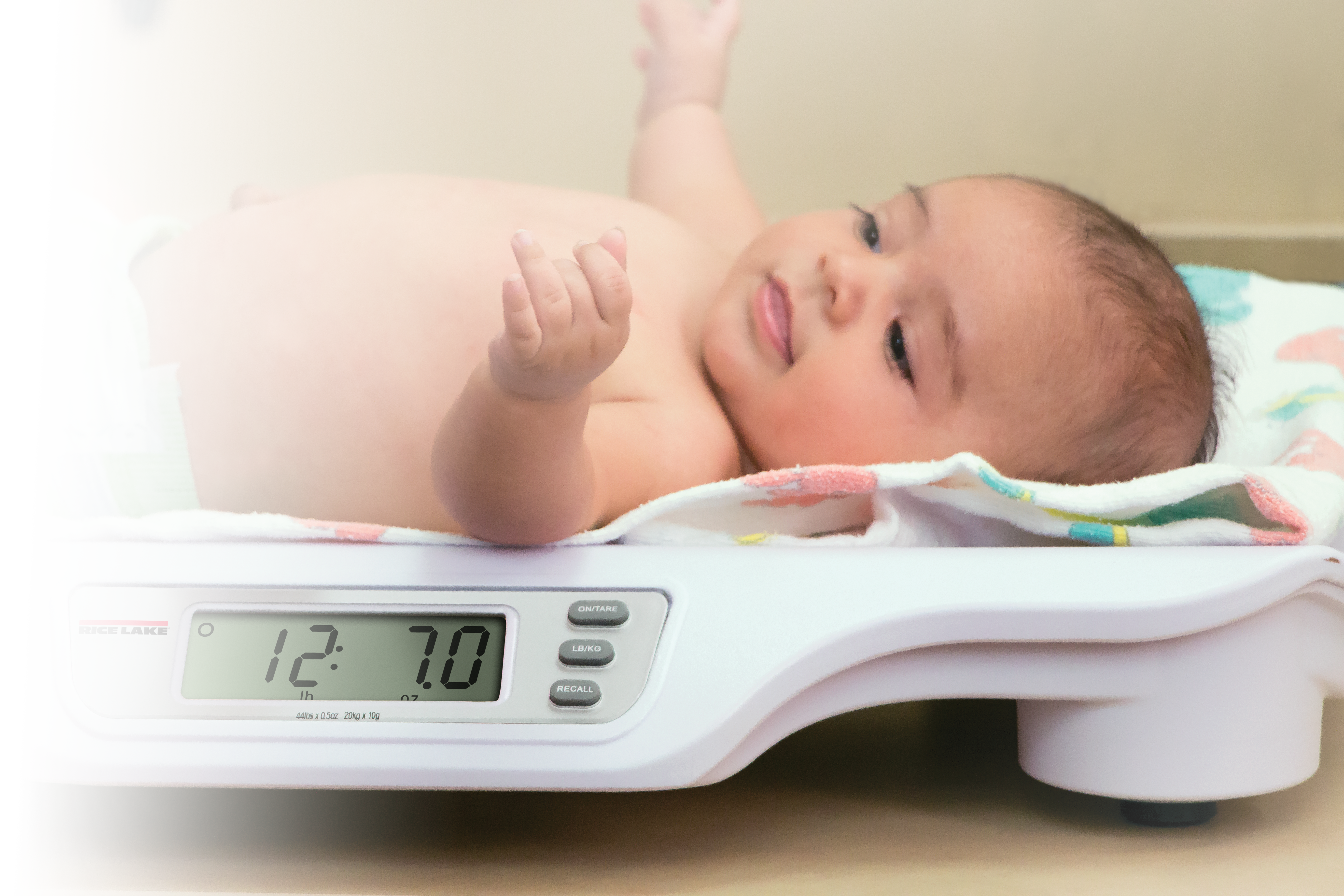

The RL-DBS digital baby scale accurately weighs and measures even the most active babies. Simply place the baby on the scale, remove the baby and recall its weight by pressing the Recall key. The RL-DBS is portable, extremely durable, and easy to clean and maintain.

Capacity:
44 lb x 0.5 oz (20 kg x 10 g)

Power:

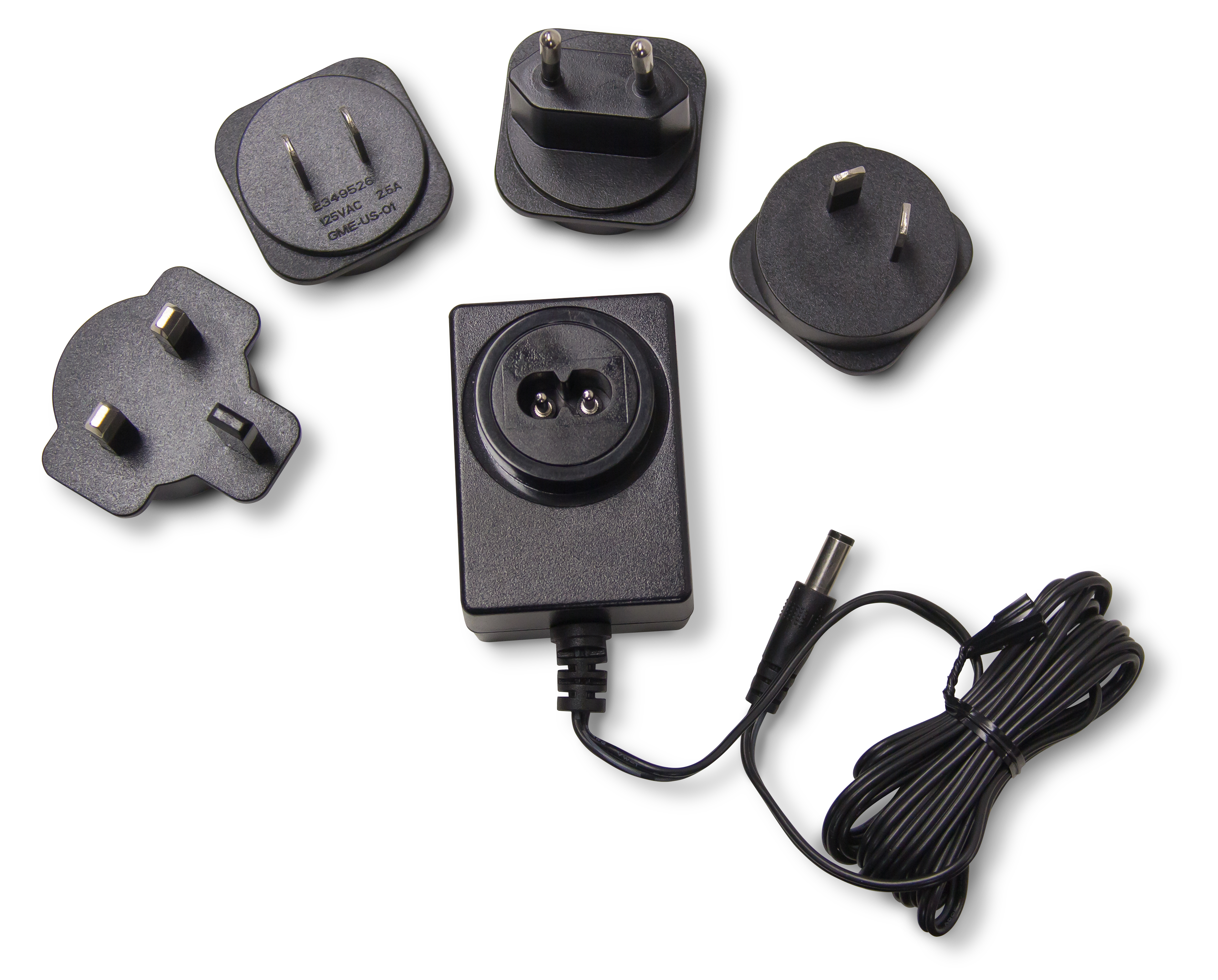

Four AA alkaline batteries (included) or AC adaptor (included)

Battery Type
Four AA alkaline (included)

Approvals:
AC adaptor: UL and C-UL

Warranty:
Two-year limited warranty

Dimensions
  Inches Centimeters
A 3.9 10.03
B 15.0 38.0
C 3.1 7.93
D 23.6 60.0
E 11.0 27.9



Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
107423 RL-DBS 120V 27 18 7 10 21 21
112571 RL-DBS 230V 27 18 7 10 21 21





Resources / Downloads

Title Download Email
RL-DBS Digital Baby Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Rice Lake Digital Baby Scale RL-DBS Operation Manual F Download Email Health Scales No
Rice Lake Digital Baby Scale RL-DBS Technical Manual F Download Email Health Scales No
RL-DBS Bascula Digital de Bebes Instrucciones de Operacion Download Email Health Scales No
RL-DBS Bascula Digital de Bebes Instrucciones Técnicas y de Operacion Download Email Health Scales No
RL-DBS Báscula Digital de Infante Manual de Operación F Download Email Health Scales No
RL-DBS Báscula Digital de Infante Manual técnico F Download Email Health Scales No

Title Download Email
RL-DBS/RL-DBS-2 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Digital Baby Scales RL-DBS, RL-DBS-2 Collateral Wizard Request Download Email Health Scales|Pediatric Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales

Parts

Part # Description List Price Cart
107423 Scale, RL-DBS 44lb x 0.5oz (20kg x 10g) with 120V AC Adapter and 4 AA Alkaline batteries and measuring tape

List Price: $143.00

112571 Scale, RL-DBS 44lb x 0.5oz (20kg x 10g) with 230V AC Adapter and 4 AA Alkaline batteries and measuring tape

List Price: $143.00

Options

Part # Description List Price Cart

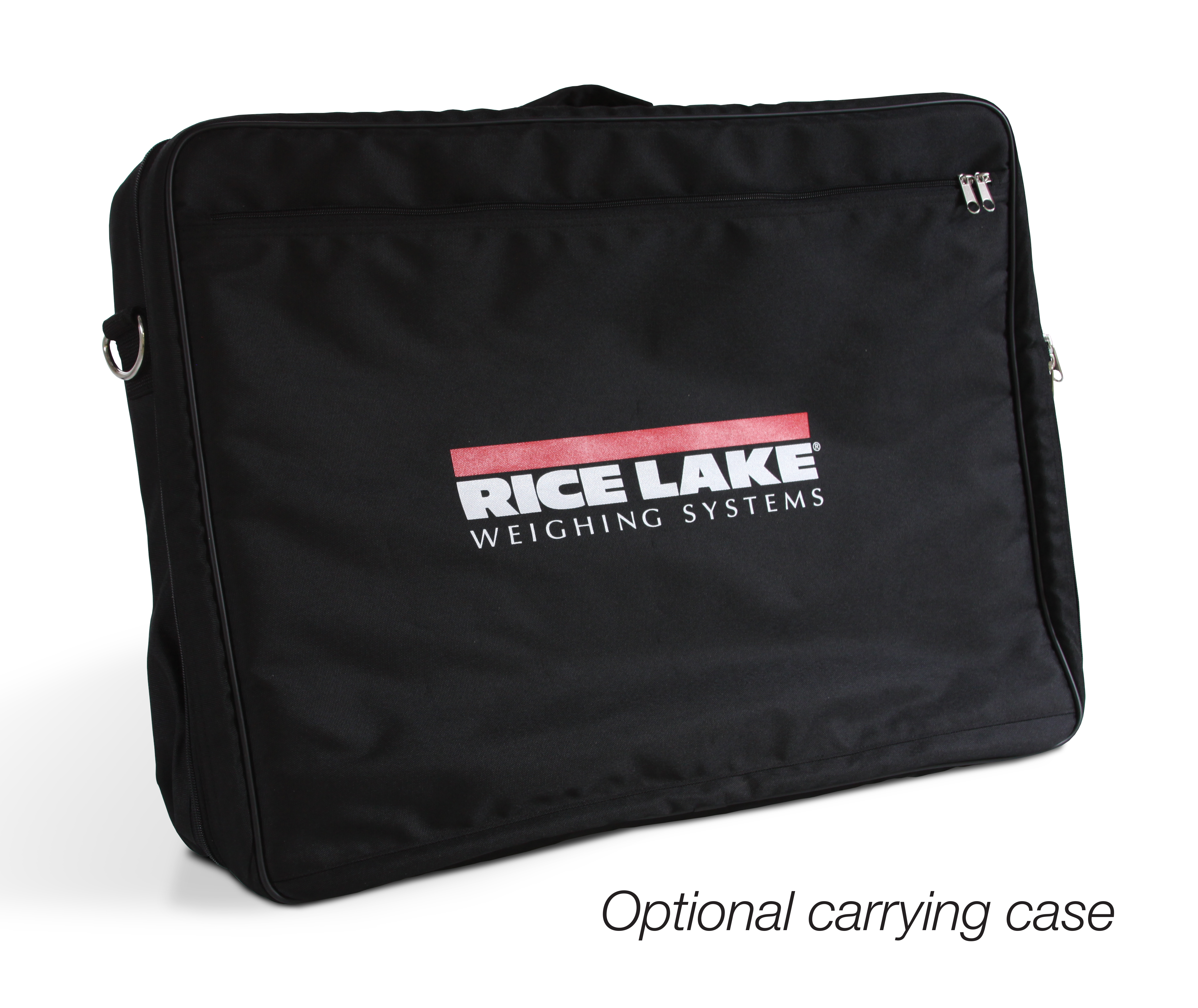

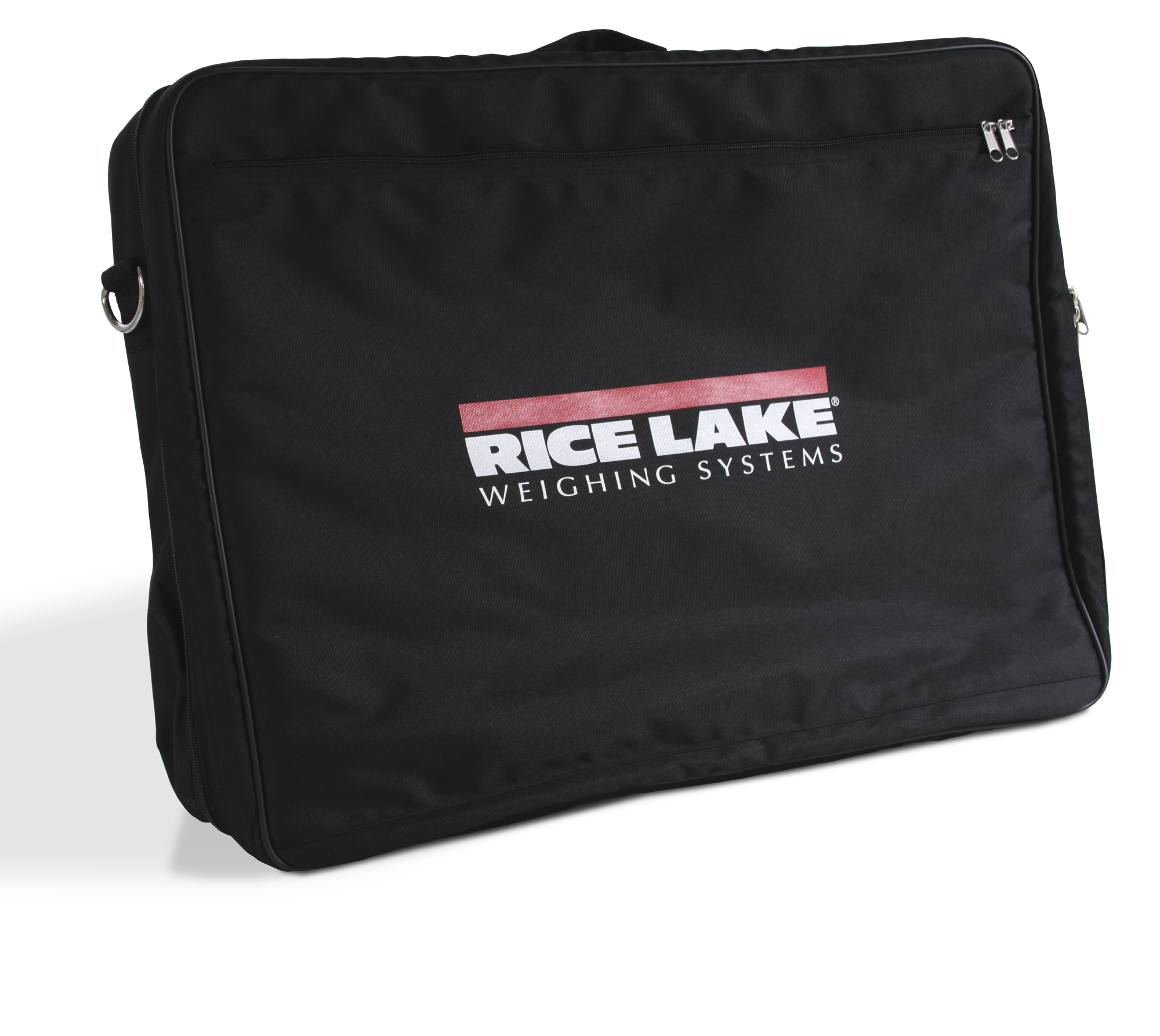

112570 Carrying Case Transport/Carrying Case for RL-DBS/RL-DBS-2 Digital Scale

List Price: $56.00

158463 Growth Chart, Birth to 36 months, Boy, contains 100 sheets

List Price: $26.00

158464 Growth Chart, Birth to 36 months, Girl, contains 100 sheets

List Price: $25.00

158465 Growth Chart, 2-20 years Boy, contains 100 sheets

List Price: $26.00

158466 Growth Chart, 2-20 years Girl, contains 100 sheets

List Price: $26.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC RL DBS

RL-DBS-2 Digital Baby Scale

Rice Lake's RL-DBS-2 dual-range digital baby scale allows for even the most active babies to be weighed accurately, safely and quickly.
