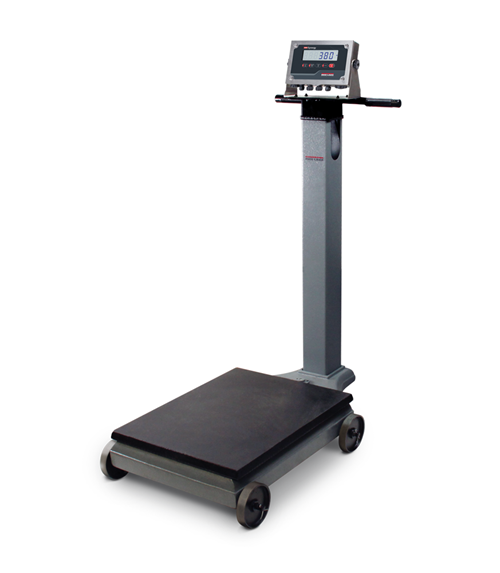

RL1200 EM Electromechanical Portable Beam Scale


  • NTEP Certified
  • 1,000 lb capacity
  • Heavy-duty wheels and handle for portability

380 Indicator

  • LCD display
  • Alkaline battery powered
  • Push-button and keyed tare
  • Two communication ports
  • Five tactile buttons
  • Configurable print formats


Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Classic Design, Proven Performance

Portable beam scales are well known for time-tested reliability and performance, and Rice Lake's RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability.

NTEP Certified and suitable for Legal for Trade applications, the RL1200 EM offers the added convenience of the 380 Synergy digital weight display. The battery-powered indicator lets users easily read weight values, zero, tare, toggle between units and transmit weight to an optional printer

Cast-iron platform, base and levers

Platform Dimensions:
(L x W)
24 × 18 in

1,000 lb

NTEP 93-004 Class III 2,000d

One-year limited

Batteries: 4 alkaline C-cell (not included)
Optional: 115/230VAC to 12VDC adapter

Battery Life:
100 hours with 1 x 350 ohm load cell, no backlight
45 hours with 4 x 350 ohm load cells, low backlight
20 hours with 8 x 350 ohm load cells, low backlight

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Six 1 in (25 mm) tall, LCD digits

5 tactile buttons

IP66, 304 Stainless steel

NTEP 21-051, Class III/IIIL, 10,000 d
Measurement Canada AM-6184
CE marked

Resources / Downloads

Title Download Email
RL1200 EM Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL1200 Installation and Operation Manual A Download Email Platform Scales|Floor Scales|Portable Beam Scale No

Title Collateral Wizard Request Download Email Category
RL1200 Series Portable Beam Scale Request Download Email Mechanical Scales

Title View Download Email Category
Mechanical Basics: Part 1 View Download Email Floor Scales|Mechanical Scales
Mechanical Basics: Part 2 View Download Email Mechanical Scales
Mechanical Basics: Part 3 View Download Email Mechanical Scales
Mechanical Basics: Part 4 View Download Email Mechanical Scales
MS-101 Mechanical Scale Training View Email Portable Beam Scale|Mechanical Scales


Part # Description List Price Cart
216112 Scale,RL1200EM Elect. Conversion with 380 Synergy Indicator,1000 x .5lb NTEP III, batteries and adaptor not included

List Price: $2,240.00


Part # Description List Price Cart
206433 Power Supply Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $54.00
