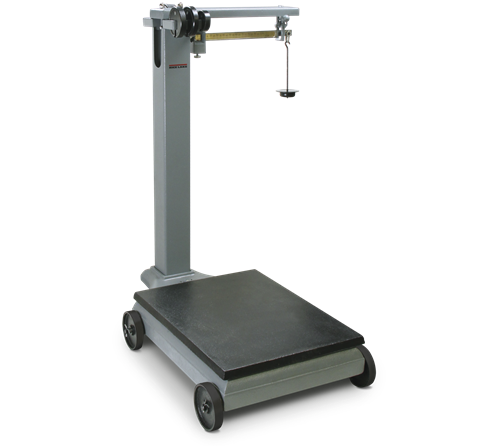

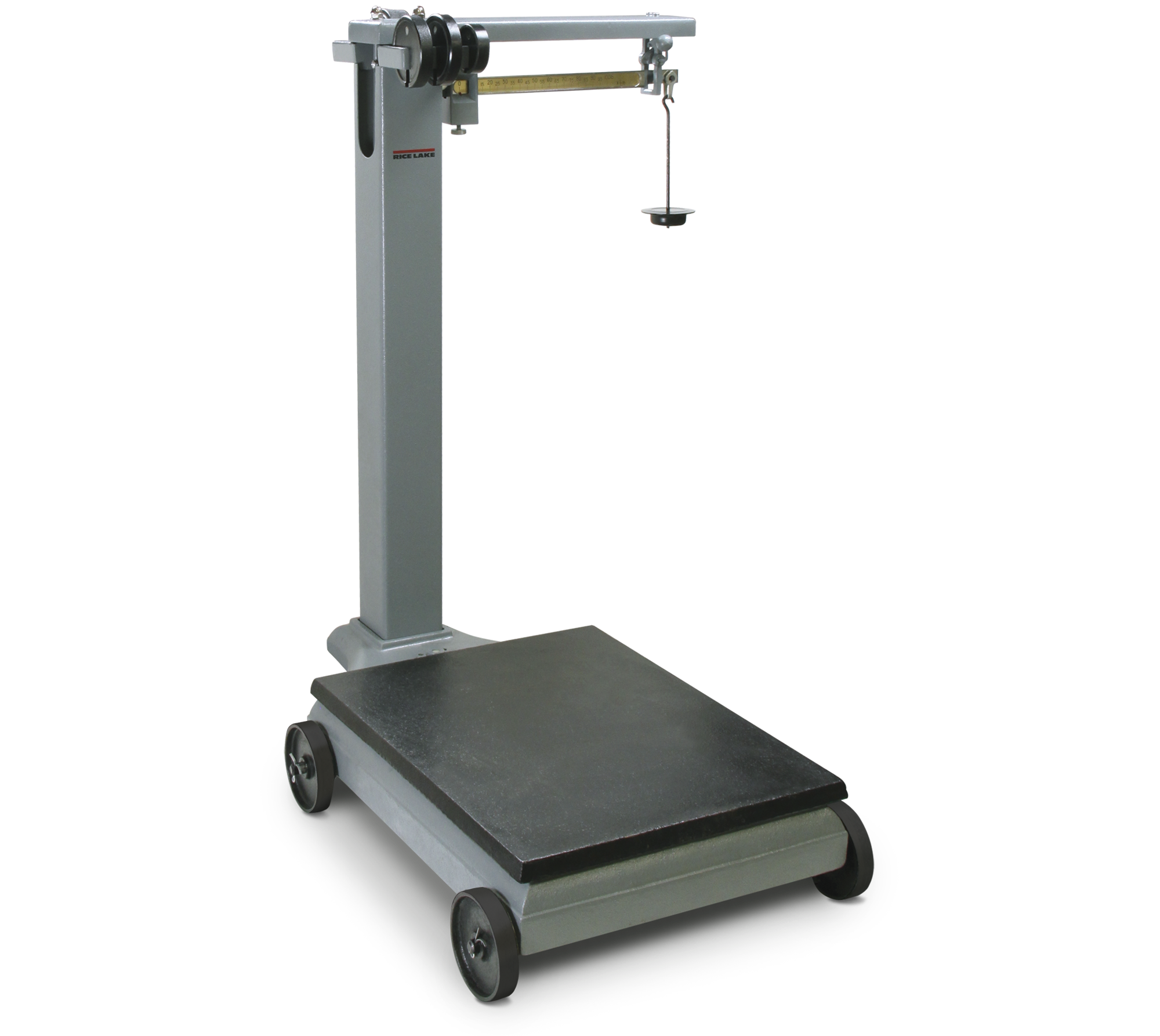

RL1200 Mechanical Portable Beam Scale

  • NTEP Certified
  • Cast iron construction
  • 1,000 lb or 500 kg capacity models available
  • Locking screw knob on poise
  • Slotted cast iron counterpoise weights, marked to scale capacity
  • Heavy-duty wheels for portability (wheels are not rated for IS environment)
  • Weights and hanger
  • Nickel plated steel beam with engraved brass insert


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Classic Design, Proven Performance

Portable beam scales are well known for time-tested reliability and performance, and Rice Lake's RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability.

Well suited to intrinsically safe applications or areas without access to electricity, this all-mechanical design is available in either metric or avoirdupois (lb). The avoirdupois model offers a capacity of 1,000 pounds and is also NTEP Certified, making it suitable for a wide range of commercial and Legal for Trade applications.

Cast-iron platform, base and levers

Steel locking screw provided

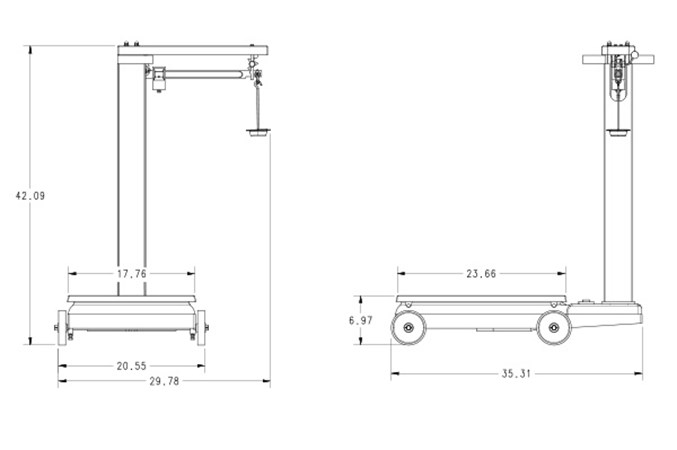

Platform Dimensions:
(L x W) 24 × 18 in

1,000 lb or 500 kg

NTEP Certified 93-004 Class III 2,000 d

One-year limited

Resources / Downloads

Title Version Revision Download Email Category Archived
RL1200 Installation and Operation Manual A Download Email Platform Scales|Floor Scales|Portable Beam Scale No

Title Download Email
RL1200 Portable Beam Scale Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
RL1200 Series Portable Beam Scale Request Download Email Mechanical Scales

Title View Download Email Category
Mechanical Basics: Part 1 View Download Email Floor Scales|Mechanical Scales
Mechanical Basics: Part 2 View Download Email Mechanical Scales
Mechanical Basics: Part 3 View Download Email Mechanical Scales
Mechanical Basics: Part 4 View Download Email Mechanical Scales
MS-101 Mechanical Scale Training View Email Portable Beam Scale|Mechanical Scales


Part # Description List Price Cart
157982 Scale,PORT Beam RL1200 1,000x0.5 lb NTEP III Cast Iron Painted

List Price: $995.00


Part # Description List Price Cart

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
