Complete Kit Includes
Three or four RL1600 cast iron compression mounts with RL75016 environmentally protected, double-ended shear beam load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 1,000 to 25,000 lb
Cast iron construction
Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
Double-ended beam design, center loaded

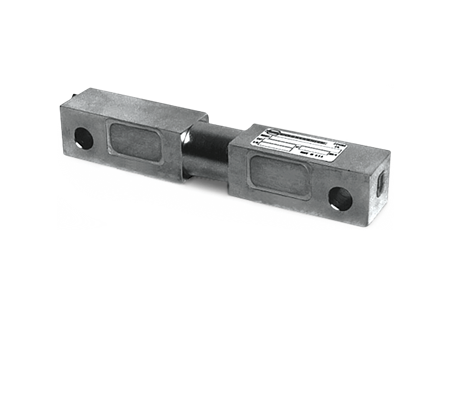

Compatible with VPG® Sensortronics® 65016 load cells, capacities (per module): 1,000 to 25,000 lb
Applications
Medium- to heavy-capacity tanks, bins and hoppers
Bulk material management
The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series kit is ideally suited for indoor and outdoor process control operations in the medium- to high-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17964 | Mount,RL1605CI 1,000- 5,000 lb Cast Iron Compression No Cell | List Price: $185.00 | |
| 17965 | Mount,RL1625CI 10,000- 25,000 lb Cast Iron Compression No Cell | List Price: $357.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 150844 | Shim, RL1600 1K-5K 4.00 x 4.00 x 0.0625 alloy steel shim for 2.75in C to C .56 dia holes | List Price: $2.00 | |
| 150845 | Shim, RL1600 1K-5K 4.00 x 4.00 x 0.125 alloy steel shim 2.75in C to C .56 dia holes | List Price: $3.00 | |
| 150846 | Shim, RL1600 1K-5K 4.00 x 4.00 x 0.250 alloy steel shim 2.75in C to C .56 dia holes | List Price: $3.00 |
