Complete Kit Includes

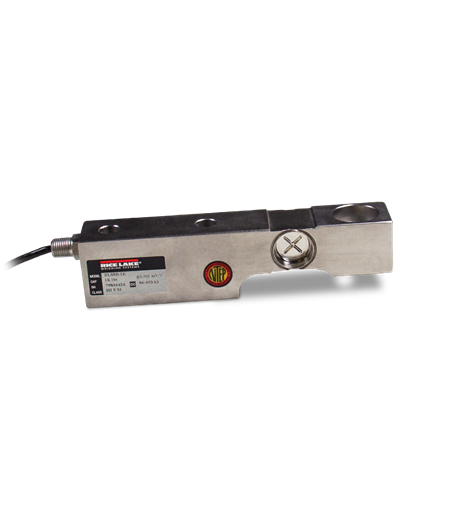

Three or four RL1900 stainless steel compression mounts with RLSSB single-ended beam load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities per module: 1,000 to 10,000 lb
NTEP Certified load cells
Stainless steel construction
Low-profile design
Center-pivoted, tension loading design
Welded-seal, stainless steel load cells, IP67
Self-checking, multi-directional movement
Easy load cell replacement
Load is suspended on a high-strength bolt instead of wire rope
Design incorporates spherical washers
Compatible with VPG® Revere SSB load cells
Applications
Medium-capacity tanks, bins and hoppers
Washdown or corrosive applications
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The RL1900 Series weigh module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1900 kit is ideally suited for tank, hopper and bin weighing operations with medium-range capacities. Each module combines multi-directional movement and self-checking capabilities. The welded seal stainless steel RLSSB load cell withstands washdown and corrosive environments that may present problems to other cells.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17841 | Mount,RL1905 1,000-5,000 lb SST Compression No Cell | List Price: $715.00 | |
| 17843 | Mount,RL1910 10,000 lb SST Compression No Cell | List Price: $775.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
