Complete Kit Includes
Three or four RL50219SS-TA assemblies

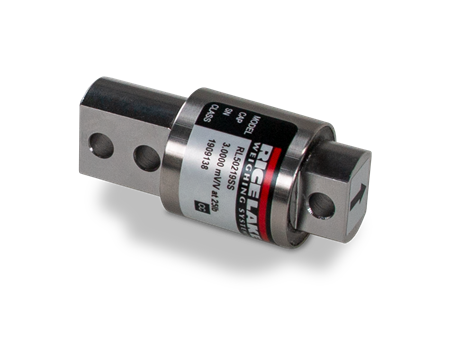

RL50219SS (50 to 250 lb), RL39123A (500 lb) stainless steel, environmentally protected, single-ended beam load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 50 to 500 lb
Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
Overload stop for 500 lb modules provides durability
Applications
Small tanks and hoppers
Conveyor/in-motion weighing
Small platform scales where minor shock loading may occur
The RL50219SS-TA weigh module kit provides a cost-effective alternative for your customers’ low-range weighing needs. A variety of features makes this kit easy to install and an exceptional choice for various indoor weighing applications where checking requirements are low. Environmentally protected load cells, neoprene isolation/compression mounts and other Rice Lake Weighing Systems components are the keys to this module’s outstanding performance.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 196829 | Mount Assy, RL50219-SS-TA 50 50lb SST Incl RL50219SS-50lb Load Cell | List Price: $710.00 | |
| 196830 | Mount Assy, RL50219-SS-TA 75 75lb SST Incl RL50219SS-75lb Load Cell | List Price: $710.00 | |
| 196831 | Mount Assy, RL50219-SS-TA 100 100lb SST Incl RL50219SS-100lb Load Cell | List Price: $710.00 | |
| 196832 | Mount Assy, RL50219-SS-TA 150 150lb SST Incl RL50219SS-150lb Load Cell | List Price: $710.00 | |
| 196833 | Mount Assy, RL50219-SS-TA 250 250lb SST Incl RL50219SS-250lb Load Cell | List Price: $710.00 | |
| 17954 | Mount ASSY,RL50210-500 500 lb SST Compression INCL RL39123-500 lb | List Price: $735.00 |
