Capacities (per module): 1,000 to 50,000 lb
Stainless steel construction
Low-profile design
Self-centering
Self-checking assembly
Offers 100% side load, 100% uplift, 150% safe load and 300% ultimate overload protection
Weighs accurately with up to 3° non-parallel load
Applications
Tank, hopper, or vessel weighing
High-temperature applications
Optional Features
Stainless steel top plates
Higher capacities available upon request

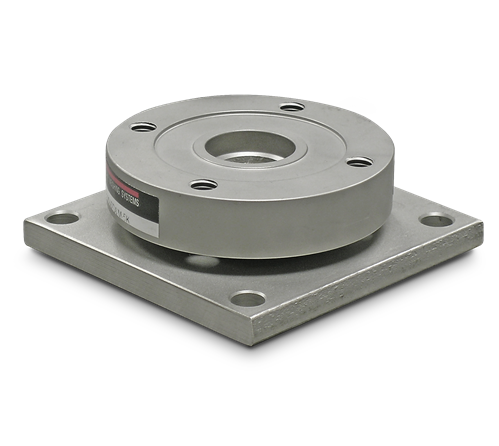

The RL9000TWM-HT weigh module is part of the popular RL9000TWM Series weigh module. The RL9000TWM-HT is a high-temperature version that is designed to operate in temperatures up to 400°F. The integral 25 ft of PTFE cable compliments the RL9000TWM-HT weigh module.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 117050 | Mount Assy,RL9000TWM-HT 1K 1000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C) High Temp | List Price: $1,300.00 | |
| 117051 | Mount Assy,RL9000TWM-HT 2.5K 2500lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C) High Temp | List Price: $1,300.00 | |
| 117052 | Mount Assy,RL9000TWM-HT 5000lb 25ft FEP Cable 3mv/v 700 Ohm SST WS 400F (200C) High Temp | List Price: $1,300.00 | |
| 117140 | Mount Assy,RL9000TWM-HT 10K 10,000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F(200C)High Temp | List Price: $1,285.00 | |
| 117053 | Mount Assy,RL9000TWM-HT 15K 15,000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C)High Temp | List Price: $1,300.00 | |
| 117054 | Mount Assy,RL9000TWM-HT 20K 20,000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C)High Temp | List Price: $2,075.00 | |
| 117055 | Mount Assy,RL9000TWM-HT 25K 25,000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C)High Temp | List Price: $2,075.00 | |
| 117056 | Mount Assy,RL9000TWM-HT 35K 35,000lb 25ft FEP cable 3mv/v 700 Ohm SST WS 400F (200C)High Temp | List Price: $2,075.00 | |
| 117057 | Mount Assy,RL9000TWM-HT 50K 50,000lb 25ft FEP cable3mv/v 700 Ohm SST WS 400F (200C) High Temp | List Price: $2,075.00 |
