Capacities (per module): 250 to 5,000 lb small envelope (SE)
Zinc-plated, mild steel construction or stainless steel
Self-checking, multi-directional movement
Design incorporates a ball and cup for self-centering
Will accommodate a standard shear beam 250 to 5,000 lb SE load cell that has a threaded load hole, such as the RL30000, RL39123, RL32018, RL32018S and RL32218S-HE
Applications
Light- to medium-capacity tanks and hoppers
Conveyors

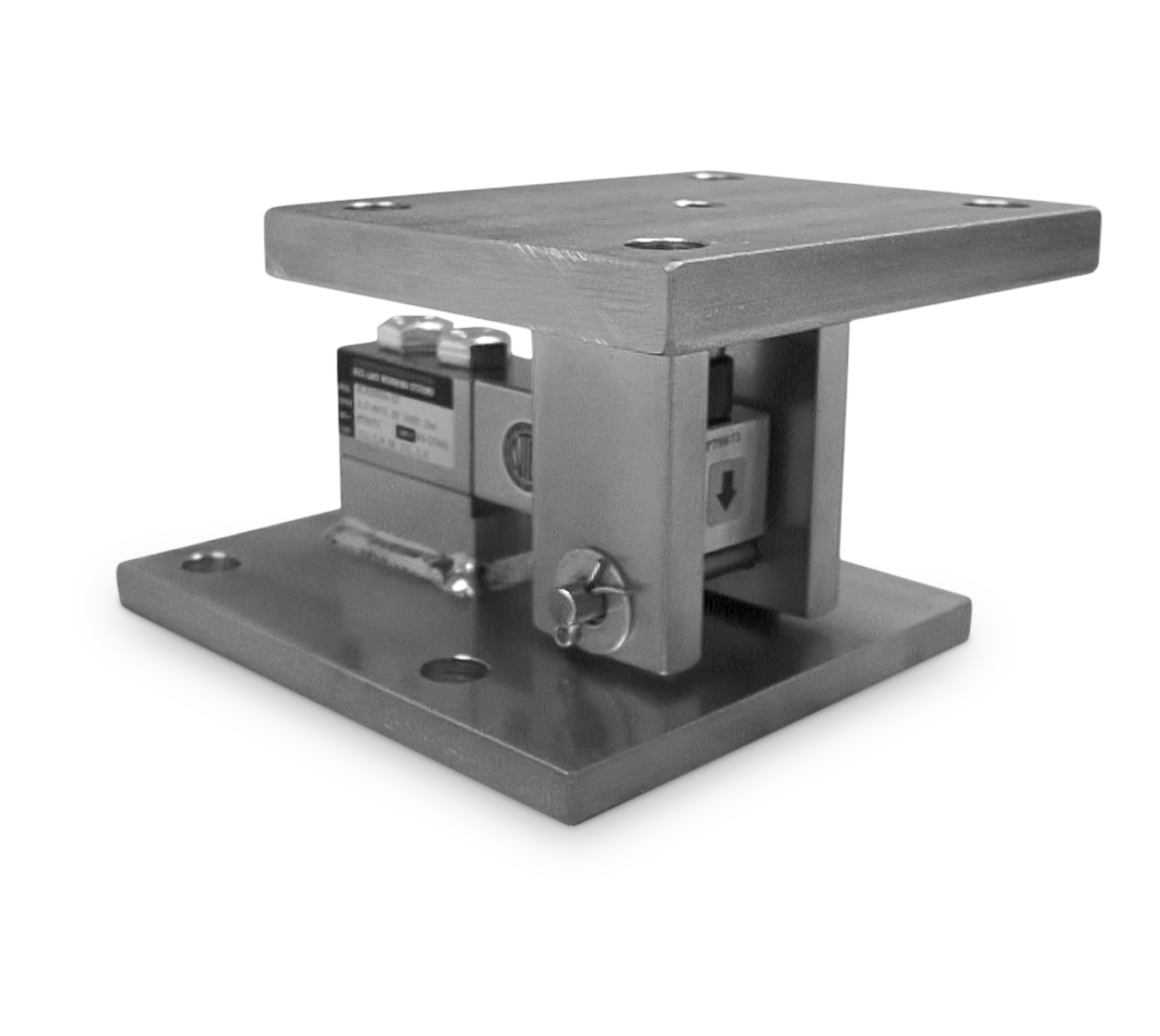

The RLBTM mount was specifically created to take advantage of the improved load introduction accuracy of the ball and cup design. This multi-purpose mount is ideal for both indoor and outdoor applications, and can be used with a variety of single-ended beam load cells. Available in both mild and stainless steel. This product offers superior accuracy at an affordable price. These assemblies are also quick and easy to install, making the RLBTM the perfect choice for your low-capacity, multi-purpose weighing needs.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 53059 | Mount ASSY,RLBTM Mild Steel Plated 250lb Thru 5KSE | List Price: $450.00 |
