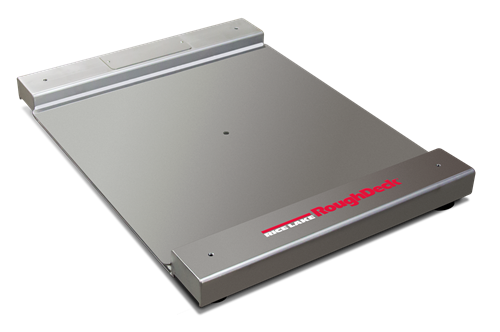

RoughDeck BDP Stainless Steel - Stationary Model
- Live siderails
- Top-access foot adjustment holes
- Four adjustable stainless steel SUREFOOT™ support feet
- Smooth top plate
- Stainless steel, IP66 load cells
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck BDP floor scales' low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.
RoughDeck BDP Stainless Steel Specifications
|
End Load Capacity: Cable Length: Scale Weldment: |
Junction Box: Welding: Threaded Eyebolt: |
Warranty (limited): Approvals: |
RoughDeck BDP Floor Scale Dimensions
| With access ramp | |||
|---|---|---|---|
| 30 x 31 in models | |||
| A | 30.0 in | D | 3.31 in |
| B | 31.0 in | G | 30.0 in |
| C | 40.0 in | H | 12.0 in |
| 36 x 37 in models | |||
| A | 36.0 in | D | 3.31 in |
| B | 37.0 in | G | 36.0 in |
| C | 46.0 in | H | 12.0 in |
| Note: 1 in = 25.4 mm | |||
| Distance from floor to top of center weighing surface: 1.625 in Distance from floor to bottom of weighing surface: 0.31 in |
|||
.
Resources / Downloads
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| RoughDeck BDP Scale and Portability Frame Demonstration | View | Download |  Email |
Floor Scales |
| RoughDeck Floor Scales - Durability and Performance to Last a Lifetime | View | Download | Email |
Floor Scales |
RoughDeck BDP Scale and Portability Frame Demonstration
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 77967 | Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb SST |
List Price: $4,110.00 |
|
| 77968 | Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb SST |
List Price: $4,110.00 |
|
| 77969 | Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb SST |
List Price: $4,230.00 |
|
|
77970
|
Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb SST
|
List Price: $4,230.00 |
Access Ramps
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 18778 | Mounting Plate Set, Roughdeck 1,000-10,000 lb SST |
List Price: $50.00 |
|
| 28740 | Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy |
List Price: $340.00 |
|
| 214614 | Backstop, Roughdeck BDP 30 Inches Wide SST Mounting Hardware Included |
List Price: $295.00 |
|
| 214615 | Backstop, Roughdeck BDP 36 Inches Wide SST Mounting Hardware Included |
List Price: $295.00 |
|
| Consult | Stainless steel deck with RL32218S-HE hermetically sealed IP69K stainless steel (cFMus approved) load cells and hardware |
Call for price |
|
| Consult | Stainless steel diamond treadplate safety deck |
Call for price |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
