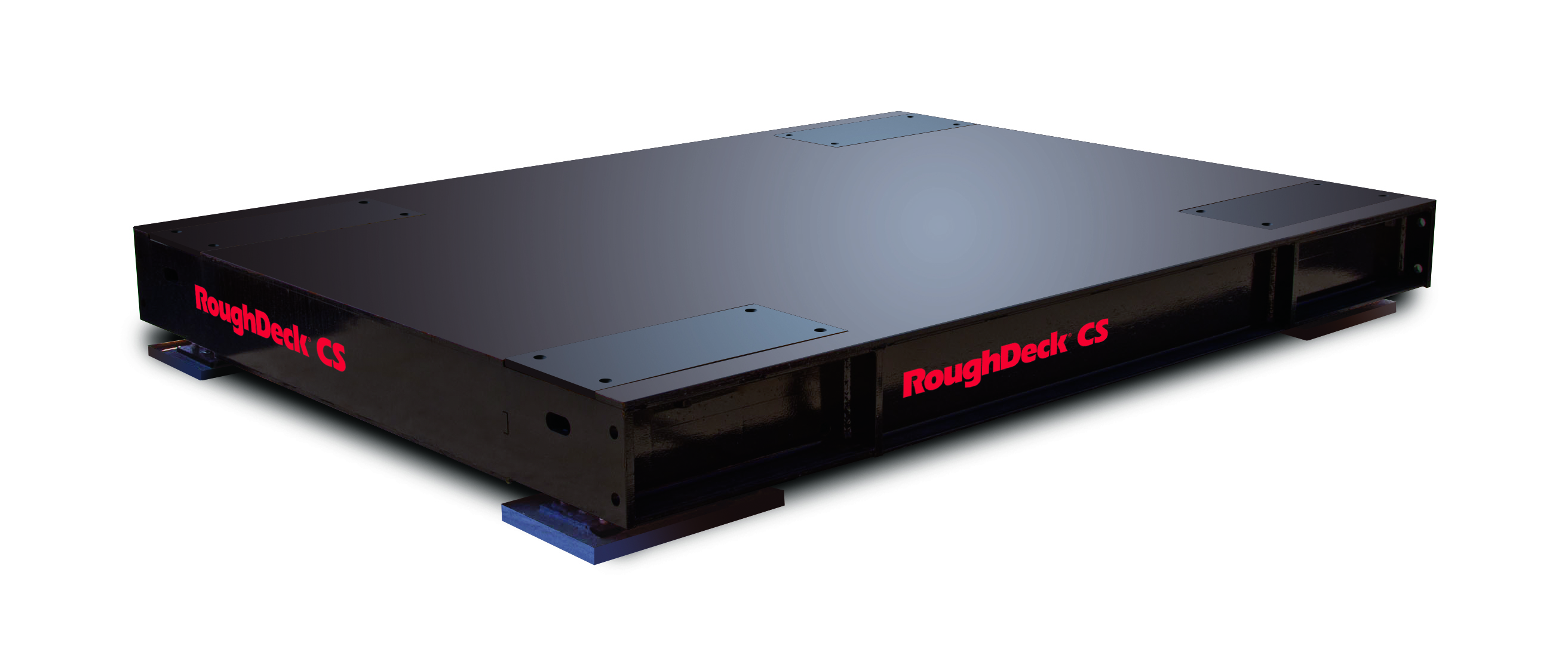

RoughDeck® CS Coil Floor Scale

  • Capacities: 40,000 to 80,000 lb, consult factory for custom capacities
  • Deck thickness: 1/2 in smooth top plate
  • JB4SS Tuffseal® signal trim junction box
  • MVS self-checking mounting system, top access to load cells
  • Black epoxy paint
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable
  • Ships unassembled with (8) concrete anchor bolts

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Tailor-made Tough

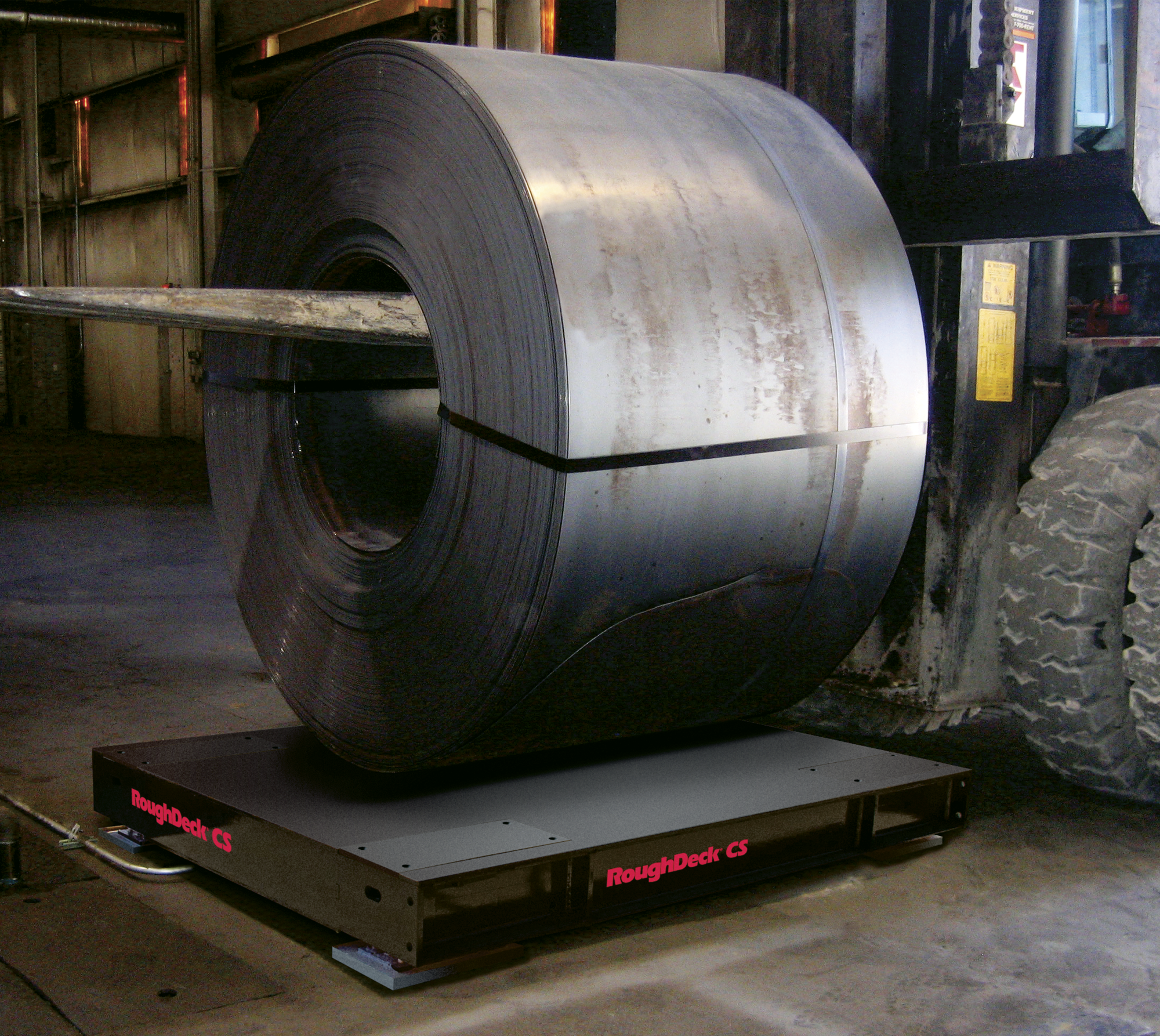

The world’s toughest weighing jobs demand a scale like no other. Rice Lake’s RoughDeck CS was born for the unique task of weighing dense industrial materials to Legal for Trade accuracy. For steel coils, castings, cable spools or more, see why RoughDeck CS is the first and only scale investment you’ll ever make.

• Off the shelf, or made to order
• Custom sizes and capacities
• Rail and track versions custom built to your specifications

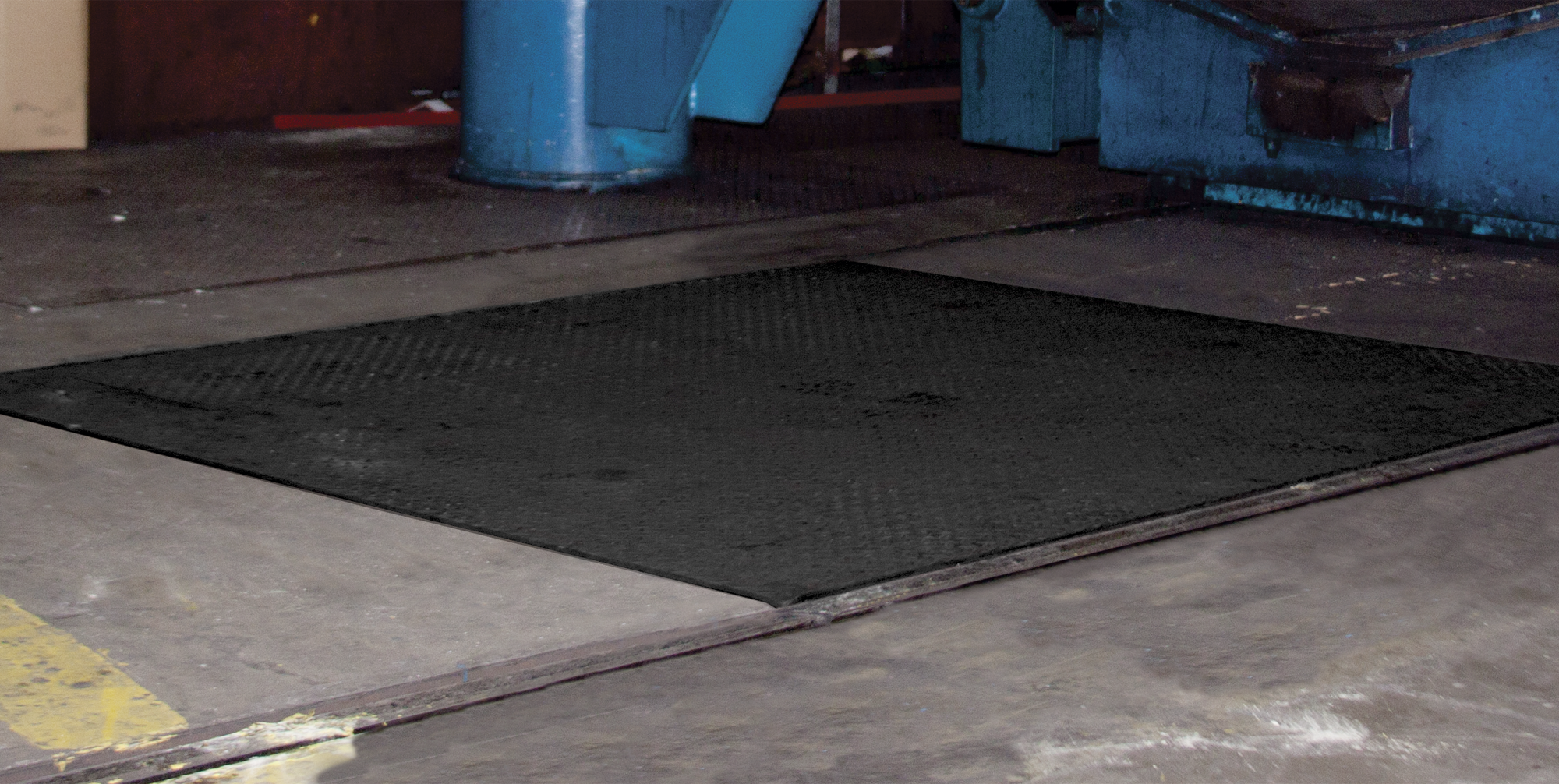

• Above ground or pit mounting
• Specialty coil cradles and fixtures

Steel handling is the ultimate test for industrial equipment. The RoughDeck CS’s tightly spaced steel I-beams, half-inch thick top plate, and the patented G-force™ self-checking mounting system make it the most solidly constructed scale on the market. And when it comes to extreme conditions, the RoughDeck CS takes a punch and comes back for more, delivering accurate results, day after day. Rice Lake’s RoughDeck CS is Legal for Trade in capacities up to 100,000 pounds. Choose a standard platform size or let Rice Lake help design a RoughDeck CS to your specifications.

Capacities:
Scale Capacity | Load Cell and Mount Capacity
40,000 lb  |  Qty (4) 50,000 lb each
60,000 lb  |  Qty (4) 50,000 lb each
80,000 lb  |  Qty (4) 75,000 lb each

Understructure Clearance:
1.91 in minimum

Warranty (limited):
Weldment five-years, load cells two-years, all other components one-year

Approvals:
NTEP CC 11-068, Class III, 5,000 d

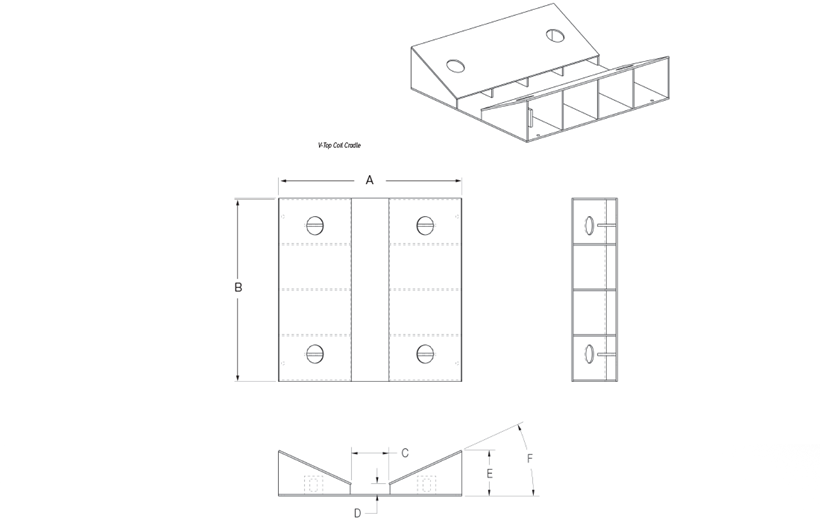

Dimensions 5 × 5 ft V-Top Coil Cradle
A 60 in D 3.64 in
B 60 in  E 14.95 in
C 12.30 in  F 25 in



Dimensions 6 × 6 ft V-Top Coil Cradle
A 72 in D 3.99 in
B 72 in E 14.96 in
C 22.62 in F 24 in





Resources / Downloads

Title View Email Category Type
Coil Scale Ingenuity View Email Articles

Title Download Email
RoughDeck CS Rail Car Coil Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck CS Coil Scale Manual B Download Email Platform Scales|Floor Scales No

Title Download Email
RoughDeck CS Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck CS Coil Scale Request Download Email Floor Scales

Title View Download Email Category
RoughDeck CS Coil Scale Application View Download Email Coil Scales|Floor Scales
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Parts

Part # Description List Price Cart
107493 Scale,Coil Roughdeck 5x5CS-40K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP

List Price: $14,995.00

107494 Scale,Coil Roughdeck 5x5CS-60K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP

List Price: $14,995.00

107495 Scale,Coil Roughdeck 5x5CS-80K. Epoxy painted platform, (4) MVS Mounts and load cells 75K, 4 cell junction box, NTEP

List Price: $14,995.00

107496 Scale,Coil Roughdeck 6x6CS-40K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP

List Price: $16,995.00

107497 Scale,Coil Roughdeck 6x6CS-60K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP

List Price: $16,995.00

107498 Scale,Coil Roughdeck 6x6CS-80K. Epoxy painted platform, (4) MVS Mounts and load cells 75K, 4 cell junction box, NTEP

List Price: $16,995.00

Options

Part # Description List Price Cart
114678 Coil Cradle V-Top 5x5 for use on Roughdeck CS with rated maximum capacity of 80,000lb or less

List Price: $6,195.00

114684 Coil Cradle V-TOP 6x6 for use on Roughdeck CS with rated maximum capacity of 80,000lb or less

Call for price

Consult Pit coping

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
