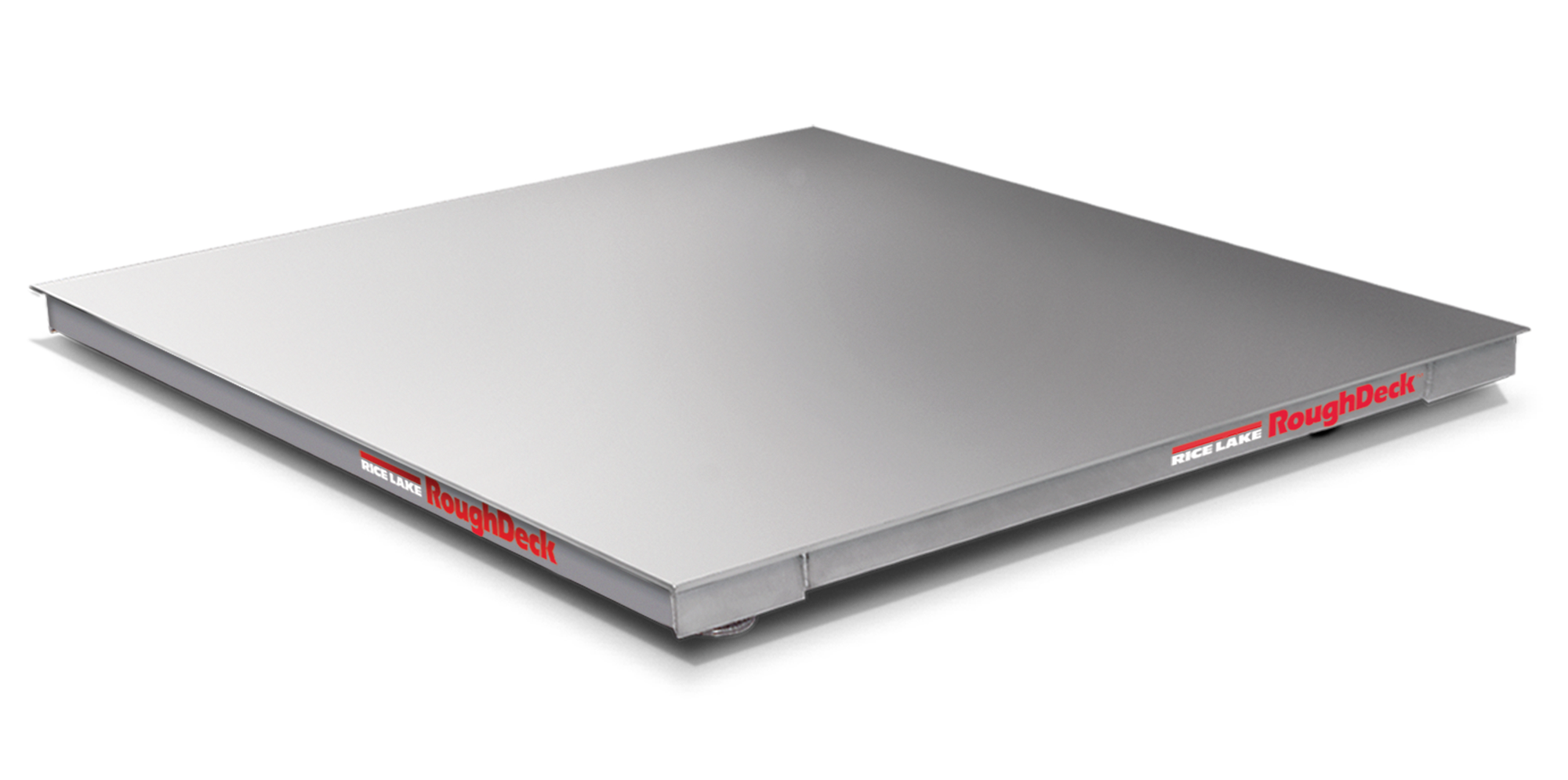

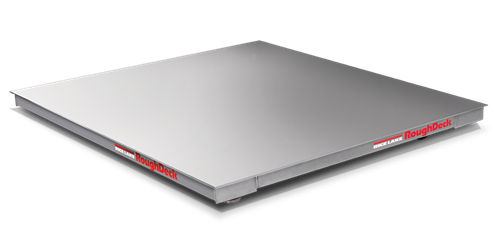

RoughDeck® HE Hostile Environment Floor Scale

  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid 304 stainless steel channel frame
  • Four stainless steel, hermetically sealed, IP69K shear beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
  • Load cells protected on all four sides
  • Smooth stainless steel deck

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

The Toughest, Most Accurate Floor Scale Available

The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck HE comes standard with four stainless steel, IP69K hermetically sealed, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.

The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m)

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty:
RoughDeck HE weldment five years, load cells two years, all other components one year

Approvals:
NTEP Certified, CC 92-001 Class III 5,000 d

Resources / Downloads

Title View Email Category Type
Getting to the Point of Point Loading Email Articles

Title Download Email
RoughDeck HE Catalog Page Download Email
RoughDeck HP, SS & HE Pit Frame Concrete Details Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck SS, HE, HP, HP-H, HC and Altralite C Download Email Floor Scales|Platform Scales No

Title Download Email
RoughDeck HE Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck HP, HP-H, SS and HE Series Floor Scales Request Download Email Floor Scales|Platform Scales
Washdown Solutions Request Download Email Washdown Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Title Download Email
RoughDeck® HE Lifting Eyebolt Table Download Email

Parts

NTEP Approved

Part # Description List Price Cart
18680 Scale,Floor Roughdeck 2.5x2.5HPHE-2K 2-1/2ftx2-1/2ftx3-1/2 2,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $3,315.00

18681 Scale,Floor Roughdeck 3x3HPHE-2K 3ftx3ftx3-1/2 2,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $3,460.00

18682 Scale,Floor Roughdeck 4x4HPHE-5K 4ftx4ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $4,575.00

18683 Scale,Floor Roughdeck 4x4HPHE-10K 4ftx4ftx3-1/2 10,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $6,570.00

18684 Scale,Floor Roughdeck 4x5HPHE-5K 4ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $5,175.00

18685 Scale,Floor Roughdeck 4x5HPHE-10K 4ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $7,555.00

18688 Scale,Floor Roughdeck 5x5HPHE-5K 5ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $5,740.00

18689 Scale,Floor Roughdeck 5x5HPHE-10K 5ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $8,505.00

18692 Scale,Floor Roughdeck 5x7HPHE-5K 5ftx7ftx3-1/2 5,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $7,985.00

18693 Scale,Floor Roughdeck 5x7HPHE-10K 5ftx7ftx3-1/2 10,000 lb 20ft NTEP III SST HE With Remote Junction Box

List Price: $11,040.00

Measurement Canada Approved

Options

Part # Description List Price Cart
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $310.00

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

List Price: $45.00

Consult Stainless steel diamond treadplate safety deck

Call for price

Consult Access ramps, pit frames, bumper guards and portability frames available

Call for price

Consult Four drilled deck holes for scale height adjustment

Call for price

NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Call for price

NA Forklift channel option (up to 5 ft x 7 ft 10,000 lb, accommodates fork tines no larger than (WxH) 5 in x 2 in, fork entry is an opposite side of junction box location)

Call for price
