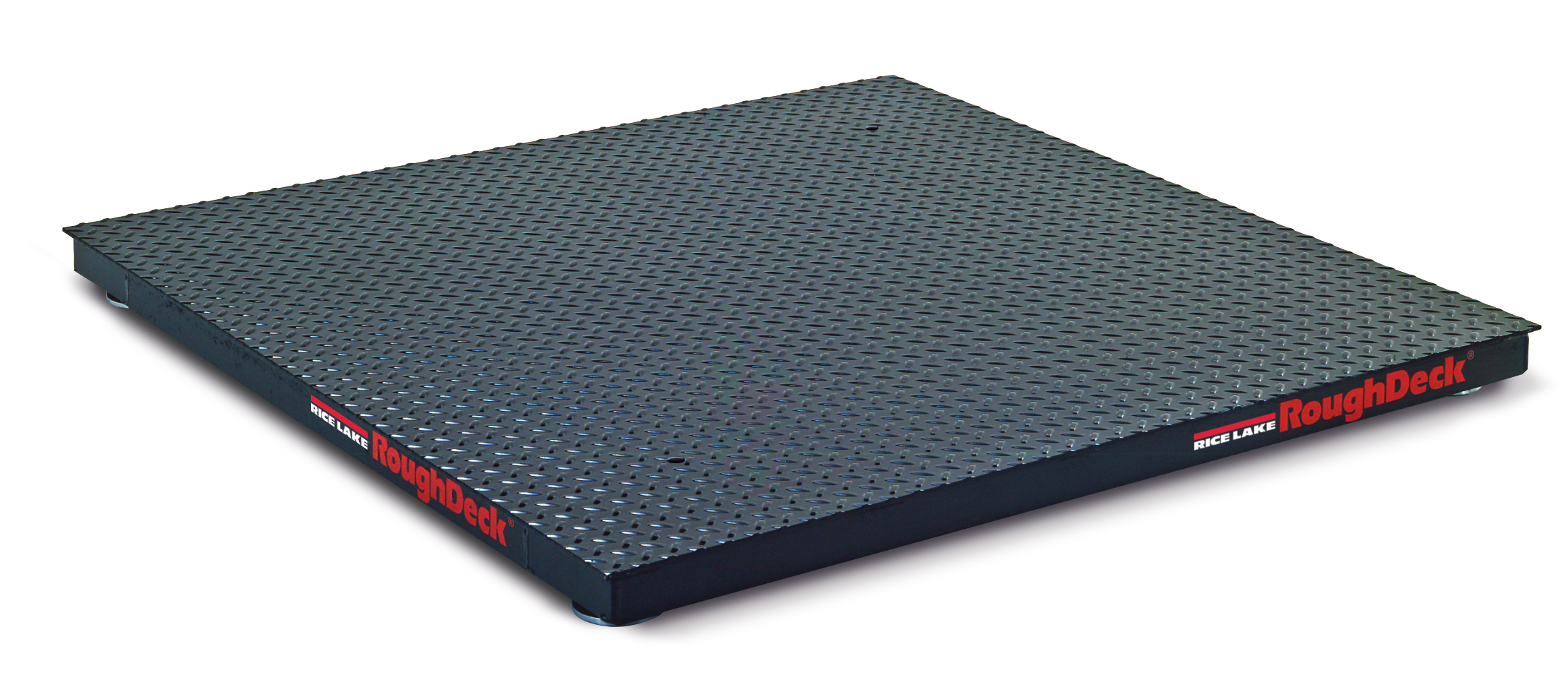

RoughDeck® HP Floor Scale

  • Heavy-duty industrial design
  • Structural steel channel frame
  • Four NTEP Certified alloy steel, shear beam load cells
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable
  • Side-access junction box
  • Rugged diamond deck safety treadplate
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • 4 corner overload stops (Canadian versions only)
  • Level bubble (Canadian versions only)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

The Toughest, Most Accurate Floor Scale Available

The RoughDeck HP’s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000- to 10,000-pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal® junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating the danger of rough handling. Load cells are recessed within the channel for protection on all sides while maintaining easy access for leveling.

All Rice Lake floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation or at later service the scales.

End Load Capacity:
200% full scale at 1,000 lb
100% full scale at 2,000 lb, and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting



Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

Dimensions
Length L1 W W1 H
30.00 in 24.75 in 30.00 in 23.25 in 3.50 in
36.00 in 30.75 in 36.00 in 29.25 in 3.50 in
48.00 in 42.75 in 48.00 in 41.25 in 3.50 in
60.00 in 54.75 in 48.00 in 41.25 in 3.50 in
72.00 in 66.75 in 48.00 in 41.25 in 3.50 in
60.00 in 54.75 in 60.00 in 53.25 in 3.50 in
72.00 in 66.75 in 60.00 in 53.25 in 3.50 in
84.00 78.75 in 60.00 in 53.25 in 3.50 in
Note: 1 in = 25.4 mm

Resources / Downloads

Title View Email Category Type
5 Things to Consider When Purchasing a Floor Scale Email Floor Scales Articles
Community Strength View Email Floor Scales Application Story
Fostering Strength View Email Floor Scales Application Story
Getting to the Point of Point Loading Email Floor Scales Articles
King of the Zoo View Email Floor Scales Application Story
Quest for the Giant Pumpkin View Email Floor Scales Application Story
Rice Lake Rules at zMax Dragway View Email Floor Scales Application Story
RoughDeck® Sets World Record View Email Floor Scales|Remote Displays / Scoreboards Application Story
Smoothing the Road: RoughDecks Checkweigh Chryslers View Email Floor Scales Application Story
Studies with Scales View Email Floor Scales|Indicators / Controllers Application Story
The Day Hollywood Called View Email Floor Scales Application Story
The Nose Knows View Email Floor Scales Articles|Application Story
Time for Bourbon at O.Z. Tyler View Email Floor Scales Application Story

Title Download Email
RoughDeck HP Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck Low Profile Floor Scale HP, HP-H, HC and Rough-n-Ready Installation Manual F Download Email Platform Scales|Floor Scales No
RoughDeck Bolt Size 1 Download Email Floor Scales No

Title Download Email
RoughDeck HP, HP-H and HC Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck HP, HP-H, SS and HE Series Floor Scales Request Download Email Floor Scales|Platform Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Title Download Email
RoughDeck HP with Forklift Channels Outline Drawing Download Email
RoughDeck HP, HE and SS Concrete Details Pit Frame Drawing Download Email
RoughDeck HP, HE, and SS Floor Scale Outline Drawing Download Email

Parts

With Quick Connector

Part # Description List Price Cart
66318 Scale,Floor Roughdeck 2.5x2.5HP-2K 2-1/2ftx2-1/2x3-1/2 2000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $1,995.00

66320 Scale,Floor Roughdeck 3x3HP-1K 3ftx3ftx3-1/2 1000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $1,995.00

66317 Scale,Floor Roughdeck 3x3HP-2K 3ftx3ftx3-1/2 2000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $1,995.00

105300 Scale, Floor Roughdeck 3x3HP-5K 3ftx3ftx3-1/2 5000lb 20ft w/ Quick Connect NTEP III Steel Painted

List Price: $1,995.00

66319 Scale,Floor Roughdeck 4x4HP-1K 4ftx4ftx3-1/2 1000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,120.00

67618 Scale,Floor Roughdeck 4x4HP-2K 4ft x 4ft x 3-1/2 2,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,120.00

66316 Scale,Floor Roughdeck 4x4HP-5K 4ftx4ftx3-1/2 5,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,120.00

66315 Scale,Floor Roughdeck 4x4HP-10K 4ftx4ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,120.00

66314 Scale,Floor Roughdeck 4x5HP-5K 4ftx5ftx3-1/2 5,000lb 20ft w/ Quick Connect

List Price: $2,330.00

66313 Scale,Floor Roughdeck 4x5HP-10K 4ftx5ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $3,130.00

66312 Scale,Floor Roughdeck 4x6HP-5K 4ftx6ftx3-1/2 5,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,510.00

66311 Scale,Floor Roughdeck 4x6HP-10K 4ftx6ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $3,310.00

66310 Scale,Floor Roughdeck 5x5HP-5K 5ftx5ftx3-1/2 5,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,545.00

66309 Scale,Floor Roughdeck 5x5HP-10K 5ftx5ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $3,345.00

66308 Scale,Floor Roughdeck 5x6HP-5K 5ftx6ftx3-1/2 5,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $2,810.00

66307 Scale,Floor Roughdeck 5x6HP-10K 5ftx6ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $3,810.00

66306 Scale,Floor Roughdeck 5x7HP-5K 5ftx7ftx3-1/2 5000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $3,025.00

66305 Scale,Floor Roughdeck 5x7HP-10K 5ftx7ftx3-1/2 10,000lb 20ft w/ Quick Connect NTEP III 5 Steel Painted

List Price: $4,025.00

Without Quick Connector

Canadian Weights and Measures Approved - With Quick Connector

Canadian Weights and Measures Approved - Without Quick Connector

Options

Part # Description List Price Cart
19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy

List Price: $250.00

126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy

List Price: $275.00

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

Consult Access ramps, pit frames, bumper guards and portability frames available

Call for price

Consult Smooth deck instead of diamond safety tread plate

Call for price

Consult Four drilled deck holes for scale height adjustment

Call for price

Consult Epoxy paint

Call for price

Consult Mild steel deck with RL32018S IP66 stainless steel cFMus approved load cells and hardware

Call for price

Consult Mild steel deck with RL32218S-HE hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Call for price

Consult Top access junction box

Call for price

Consult Forklift channel option (up to 5 ft x 7 ft 10,000 lb, accommodates fork tines no larger than (WxH) 5 in x 2 in, fork entry is an opposite side of junction box location)

Call for price

Access Ramps

Pit Frames

Bumper Guards - Option A

Bumper Guards - Option B

Bumper Guards - Option C

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

RL-RoughDeck-HP-Caster-Portability-Frame

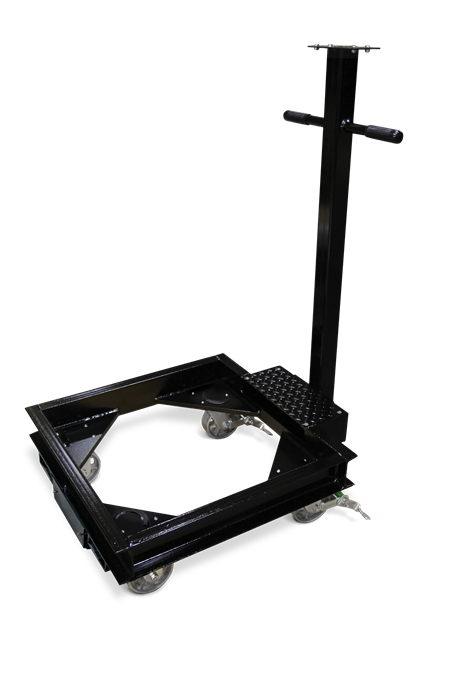

RoughDeck® HP Caster Portability Frame
