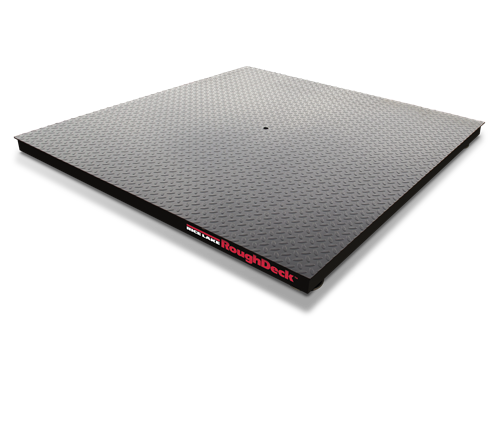

RoughDeck® HP-H Heavy Capacity Floor Scale
- Heavy-duty industrial design
- Structural steel channel frame
- Four NTEP Certified alloy steel, shear beam load cells
- 20 ft SURVIVOR® EL147HE hostile environment load cell cable
- Side-access junction box
- Rugged diamond safety treadplate deck
- Four adjustable mild steel SUREFOOT™ support feet
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The Toughest, Most Accurate Floor Scale Available
The RoughDeck HP-H floor scales' best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 20,000 to 30,000-pound capacities, the RoughDeck HP-H floor scale is the industry leader for precision weighing in Legal for Trade applications.
The RoughDeck HP-H's NEMA Type 4 aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating the danger of rough handling. All load cells are recessed within the channel for protection on all sides while maintaining easy access for leveling.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.
RoughDeck HP-H Floor Scale Specifications
|
End Load Capacity: Cable Length: |
Junction Box: Welding: Threaded Eyebolt: |
Warranty (limited): Approvals: |
RoughDeck HP-H Floor Scale Dimensions
| Dimensions | ||||
|---|---|---|---|---|
| Length | L1 | W | W1 | H |
| 20,000 Capacity | ||||
| 48.00 in | 41.50 in | 48.00 in | 39.25 in | 4.00 in |
| 60.00 in | 53.50 in | 48.00 in | 39.25 in | 4.00 in |
| 72.00 in | 65.50 in | 48.00 in | 39.25 in | 4.00 in |
| 84.00 in | 77.50 in | 48.00 in | 39.25 in | 4.00 in |
| 60.00 in | 53.50 in | 60.00 in | 51.25 in | 4.00 in |
| 72.00 in | 65.50 in | 60.00 in | 51.25 in | 4.00 in |
| 84.00 in | 77.50 in | 60.00 in | 51.25 in | 4.00 in |
| 72.00 in | 65.50 in | 72.00 in | 63.25 in | 4.00 in |
| 96.00 in | 89.50 in | 72.00 in | 63.25 in | 4.00 in |
| 180.00 in | 101.50 in | 84.00 in | 75.25 in | 4.00 in |
| 120.00 in | 113.50 in | 84.00 in | 75.25 in | 4.00 in |
| 120.00 in | 113.50 in | 96.00 in | 87.25 in | 4.00 in |
| Length | L1 | W | W1 | H |
| 30,000 Capacity | ||||
| 48.00 in | 40.50 in | 48.00 in | 39.25 in | 5.00 in |
| 60.00 in | 52.50 in | 48.00 in | 39.25 in | 5.00 in |
| 72.00 in | 64.50 in | 48.00 in | 39.25 in | 5.00 in |
| 84.00 in | 76.50 in | 48.00 in | 39.25 in | 5.00 in |
| 60.00 in | 52.50 in | 60.00 in | 51.25 in | 5.00 in |
| 84.00 in | 76.50 in | 60.00 in | 51.25 in | 5.00 in |
| 72.00 in | 64.50 in | 72.00 in | 63.25 in | 5.00 in |
| 120.00 in | 112.50 in | 84.00 in | 75.25 in | 5.00 in |
| 120.00 in | 112.50 in | 96.00 in | 87.25 in | 5.00 in |
| Note: 1 in = 25.4 mm | ||||
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Getting to the Point of Point Loading |  Email |
Floor Scales | Articles | |
| Smoothing the Road: RoughDecks Checkweigh Chryslers | View | Email |
Application Story |
Parts
With Quick Connector - NTEP Approved
| Part # | Description | List Price | Cart |
|---|---|---|---|
|
66474
|
Scale,Floor Roughdeck 4x4HP-20K 4ftx4ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $3,935.00 |
|
|
66475
|
Scale,Floor Roughdeck 4x5HP-20K 4ftx5ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $4,205.00 |
|
|
66476
|
Scale,Floor Roughdeck 4x6HP-20K 4ftx6ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $4,585.00 |
|
|
66477
|
Scale,Floor Roughdeck 4x7HP-20K 4ftx7ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $4,950.00 |
|
|
66478
|
Scale,Floor Roughdeck 5x5HP-20K 5ftx5ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $4,560.00 |
|
|
66479
|
Scale,Floor Roughdeck 5x6HP-20K 5ftx6ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,125.00 |
|
|
66480
|
Scale,Floor Roughdeck 5x7HP-20K 5ftx7ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,345.00 |
|
|
66481
|
Scale,Floor Roughdeck 6x6HP-20K 6ftx6ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $6,045.00 |
|
|
66482
|
Scale,Floor Roughdeck 6x8HP-20K 6ftx8ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $7,500.00 |
|
|
66483
|
Scale,Floor Roughdeck 7x9HP-20K 7ftx9ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $9,370.00 |
|
|
66484
|
Scale,Floor Roughdeck 7x10HP-20K 7ftx10ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $10,895.00 |
|
|
66485
|
Scale,Floor Roughdeck 8x10HP-20K 8ftx10ftx4 20,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $12,310.00 |
|
|
66486
|
Scale,Floor Roughdeck 4x4HP-30K 4ftx4ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $4,705.00 |
|
|
66487
|
Scale,Floor Roughdeck 4x5HP-30K 4ftx5ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,135.00 |
|
|
66488
|
Scale,Floor Roughdeck 4x6HP-30K 4ftx6ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,310.00 |
|
|
66489
|
Scale,Floor Roughdeck 4x7HP-30K 4ftx7ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,700.00 |
|
|
66490
|
Scale,Floor Roughdeck 5x5HP-30K 5ftx5ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $5,265.00 |
|
|
66491
|
Scale,Floor Roughdeck 5x7HP-30K 5ftx7ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $6,070.00 |
|
|
66492
|
Scale,Floor Roughdeck 6x6HP-30K 6ftx6ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $6,875.00 |
|
|
66493
|
Scale,Floor Roughdeck 7x10HP-30K 7ftx10ftx5 30,000 LB w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $11,910.00 |
|
|
66494
|
Scale,Floor Roughdeck 8x10HP-30K 8ftx10ftx5 30,000LB 20ft w/ Quick Connect NTEP III 5 Steel Painted
|
List Price: $13,360.00 |
With Quick Connector - Canadian Weights and Measures Approved)
Without Quick Connector - NTEP Approved
Without Quick Connector (Canadian Weights and Measures Approved)
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 40387 | Mounting Plate Set, ROUGHDECK 20,000lb Steel Painted |
List Price: $51.00 |
|
| 40388 | Mounting Plate Set, ROUGHDECK 30,000lb Steel Painted |
List Price: $51.00 |
|
| 19352 | Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy |
List Price: $250.00 |
|
| 126384 | Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy |
List Price: $275.00 |
|
| Consult | Access ramps, pit frames, bumper guards and portability frames available |
Call for price |
|
| Consult | Smooth deck instead of diamond safety tread plate |
Call for price |
|
| Consult | Four drilled deck holes for scale height adjustment |
Call for price |
|
| Consult | Mild steel deck with RL32018S IP66 stainless steel cFMus approved load cells and hardware |
Call for price |
|
| Consult | Mild steel deck with RL32218S-HE welded-seal IP69K stainless steel cFMus approved load cells and hardware |
Call for price |
|
| Consult | Epoxy paint |
Call for price |
|
| Consult | Top access junction box |
Call for price |
