RoughDeck® PC Pancake Cargo Scale

  • Top access JB4SS TuffSeal® signal trim junction box
  • Foot adjustment holes for leveling scale from above
  • Four ball encapsulated feet
  • Four IP66, alloy steel 10,000lb load cells
  • Epoxy paint for added protection. Ramps are painted yellow and scale is painted black to easily distinguish live weighing surface.
  • 20ft SURVIVOR® EL147HE hostile environment load cell cable to connect scale to indicator. Cable can exit scale/ramp from any corner.
  • Scale and wraparound ramps to access scale from all sides
  • Ramps have integrated foot keeper plates to keep scale in check with ramps
  • Holes in ramps to access internal anchor tabs from above. 16 anchor bolts at 3/4 in included.
  • All surfaces diamond tread

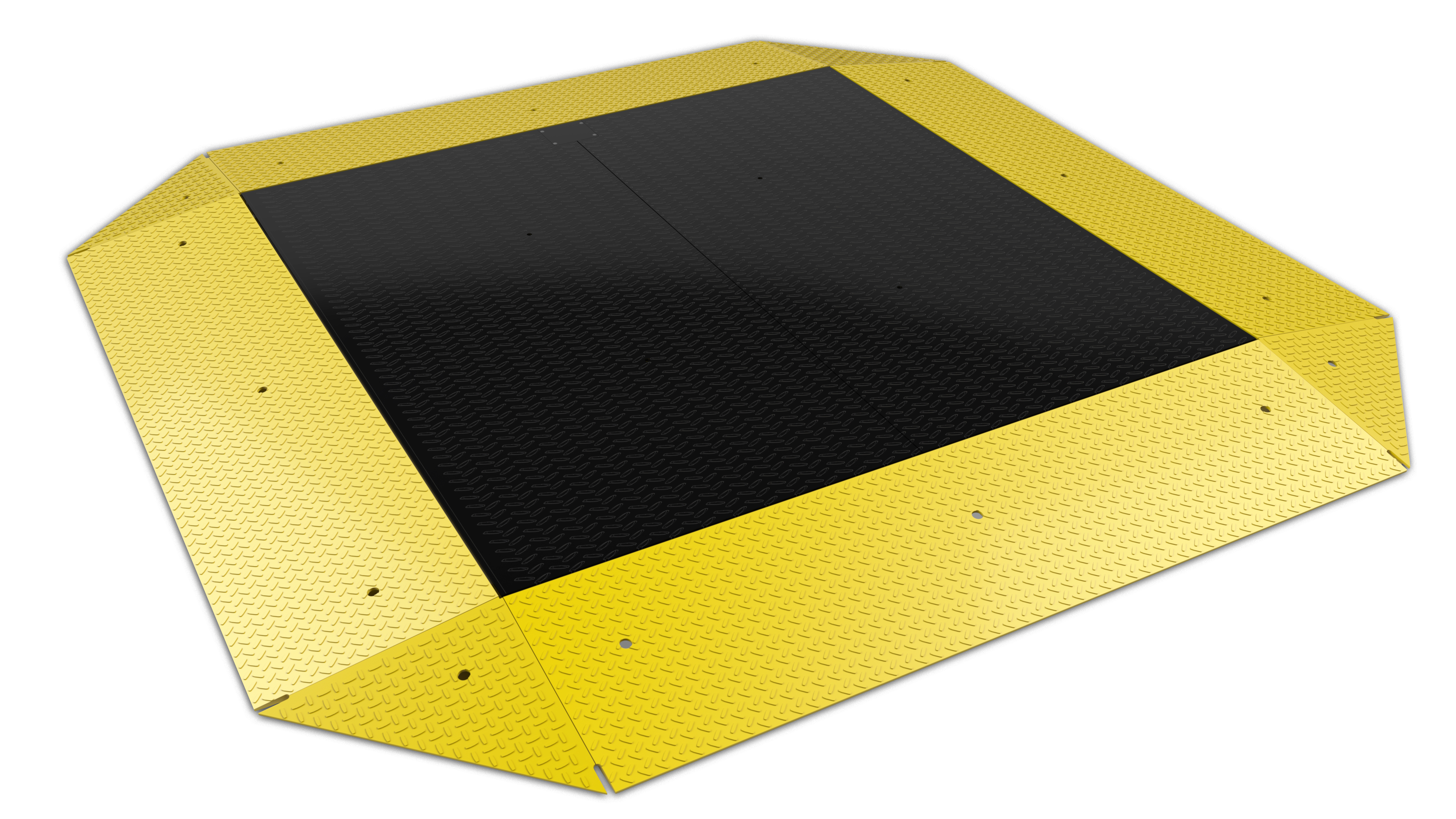

The RoughDeck PC pancake cargo scale has wraparound ramps for easy vehicle access in all four directions. The PC pancake cargo scale is available as 10 × 10 feet with a capacity of 20,000 lbs.

End Load Capacity:
100% full scale at 20,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Ramp Incline Angle:
6.5 degrees

Threaded Eyebolt:
Four holes (3/4-10 NC)

Warranty (limited):
Weldment five-years, load cells two-years, all other components one-year

Dimensions
A 120.00 in C 4.37 in
B 35.80 in D 0.38 in



Resources / Downloads

Title Download Email
RoughDeck PC Catalog Page Download Email

Parts

Part # Description List Price Cart
194338 Scale, Roughdeck PC 10x10HP-20K 10ftx10ftx4-3/8 20,000LB, non-ntep, 20ft cable, Steel Painted, Top access junction box and foot adjust holes, Ramps (4)10ft x 3ft and (4)3ft Corners, top access holes and (16) 3/4in anchor bolts, corners slotted for homerun cable exit

List Price: $26,795.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
