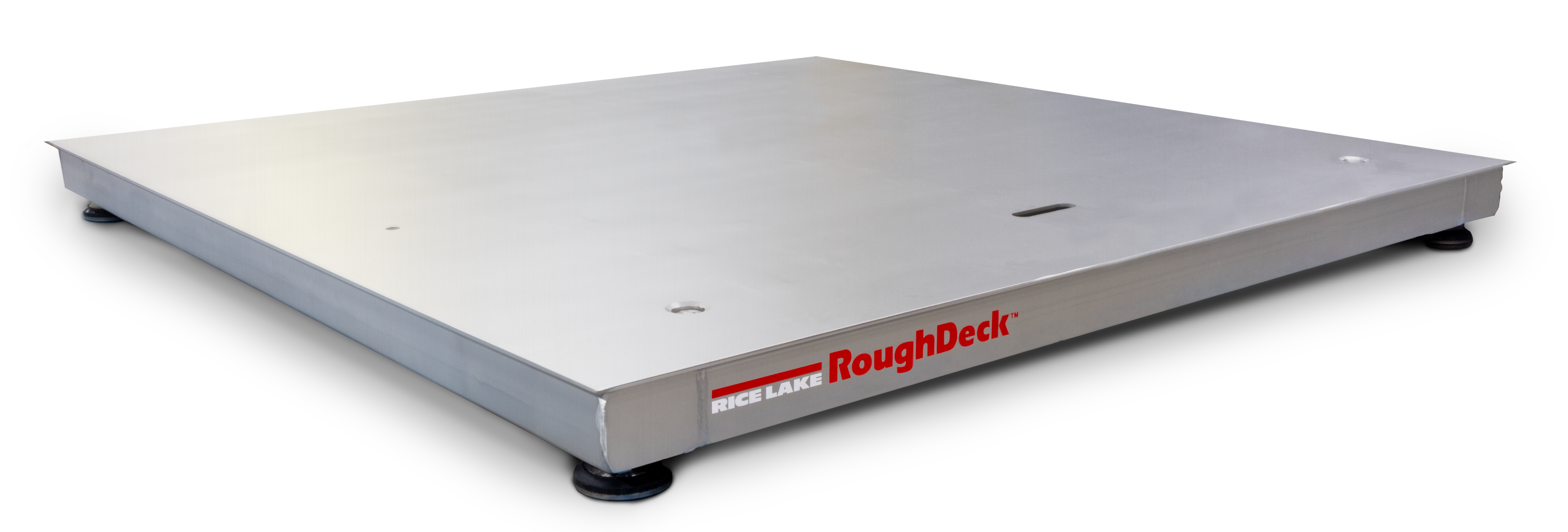

RoughDeck® QC Quick Clean Floor Scale

  • Rugged washdown design
  • Smooth, 304 stainless steel top deck
  • Rigid 304 stainless steel tube frame
  • Meets HACCP requirements
  • Manual drop-in-place safety bar
  • Four stainless steel, hermetically sealed, IP69K shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
  • 3/16 in thick smooth top plate
  • 4 adjustable stainless steel SUREFOOT™ support feet

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

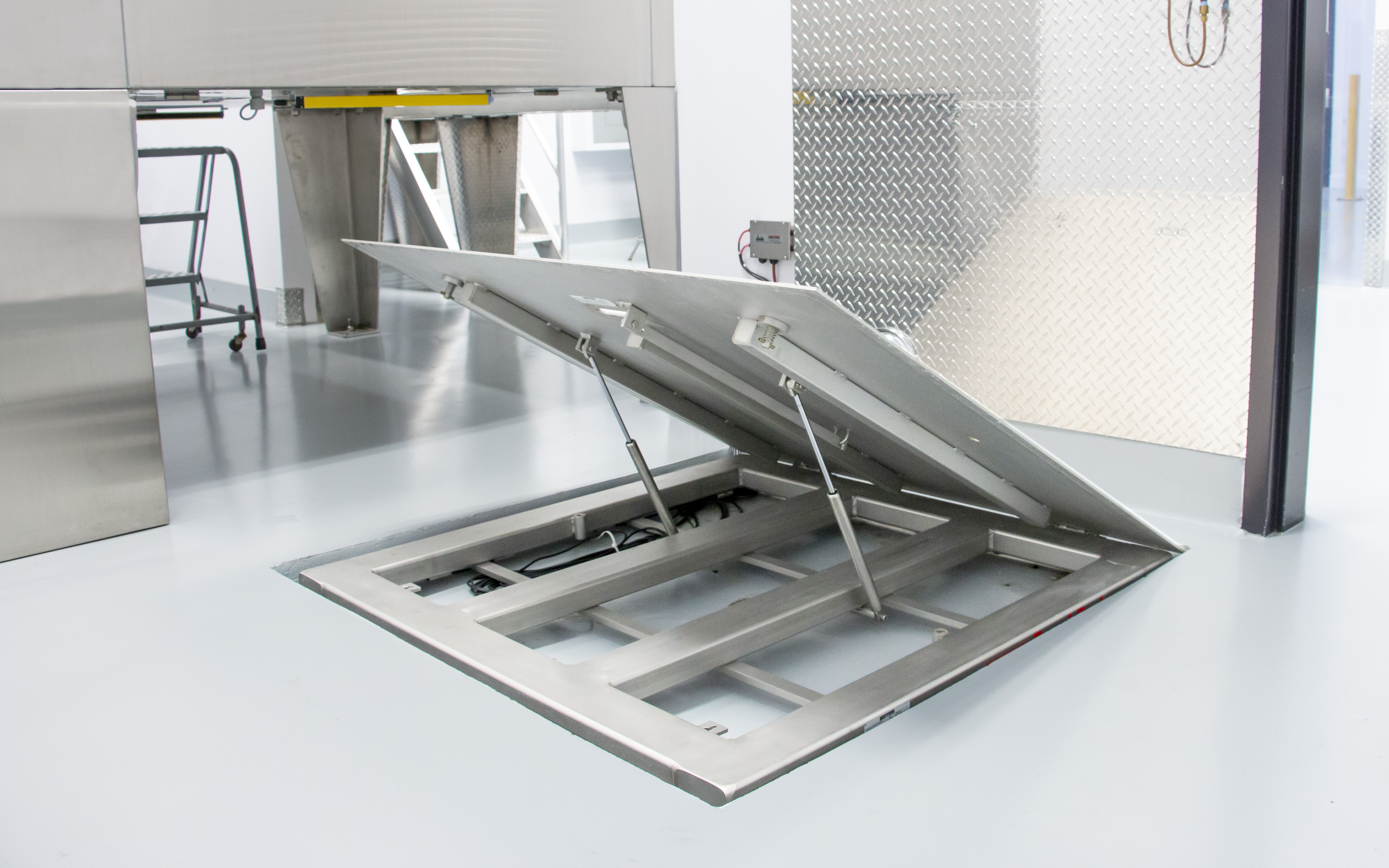

The RoughDeck QC is a hostile environment, stainless steel floor scale customized for food, chemical and other demanding washdown applications. The RoughDeck QC’s exclusive gas-shock design provides easy lifting and soft closing of the 3/16 inch top plate. Also included is a manual drop-in-place support bar for use during extended underdeck cleaning.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) (for connecting junction box to indicator)

Remote Junction Box:
Stainless steel enclosure can be located up to 10 ft away from scale

Welding:
Stitch, consult if continuous is required

Threaded Eyebolt Hole:
1/2-20 NF located in center of deck for easy lifting

Warranty (limited):
Weldment five-years, load cells two-years, all other components one-year

Approvals:
NTEP CC 92-001, Class III 5,000 d

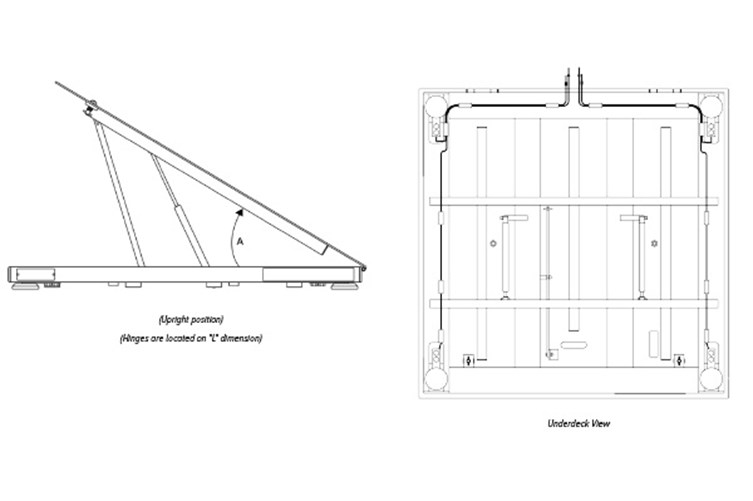

Dimensions
A Size of Scale Degree
2.5 ft x 2.5 ft 37
3 ft x 3 ft 30
4 ft x 4 ft 30
4 ft x 5 ft 30
4 ft x 6 ft 26
5 ft x 5 ft 25
5 ft x 7 ft 24





Access Ramps (Diamond Treadplate Standard) (W x L x H)
Part # Ramp Size Ramp Angle of Incline
69193 2.5 ft x 4.0 ft x 3.5 in (works with PN 50402) 4.0°
69194 3.0 ft x 4.0 ft x 3.5 in (works with PN 50403) 4.0°
69195 4.0 ft x 4.0 ft x 3.5 in (works with PN 50404, 50405 and 50407) 4.0°
69217 4.0 ft x 4.0 ft x 4.5 in (works with PN 50406, 50408, 50410 and 50411) 5.2°
69218 4.0 ft x 4.0 ft x 4.5 in (works with PN 50409) 5.2°
69222 4.0 ft x 5.0 ft x 5.5 in (works with PN 50412) 5.1°
69219 5.0 ft x 4.0 ft x 4.5 in (works with PN 50413 and 50414) 5.2°
69220 5.0 ft x 4.0 ft x 4.5 in (works with PN 50415) 5.2°
69223 5.0 ft x 5.0 ft x 5.5 in (works with PN 50416, 50417 and 50418) 5.1°

Resources / Downloads

Title View Email Category Type
Animals Say Ahhhh! View Email Floor Scales Application Story
Getting to the Point of Point Loading Email Articles
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
RoughDeck QC Catalog Page Download Email
RoughDeck QC Access Ramps and Pit Frames Catalog Page Download Email
RoughDeck QC Pit Frame Concrete Details Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck QC Quick Clean Floor Scale Installation Manual A Download Email Floor Scales|Platform Scales No

Title Download Email
RoughDeck QC Quick Clean Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck QC Floor Scale Download Email Floor Scales
Washdown Solutions Request Download Email Washdown Scales
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Request Download Email Washdown Scales|Bench Scales|Floor Scales|Checkweighers|In-Motion Checkweighers

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Parts

Part # Description List Price Cart
50402 Scale,Floor Roughdeck QC 2.5x2.5HPQC-2K 2-1/2ftx2-1/2ftx3-1/2 2000lb 20ft NTEP III SST HE

List Price: $6,610.00

50403 Scale,Floor Roughdeck QC 3x3HPQC-2K 3ftx3ftx3-1/2 2000lb 20ft NTEP III SST HE

List Price: $7,080.00

50404 Scale,Floor Roughdeck QC 4x4HPQC-2K 4ftx4ftx3-1/2 2000lb 20ft NTEP III SST HE

List Price: $7,765.00

50405 Scale,Floor Roughdeck QC 4x4HPQC-5K 4ftx4ftx3-1/2 5000lb 20ft NTEP III SST HE

List Price: $7,765.00

50406 Scale,Floor Roughdeck QC 4x4HPQC-10K 4ftx4ftx4-1/2 10000lb 20ft NTEP III SST HE

List Price: $8,545.00

50407 Scale,Floor Roughdeck QC 4x5HPQC-2K 4ftx5ftx3-1/2 2000lb 20ft NTEP III SST HE

List Price: $9,295.00

50408 Scale,Floor Roughdeck QC 4x5HPQC-5K 4ftx5ftx4-1/2 5000lb 20ft NTEP III SST HE

List Price: $9,295.00

50409 Scale,Floor Roughdeck QC 4x5HPQC-10K 4ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE

List Price: $11,895.00

50410 Scale,Floor Roughdeck QC 4x6HPQC-2K 4ftx6ftx4-1/2 2000lb 20ft NTEP III SST HE

List Price: $11,895.00

50411 Scale,Floor Roughdeck QC 4x6HPQC-5K 4ftx6ftx4-1/2 5000lb 20ft NTEP III SST HE

List Price: $11,895.00

50412 Scale,Floor Roughdeck QC 4x6HPQC-10K 4ftx6ftx5-1/2 10000lb 20ft NTEP III SST HE

List Price: $13,385.00

50413 Scale,Floor Roughdeck QC 5x5HPQC-2K 5ftx5ftx4-1/2 2000lb 20ft NTEP III SST HE

List Price: $12,600.00

50414 Scale,Floor Roughdeck QC 5x5HPQC-5K 5ftx5ftx4-1/2 5000lb 20ft NTEP III SST HE

List Price: $12,600.00

50415 Scale,Floor Roughdeck QC 5x5HPQC-10K 5ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE

List Price: $15,375.00

50416 Scale,Floor Roughdeck QC 5x7HPQC-2K 5ftx7ftx5-1/2 2000lb 20ft NTEP III SST HE

List Price: $18,545.00

50417 Scale,Floor Roughdeck QC 5x7HPQC-5K 5ftx7ftx5-1/2 5000lb 20ft NTEP III SST HE

List Price: $18,545.00

50418 Scale,Floor Roughdeck QC 5x7HPQC-10K 5ftx7ftx5-1/2 10000lb 20ft NTEP III SST HE

List Price: $19,700.00

Access Ramp (Diamond Tread Plate Standard) (W x L x H)

Pit Frame (W x L x D)

Options

Part # Description List Price Cart
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $340.00

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

Call for price

NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Call for price

Consult Stainless steel diamond treadplate safety deck

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
