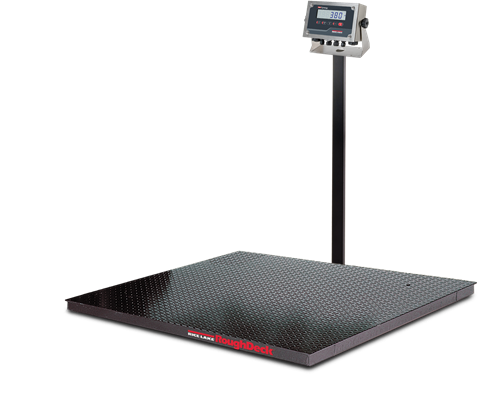

RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator

  • Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 380 indicator
  • Package is factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

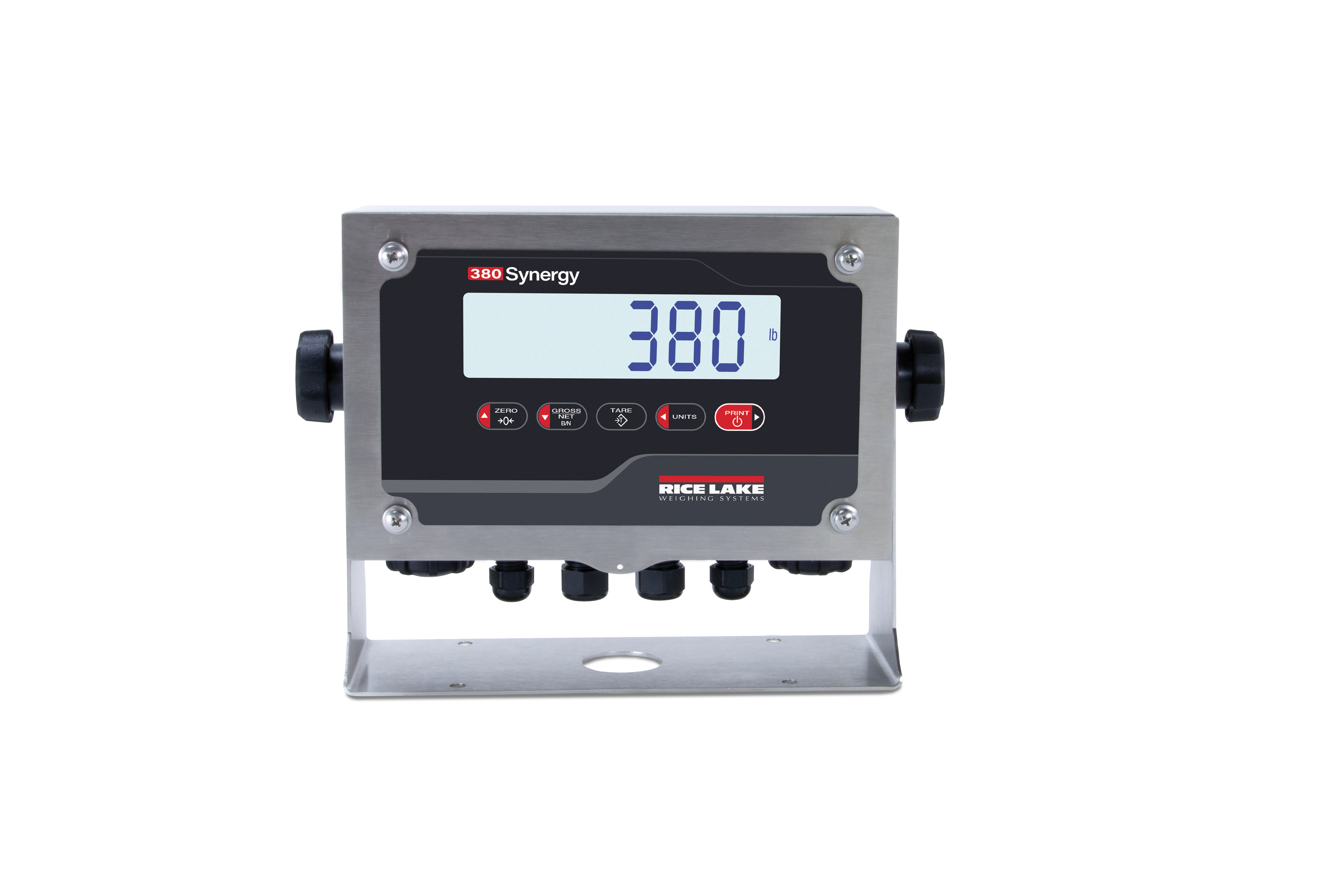

Indicator

  • LCD display
  • Two independent serial ports, RS-232 and USB 2.0

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark ULCUS

WARNING: Cancer and Reproductive Harm California Proposition 65

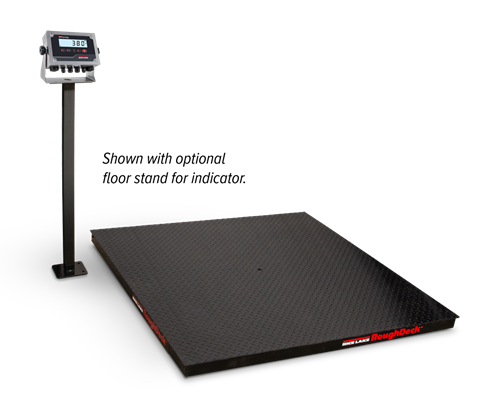

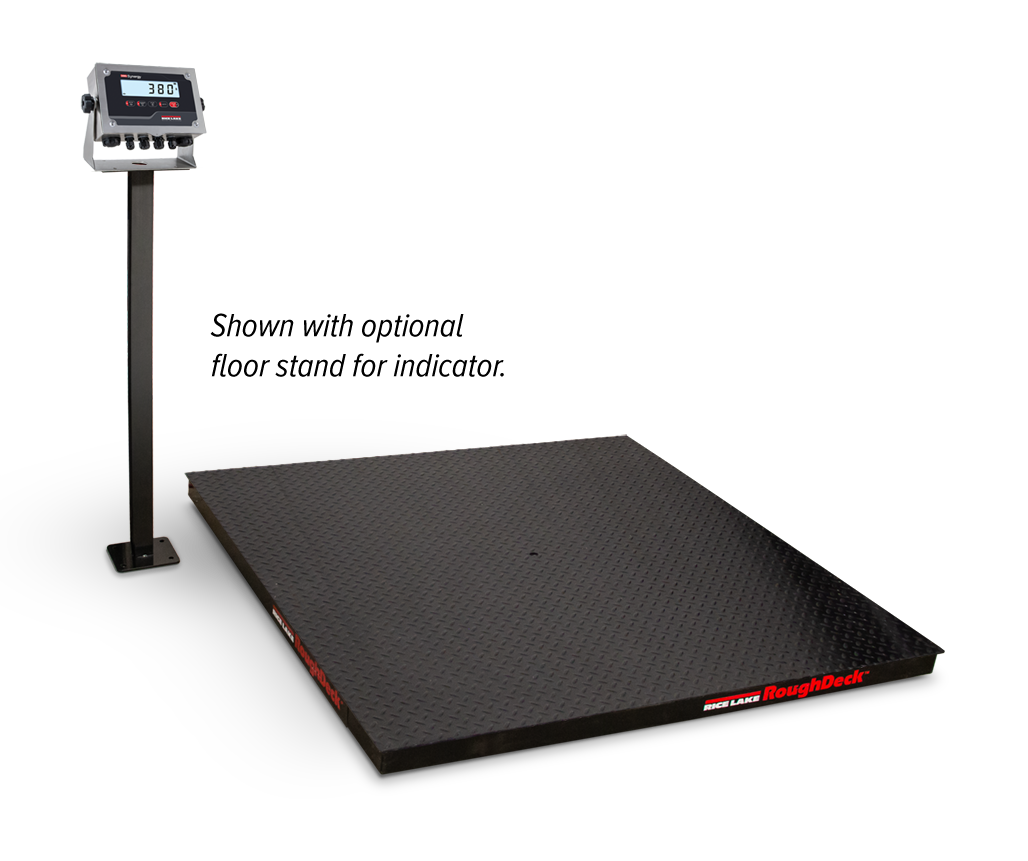

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment five-years, load cells two-years, all other components one-year

Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

Power:
Batteries: 4 Alkaline C-cell
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
45 hours, continuous use on Alkaline batteries with four 350 ohm load cells, low backlight

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

Display:
Six 1 in (25 mm) tall, LCD digits

Status Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net



Keys/Buttons:
5 tactile buttons

Rating/Material:
Enclosure: IP66, 304 stainless steel

Approvals:
NTEP CC 21-051
Measurement Canada AM-5892
CE Marked
UL/cUL Listed

Resources / Downloads

Title Download Email
Rough-n-Ready Scale/380 Catalog Page Download Email

Parts

4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand

Part # Description List Price Cart
208558 Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/380 Synergy Factory Calibrated

List Price: $2,755.00

208585 Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/380 Synergy Factory Calibrated

List Price: $2,755.00

4 ft x 4 ft x 3.5 in RoughDeck (Canadian Weights and Measures Approved) Indicator Package with Tilt Stand

Options

Part # Description List Price Cart
206433 Power Supply Assy,12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $52.00

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $250.00

126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $275.00

Consult Access ramps, pit frames, bumper guards and portability frames available

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Access Ramps

RoughDeck® HP, HP-H, SS and HE Access Ramps

RoughDeck access ramps are available to compliment all RoughDeck floor scales, from hostile environment to stainless steel construction and a vast array of sizes and capacities.

Portals 0 Products 3Bebcb18e8574083934a2d7eef4b10f2 Orig (1)

RoughDeck® HP, HP-H, SS, and HE Pit Frames

Rice Lake’s RoughDeck® pit frames are used for pit installations of the RoughDeck floor scale.

RoughDeck® HP, HP-H, SS and HE Bumper Guards 2

RoughDeck® HP, HP-H, SS and HE Bumper Guards

To protect your RoughDeck floor scale from unwanted and potentially damaging contact, install the RoughDeck bumper guards on any or all sides.

RoughDeck® HP and SS Portability Frame

RoughDeck HP and SS Forklift Portability Frame

The RoughDeck® HP and SS Portability Frame has an indicator stand mount bracket for 120/120 Plus, 882IS/882IS Plus with battery, 880/880 Plus, 480/480 Plus and 680 Synergy.
