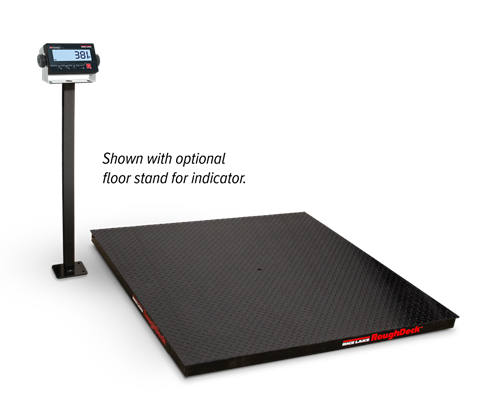

RoughDeck® Rough-n-Ready System, Floor Scale and 381 Indicator
- Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 381 indicator
- Package is factory-calibrated for 5,000 divisions
Scale
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box
Indicator
- LCD display
- Communication ports
- ABS enclosure
- Battery powered
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

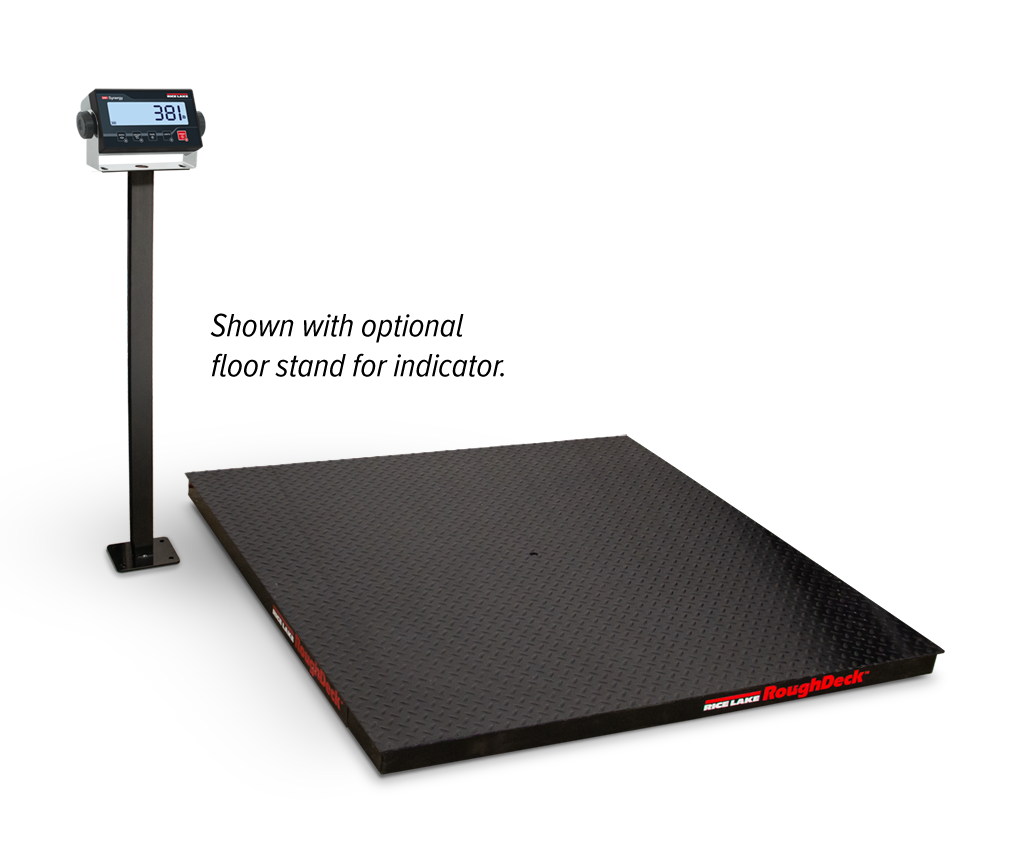

Complete Floor Scale Package with RoughDeck® HP Floor Scale and 381 Synergy Series Indicator
Rice Lake’s RoughDeck HP floor scale has a heavy-duty industrial design and a structural steel channel frame. It has four NTEP-certified alloy steel shear beam load cells and a 20-foot SURVIVOR® EL147HE hostile environment load cell cable. The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal® junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck.
This package pairs the 381 Synergy Series digital weight indicator with the RoughDeck. The 381’s LCD weight display is clearly visible to operators, allowing the 381 Synergy to be mounted almost anywhere. The AA battery-operated model provides up to 40 hours of operation and has an IP54 rating. The Nickel Metal Hydride (NiMH) battery-operated model provides up to 80 hours of operation with an IP66 rating.
RoughDeck Specifications
|
End Load Capacity: Cable Length: |
Threaded Eyebolt: Warranty (limited): |
Approvals: |
381 Indicator Specifications
|
Power: Battery Life: |
Communication Ports: Display: Annunciators: |
Keys/Buttons: Rating/Material: Approvals: |
Resources / Downloads
Parts
4 ft × 4 ft × 3.5 in RoughDeck (NTEP Certified) 381 Indicator with AA battery and 12V power adaptor
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 219279 | Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/381 Synergy AA Alkaline w/12V Power adaptor Factory Calibrated |
List Price: $2,475.00 |
|
| 219280 | Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/381 Synergy AA Alkaline w/12V Power adaptor Factory Calibrated |
List Price: $2,475.00 |
4 ft × 4 ft × 3.5 in RoughDeck (Canadian Weights and Measures Approved) 381 Indicator with AA battery and 12V power adaptor
4 ft × 4 ft × 3.5 in RoughDeck (NTEP Certified) 381 Indicator with NiMH battery and charger
4 ft × 4 ft × 3.5 in RoughDeck (Canadian Weights and Measures Approved) 381 Indicator with NiMH battery and charger
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 18777 | Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted |
List Price: $38.00 |
|
|
19352
|
Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy
|
List Price: $250.00 |
|
| 126384 | Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy |
List Price: $275.00 |
|
| Consult | Access ramps, pit frames, bumper guards and portability frames available |
Call for price |
