RoughDeck® Rough-n-Ready System, Floor Scale and 680 Indicator
- Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 680 indicator
- Package factory-calibrated for 5,000 divisions
Scale
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box

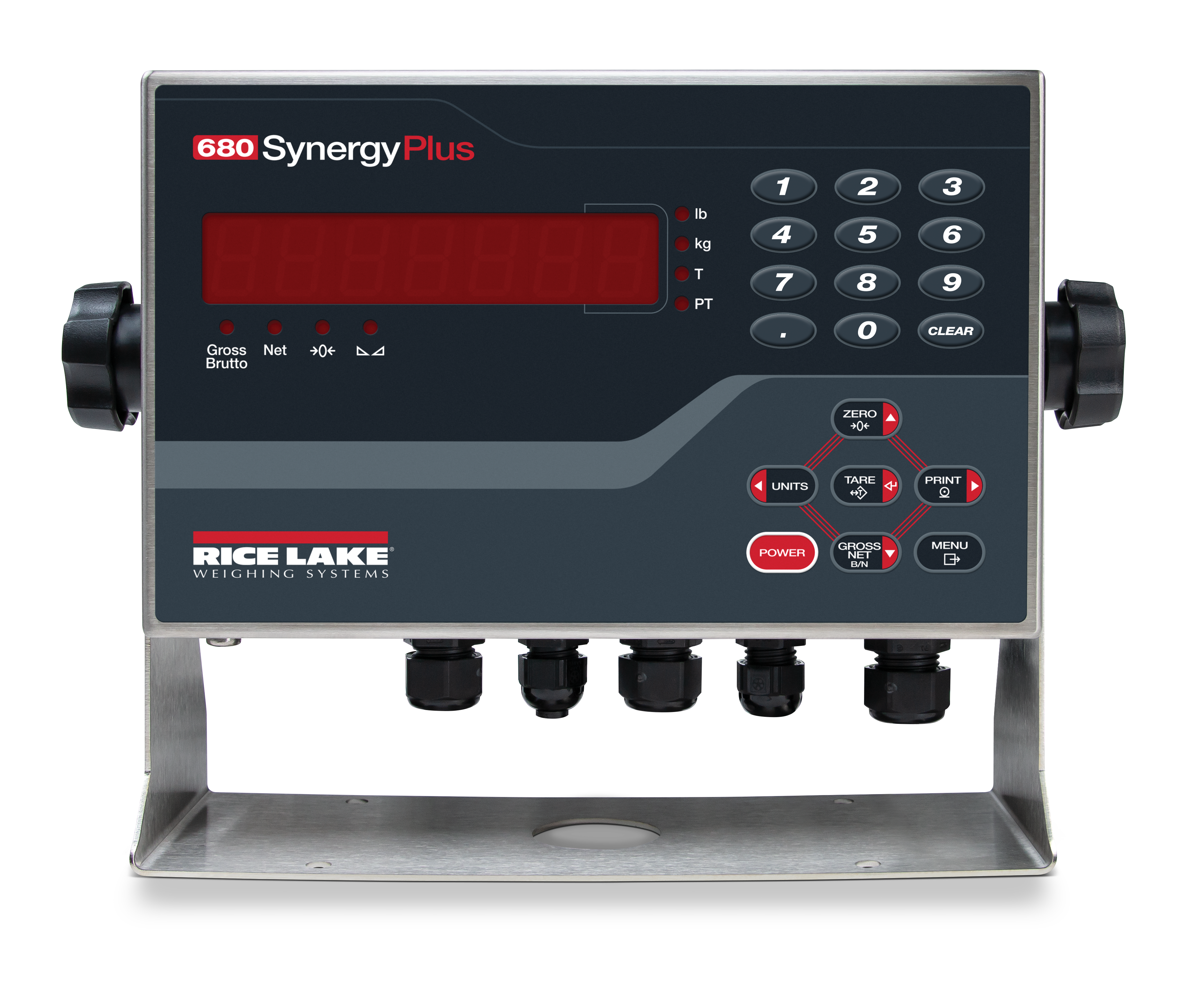

Indicator
- Bright seven-digit, seven-segment LED display
- Battery backed time and date
- Full numeric keypad
- Communication ports
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

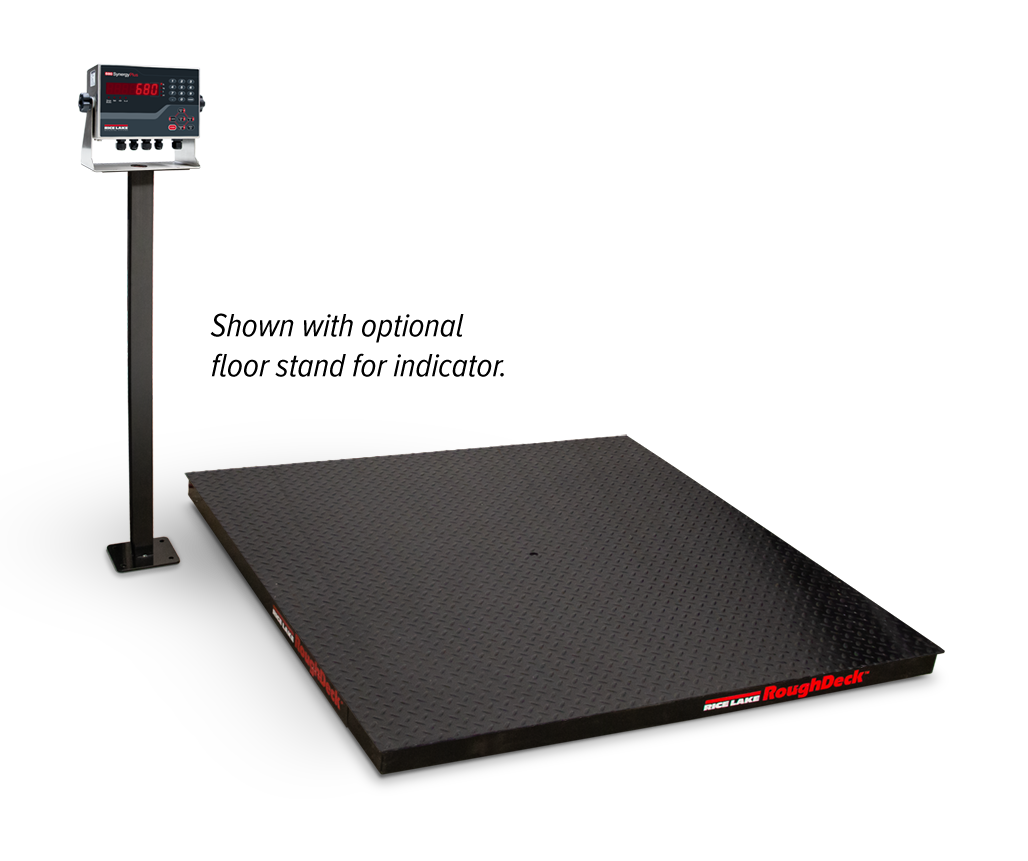

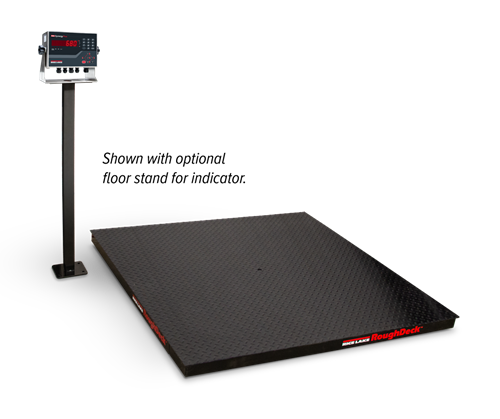

Complete Floor Scale Package with RoughDeck® HP Floor Scale and 680 Synergy Series Indicator
Rice Lake’s RoughDeck HP floor scale has a heavy-duty industrial design and a structural steel channel frame. It has four NTEP-certified alloy steel shear beam load cells and a 20-foot SURVIVOR® EL147HE hostile environment load cell cable. The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal® junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck.
This package pairs the 680 Synergy Series digital weight indicator with the RoughDeck. Rice Lake’s 680 has an LED display, battery-backed time and date, and a full numeric keypad with multiple communication ports. Constructed with durable 304 stainless steel and able to withstand harsh washdowns, the 680 maximizes process efficiency in virtually any environment or application.
RoughDeck Specifications
|
End Load Capacity: Cable Length: |
Threaded Eyebolt: Warranty (limited): |
Approvals: |
680 Indicator Specifications
|
Communication Ports: Display: |
Annunciators: Keys/Buttons: Rating/Material: |
Approvals: |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Getting to the Point of Point Loading |  Email |
Floor Scales | Articles |
Parts
115 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 196661 | Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/680 Synergy 115VAC Factory Calibrated |
List Price: $3,095.00 |
|
| 196662 | Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/680 Synergy 115VAC Factory Calibrated |
List Price: $3,095.00 |
230 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand
115 VAC 4 ft x 4 ft x 3.5 in RoughDeck (Canadian Weights and Measures Approved) Indicator Package with Tilt Stand
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 18777 | Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted |
List Price: $38.00 |
|
|
19352
|
Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy
|
List Price: $250.00 |
|
| 126384 | Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy |
List Price: $275.00 |
|
| Consult | Access ramps, pit frames, bumper guards and portability frames available |
Call for price |
Related Products
RoughDeck® HP, HP-H, SS and HE Access Ramps
RoughDeck access ramps are available to compliment all RoughDeck floor scales, from hostile environment to stainless steel construction and a vast array of sizes and capacities.
RoughDeck® HP, HP-H, SS, and HE Pit Frames
Rice Lake’s RoughDeck® pit frames are used for pit installations of the RoughDeck floor scale.
RoughDeck® HP, HP-H, SS and HE Bumper Guards
To protect your RoughDeck floor scale from unwanted and potentially damaging contact, install the RoughDeck bumper guards on any or all sides.
RoughDeck HP and SS Forklift Portability Frame
The RoughDeck® HP and SS Portability Frame has an indicator stand mount bracket for 120/120 Plus, 882IS/882IS Plus with battery, 880/880 Plus, 480/480 Plus and 680 Synergy.
