RoughDeck® SD Sanitary Deck Floor Scale

  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid stainless steel tube frame
  • Four stainless steel, welded sealed, shear beam load cells
  • Load cells protected on all four sides
  • 20 ft (6 m) of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote junction box can be located up to 10 ft away from scale
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Removable polyethylene deck (deck weight: 80 lb (36.6 kg) on 4 × 4 ft size)
  • Side brackets to hold deck during washdown
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

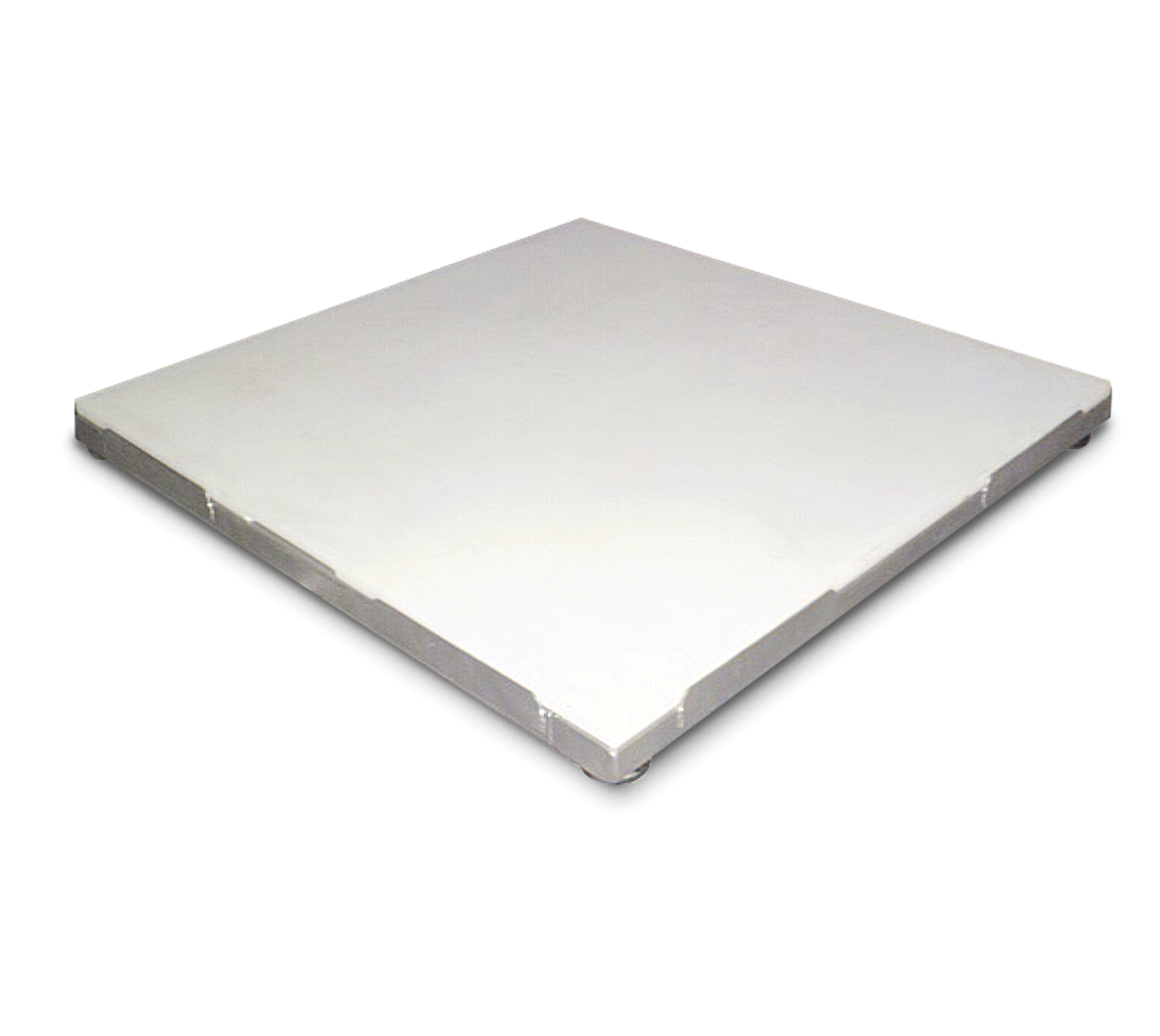

RoughDeck SD

Sanitary Floor Scale

The RoughDeck SD sanitary floor scale offers a removable polyethylene deck for simplified sanitization procedures. It also has top-performing RoughDeck features, including all stainless steel channel frames, protected load cells and adjustable SUREFOOT™ support feet. Side brackets assure deck stability during washdown. A rigid, 304 stainless steel tube frame helps protect load cells on all sides, and a remote junction box can be mounted up to 10 feet away from the scale for worry-free washdown routines.

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Scale Weldment:
AISI304L, glass bead blasted for even appearance

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Continuous

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 92-001, Class III 5,000 d

Resources/Downloads

Title View Email Category Type
Getting to the Point of Point Loading Email Floor Scales Articles
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
RoughDeck SD Catalog Page Download Email

Title Download Email
RoughDeck SD Replacement Parts Catalog Page Email

Title Collateral Wizard Request Download Email Category
Washdown Solutions Request Download Email Washdown Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Parts

Part # Description List Price Cart/Quote
50385 Scale,Floor Roughdeck SD 2.5x2.5HPSD-2K 2-1/2ftx2-1/2ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $4,630.00
50386 Scale,Floor Roughdeck SD 3x3HPSD-2K 3ftx3ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $4,760.00
50387 Scale,Floor Roughdeck SD 4x4HPSD-2K 4ftx4ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $4,995.00
50388 Scale,Floor Roughdeck SD 4x4HPSD-5K 4ftx4ftx4-3/8 5000lb 20ft NTEP III SST HE Plastic

List Price: $4,995.00
50389 Scale,Floor Roughdeck SD 4x4HPSD-10K 4ftx4ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic

List Price: $5,245.00
50390 Scale,Floor Roughdeck SD 4x5HPSD-2K 4ftx5ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $5,485.00
50391 Scale,Floor Roughdeck SD 4x5HPSD-5K 4ftx5ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic

List Price: $5,485.00
50392 Scale,Floor Roughdeck SD 4x5HPSD-10K 4ftx5ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic

List Price: $5,725.00
50393 Scale,Floor Roughdeck SD 4x6HPSD-2K 4ftx6ftx5-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $5,980.00
50394 Scale,Floor Roughdeck SD 4x6HPSD-5K 4ftx6ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic

List Price: $5,980.00
50395 Scale,Floor Roughdeck SD 4x6HPSD-10K 4ftx6ftx6-3/8 10,000lb 20ft NTEP III SST HE Plastic

List Price: $6,580.00
50396 Scale,Floor Roughdeck SD 5x5HPSD-2K 5ftx5ftx5-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $5,980.00
50397 Scale,Floor Roughdeck SD 5x5HPSD-5K 5ftx5ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic

List Price: $5,980.00
50398 Scale,Floor Roughdeck SD 5x5HPSD-10K 5ftx5ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic

List Price: $6,580.00
50399 Scale,Floor Roughdeck SD 5x7HPSD-2K 5ftx7ftx6-3/8 2000lb 20ft NTEP III SST HE Plastic

List Price: $8,280.00
50400 Scale,Floor Roughdeck SD 5x7HPSD-5K 5ftx7ftx6-3/8 5000lb 20ft NTEP III SST HE Plastic

List Price: $8,280.00
50401 Scale,Floor Roughdeck SD 5x7HPSD-10K 5ftx7ftx6-3/8 10,000lb 20ft NTEP III SST HE Plastic

List Price: $9,370.00

Options

Part # Description List Price Cart/Quote
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680/682 Synergy, 380/380X Synergy

List Price: $340.00
18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

Consult
NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Consult
