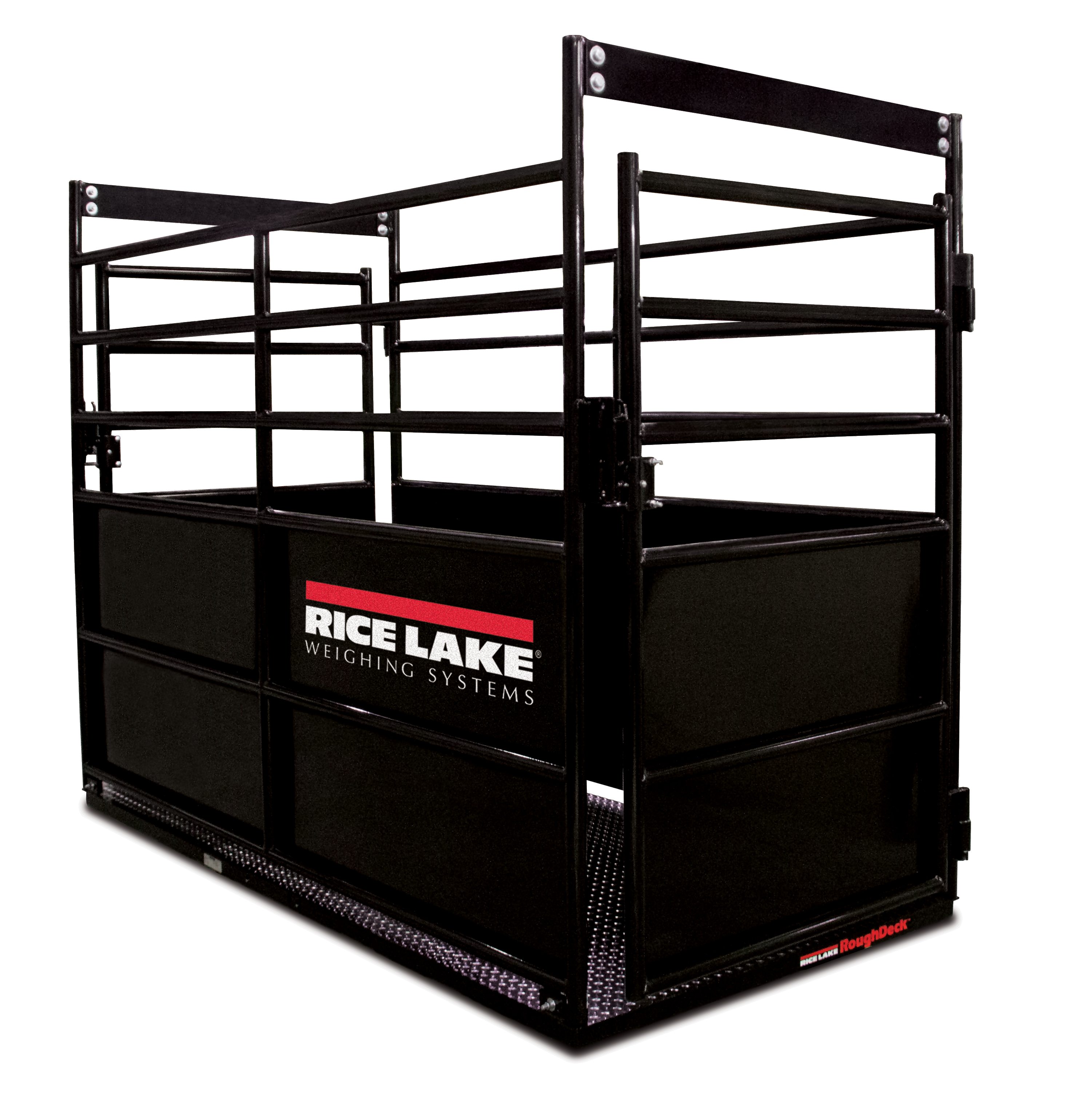

RoughDeck® SLV Single Animal Livestock Scale

  • Mild steel construction
  • Rugged diamond safety treadplate deck
  • Rigid structural steel channel frame
  • NEMA Type 4X stainless steel side-access junction box without quick connector
  • Signal trim summing board
  • Four adjustable stainless steel SUREFOOT™ support feet
  • 20 ft (6 m) SURVIVOR® EL147HE hostile environment load cell cable
  • Four alloy steel load cells

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Livestock Scale for the Toughest of Jobs

The diamond treadplate and rigid structural-steel channel frame provide durability for weighing sheep, goats, cattle, hogs, horses and more. The SLV animal livestock scale can be customized for retrofit or unique applications.

End Load Capacity:
125% full scale

Outside Dimension:
(L x W) 8 × 3 ft
(L x W) 8 × 4 ft

Cable Length:
20 ft (6 m)

Capacity:
8 × 3 ft: 4,000 × 1 lb
8 × 4 ft: 4,000 × 1 lb

Warranty:
Two-year limited  (scale only)

Approvals:
NTEP CC 92-001 Class III 4,000d

Capacity not to exceed 4,000 lb x 1 lb and platform size not to exceed 32 sq ft

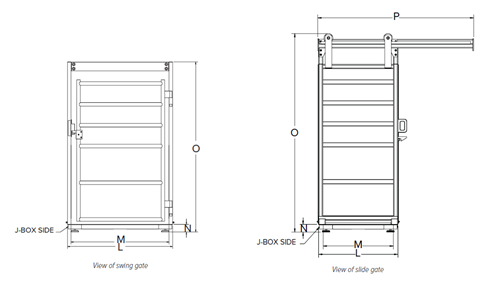

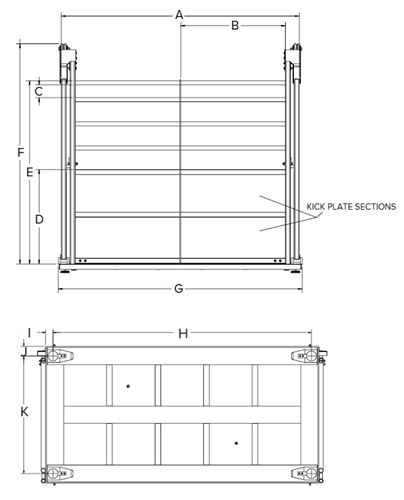

Dimensions

3 ft x 8 ft
A 99.12 in I 2.63 in
B 45.56 in J 3.38 in
C 7.88 in K 29.25 in
D 36.95 in L 36.00 in
E 65.45 in M 32.75 in
F 74.00 in N 3.50 in
G 95.00 in O 77.58 in
H 90.75 in
4 ft x 8 ft
A 99.12 in I 2.63 in
B 45.56 in J 3.38 in
C 7.88 in K 41.25 in
D 36.95 in L 48.00 in
E 65.45 in M 44.75 in
F 74.00 in N 3.50 in
G 95.00 in O 77.58 in
H 90.75 in

Resources / Downloads

Title View Email Category Type
Five Generations on Lone Pine Farm View Email Livestock Scales Articles|Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story

Title Download Email
RoughDeck SLV Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck SLV Single Animal Livestock Scale Floor Scale Installation Manual A Download Email Agriculture|Livestock Scales No

Title Collateral Wizard Request Download Email Category
RoughDeck SLV Livestock Scale Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Importance of Cattle Shrink Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales

Title View Download Email Category
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales

Parts

Part # Description List Price Cart
103617 Scale, Animal Roughdeck 3x8 SLV-4K 3ftx8ftx3-1/2 4,000lb 20ft w/o quick Connect NTEP Modified to Fit Gate and Rack.

List Price: $3,100.00

78452 Scale, Animal Roughdeck 3x8SLV-4K 3ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP

List Price: $3,100.00

103619 Scale, Animal Roughdeck 4x8 SLV-4K 4ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP Modified to Fit Gate and Rack.

List Price: $3,200.00

78453 Scale, Animal Roughdeck 4X8SLV-4K 4ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP

List Price: $3,200.00

RoughDeck SLV 4,000 lb Bundle Package (Ships Assembled)

Options

Part # Description List Price Cart
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

List Price: $50.00

Consult Smooth deck instead of diamond safety tread plate

Call for price

Consult Stainless steel load cells (RL32018S IP66) and hardware

Call for price

Consult Stainless steel hermetically sealed load cells (RL32218S-HE IP69K) and hardware

Call for price

Consult Angle iron bolted to scale for wood deck provisions (wood to be supplied by customer)

Call for price

Consult Rubber mat

Call for price

Consult Slide gate

Call for price
