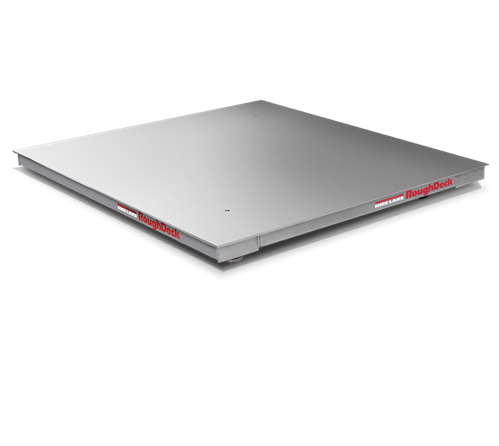

RoughDeck® SS Stainless Steel Floor Scale

  • Rugged non-corrosive design
  • 304 stainless steel construction
  • Rigid stainless steel channel frame
  • Four stainless steel, NTEP Certified, IP66 shear beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Side access junction box
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Smooth stainless steel deck
  • Four adjustable stainless steel SUREFOOT™ support feet

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

The Toughest, Most Accurate Floor Scale Available

The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.

A rigid six-inch, 304 stainless steel channel frame and smooth top plate provide a durable scale deck. For added corrosion resistance, four NTEP Certified stainless steel load cells, a stainless steel TuffSeal summing junction box and EL147HE hostile environment load cell cable complete the RoughDeck SS package.

The channel frame provides added protection by enclosing the load cells, cable and junction box inside, away from chemicals and other industrial elements.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

End Load Capacity:
200% full scale at 1,000 lb
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) (for connecting junction box to indicator)

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty:
RoughDeck SS weldment five years, load cells two years, all other components one year

Approvals:
NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-4827, Class III 5,000 d

Resources / Downloads

Title View Email Category Type
Getting to the Point of Point Loading Email Articles
Team Spirit on a Grand Scale Email Floor Scales Application Story

Title Download Email
RoughDeck SS Catalog Page Download Email
RoughDeck HP, SS & HE Pit Frame Concrete Details Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck SS, HE, HP, HP-H, HC and Altralite C Download Email Floor Scales|Platform Scales No

Title Download Email
RoughDeck SS Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck HP, HP-H, SS and HE Series Floor Scales Request Download Email Floor Scales|Platform Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Title Download Email
RoughDeck® SS Lifting Eyebolt Table Download Email

Parts

NTEP Approved

Part # Description List Price Cart
18663 Scale,Floor Roughdeck 2.5x2.5HPSS-2K 2-1/2ftx2-1/2ftx3-1/2 2,000 lb 20ft NTEP III SST

List Price: $2,995.00

46239 Scale,Floor Roughdeck 3x3HPSS-1K,3ftx3ftx3-1/2in,1000lb-20ft NTEP III SST

List Price: $3,140.00

18664 Scale,Floor Roughdeck 3x3HPSS-2K 3ftx3ftx3-1/2 2,000 lb 20ft NTEP III SST

List Price: $3,140.00

46241 Scale,Floor Roughdeck 4x4HPSS-1K,4ftx4ftx3-1/2,1000lb-20ft NTEP III SST

List Price: $4,255.00

18665 Scale,Floor Roughdeck 4x4HPSS-5K 4ftx4ftx3-1/2 5,000 lb 20ft NTEP III SST

List Price: $4,255.00

18666 Scale,Floor Roughdeck 4x4HPSS-10K 4ftx4ftx3-1/2 10,000 lb 20ft NTEP III SST

List Price: $6,250.00

18667 Scale,Floor Roughdeck 4x5HPSS-5K 4ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST

List Price: $4,855.00

18668 Scale,Floor Roughdeck 4x5HPSS-10K 4ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST

List Price: $7,235.00

18671 Scale,Floor Roughdeck 5x5HPSS-5K 5ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST

List Price: $5,420.00

18672 Scale,Floor Roughdeck 5x5HPSS-10K 5ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST

List Price: $8,185.00

18676 Scale,Floor Roughdeck 5x7HPSS-10K 5ftx7ftx3-1/2 10,000 lb 20ft NTEP III SST

List Price: $10,720.00

18675 Scale,Floor Roughdeck 5x7HPSS-5K 5ftx7ftx3-1/2 5,000 lb 20ft NTEP III SST

List Price: $7,665.00

Measurement Canada Approved

Options

Part # Description List Price Cart
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $310.00

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

List Price: $45.00

Consult Stainless steel diamond treadplate safety deck

Call for price

Consult Access ramps, pit frames, bumper guards and portability frames available

Call for price

Consult Four drilled deck holes for scale height adjustment

Call for price

Consult Top access junction box

Call for price

Consult Forklift channel option (up to 5 ft x 7 ft 10,000 lb, accommodates fork tines no larger than (WxH) 5 in x 2 in, fork entry is an opposite side of junction box location)

Call for price

NA Stainless steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware

Call for price

NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Call for price
