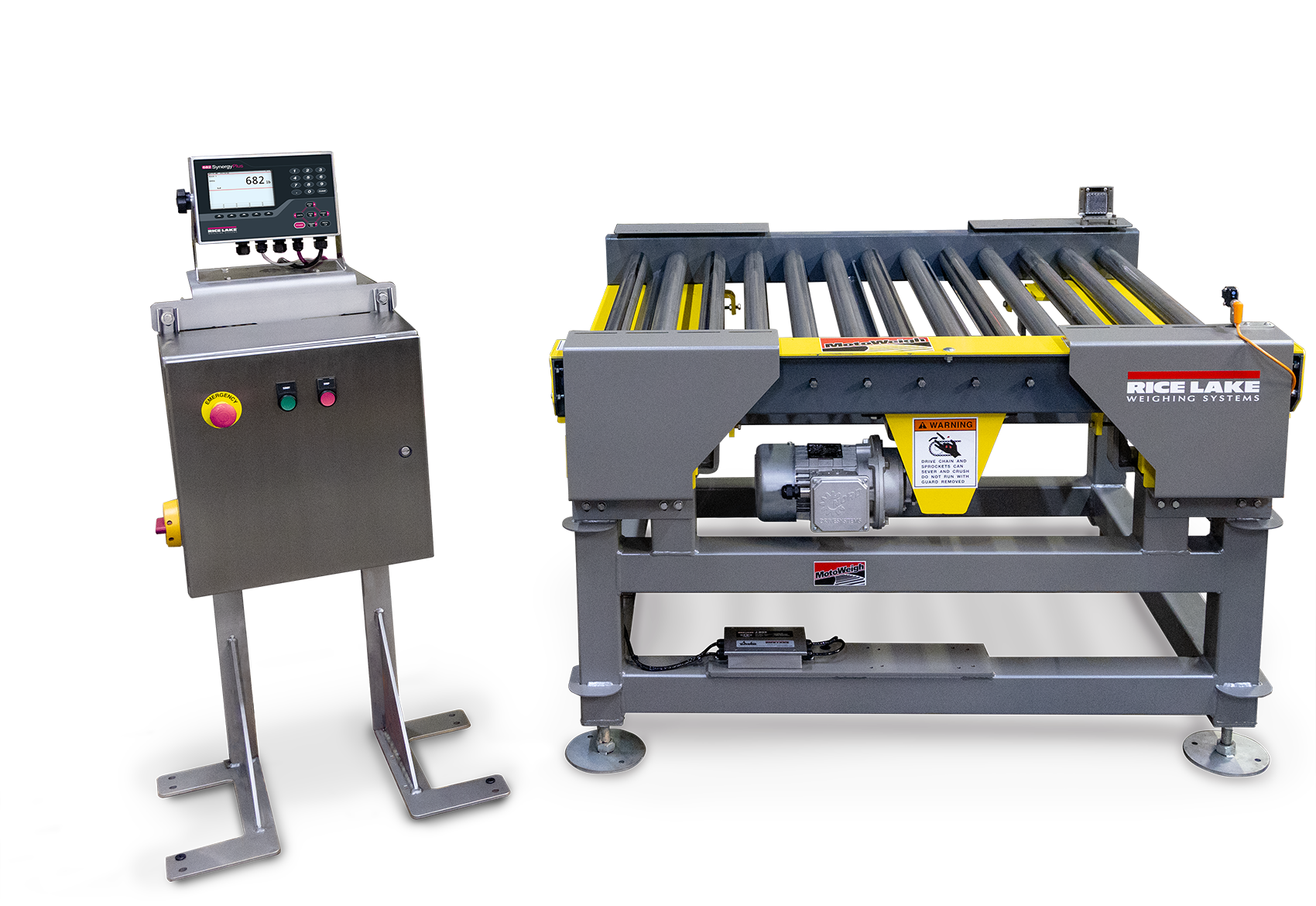

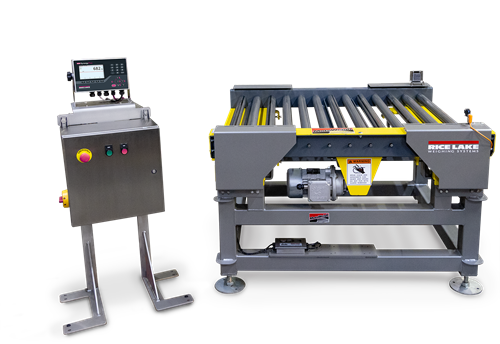

RT-D Roller Top In-motion Checkweigher and Conveyor Scale

Package Size Range:
8 × 4 × 4 to 44 × 32 × 24 in

Power:
Line voltage: 100 to 240 VAC, 50/60Hz
Optional: 9 to 36 VDC

Power Consumption:
3.2W (AC) one 350 ohm load cell, 15W max;
4W four 350 ohm load cells or eight 700 ohm load cells

Excitation Voltage:
10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-5 mV to +70 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O, 5 V logic

(Optional) Analog Output:
16-bit resolution, voltage output 0 to 10 VDC, current output 0 to 20 mA/4 to 20 mA

(Optional) Relay Board:
Four normally open dry contact relays and can switch 20 to 250 VAC @ 3A or 30 VDC @ 3A. Use of external fusing to limit current is recommended. Relay COM-NO is transient protected to 400V @ 600W

Communication Ports:
Two full-duplex RS-232
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Wi-Fi

Annunciators:
Zero, Gross/Net, Tare, Wi-Fi, WPAN

Display:
Five-inch LCD, 800 × 480 pixel, 500 NIT

Keys/Buttons:
Flat membrane panel, tactile feel
18 buttons plus five softkeys and power

Dimensions:
(L × W × H)
10.0 × 4.0 × 8.6 in
(254 × 102 × 218 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP69K (IP66 with RJ45 option)
AISI 304 Stainless Steel

Weight:
6.25 lb (2.84 kg)

Warranty:
Two-year limited

Approvals:
NTEP 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C
OIML R76 2006 A NL1 19.56R3
NOM
EU Eval Certificate TC11562
CE Listed
UKCA
cULus
NMI
