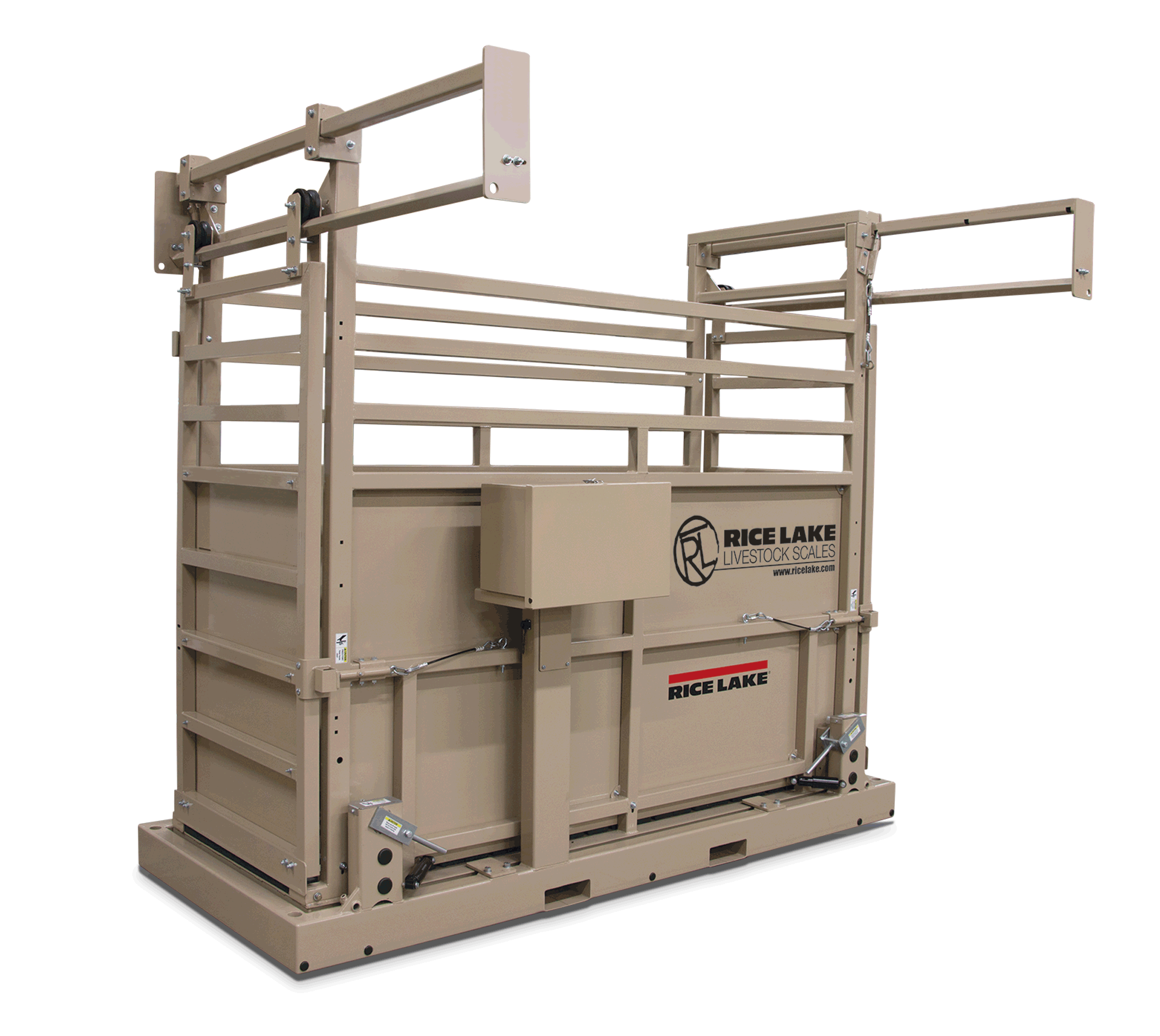

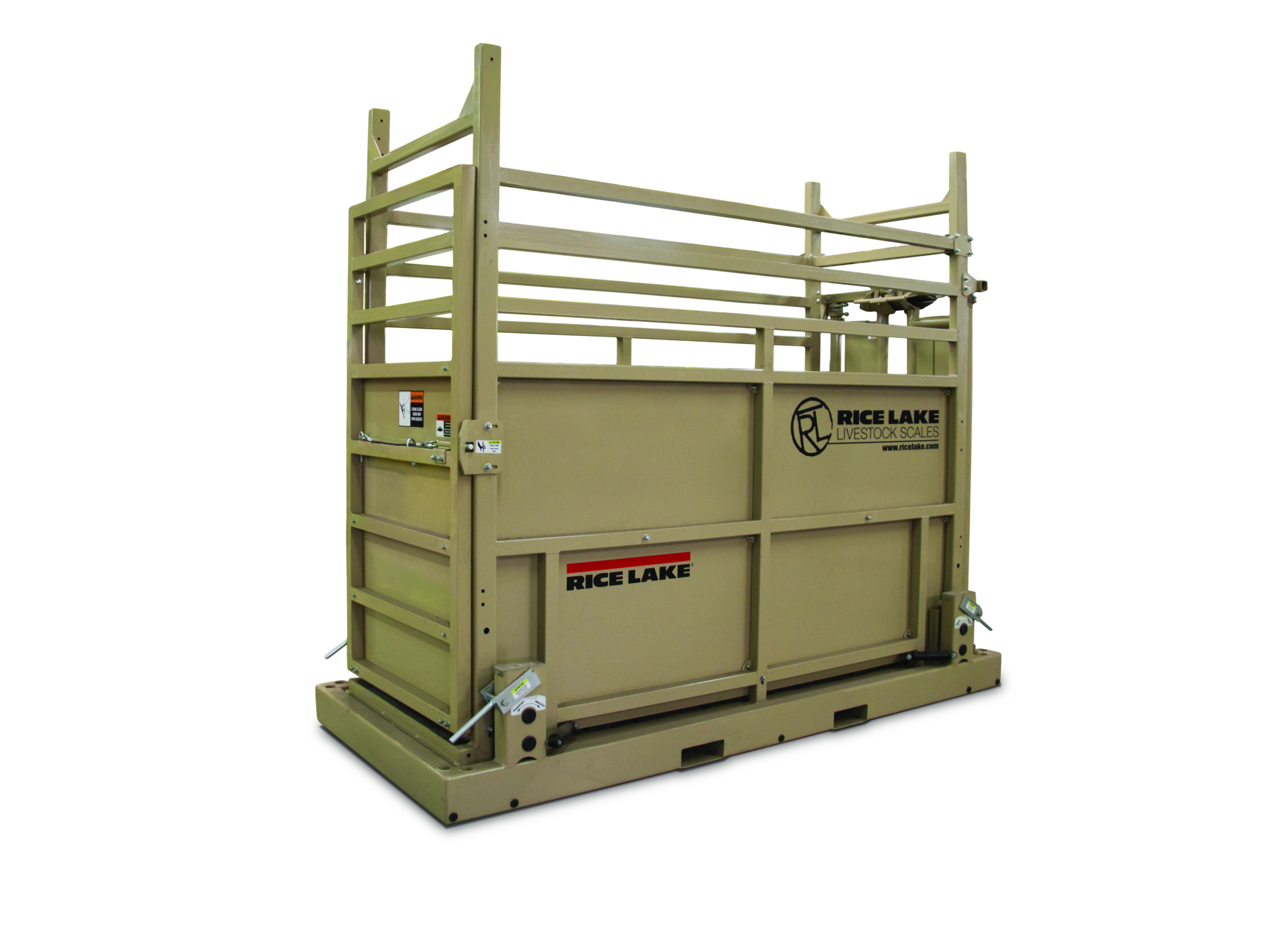

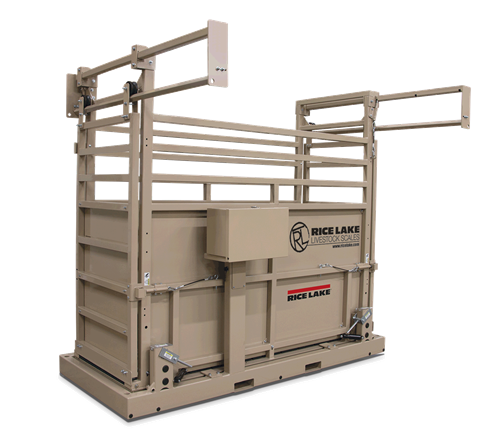

SAS Single Animal Scale

  • Gate configurations: Swing gates, sliding gates, combination swing and slide gate, or head gate with swing or slide gate
  • Solid 48-inch kick panel sides
  • Ships assembled
  • Durable X-Lug or X-Plank floor over steel
  • Rugged all-weather powder paint
  • Pedestal is included

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

A Livestock Scale Ideal for Single Animal Weighing

The SAS single animal scale offers safe and reliable weighing for a wide range of livestock including cattle, bison, horses, sheep, swine and exotics. With a load capacity of up to 5,000 pounds and Legal for Trade readability in one pound increments, the SAS is ideal for county fairs, youth agriculture organizations, university research centers, veterinary practices and small- to medium-size operations that do not require a multi-animal scale.

Designed for State and County Fairs

With a load capacity of up to 5,000 pounds and Legal for Trade readability in one pound increments, the SAS is ideal for county fairs, youth agriculture organizations, university research centers, veterinary practices and small- to medium- size operations that do not require a multi-animal scale.

Full Scale Capacity:
5,000 lb, 1 lb increments

Warranty:
Two-year limited

Approvals:
NTEP 99-091
Measurement Canada AM-4847

Resources / Downloads

Title View Email Category Type
5 Factors to Consider when Purchasing a Livestock Scale Email Agriculture|Livestock Scales Articles
Fair Weight View Email Agriculture|Livestock Scales Application Story
Five Generations on Lone Pine Farm View Email Livestock Scales Articles|Application Story
Legal for Trade Livestock Scales at County Fairs Email Agriculture|Livestock Scales Articles
The Wisconsin Brand View Email Livestock Scales Articles|Application Story
Weighing Livestock for Healthy Profits Email Agriculture|Livestock Scales Articles

Title Download Email
SAS Single Animal Scale Catalog Page Download Email
Allflex RS420 Livestock Ear Tag Reader Catalog Page Download Email

Title Version Revision Download Email Category Archived
SAS Single Animal Scale Installation Manual A Download Email Livestock Scales|Agriculture No
920i Rate of Gain Program Operation Manual D Download Email Agriculture|Livestock Scales|Software No

Title Download Email
SAS Single Animal Scale Replacement Parts Catalog Page Download Email
SAS Slide Gate Replacement Parts Catalog Page Download Email
SAS Swing Gate Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales
SAS Single Animal Scale Request Download Email Livestock Scales

Title View Download Email Category
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales
Rice Lake SAS Series Livestock Scale Application: 360° VR Video View Email Livestock Scales
SAS Single Animal Scale Overview View Download Email Livestock Scales

Title Download Email Category
Legal for Trade Livestock Scales at County Fairs White Paper Download Email Livestock Scales

Parts

Part # Description List Price Cart / Quote
171255 Scale,Single Animal PKG One Sliding Gate & One Swing Gate, 109 Inches X 85 Inches Inside Dimensions 98.15 Inches X 33.79 Inches Height = 97.87 Inches 5,000 lb Capacity X 1 lb Division

Consult

172378 Scale, Single Animal PKG Two Swing Gates, 109 Inches X 46.81 Inches Inside Dimensions 98.15 Inches X 33.79 Inches Height = 97.87 Inches 5,000 lb Capacity X 1 lb Division

Consult

172379 Scale,Single Animal PKG Two Sliding Gates, 109 Inches Long X 85 Inches Wide Inside Dimensions 98.15 Inches X 33.79 Inches Height = 97.87 Inches 5,000 lb Capacity X 1 lb Division

Consult

176320 Scale,Single Animal PKG One Head Catch Gate and one Swing Gate, 109 Inches Long X 85 Inches Wide Inside Dimensions 98.15 Inches X 33.79 Inches Height = 97.87 Inches 5,000 lb Capacity X 1 lb Division

Consult

176550 Scale,Single Animal PKG One Head Catch Gate and one Slide Gate, 109 Inches Long X 85 Inches Wide Inside Dimensions 98.15 Inches X 33.79 Inches Height = 97.87 Inches 5,000 lb Capacity X 1 lb Division

Consult

Options

Part # Description List Price Cart / Quote
172852 Tag Reader,AWR300 Portable Stick Reader with Reader, IEC Cable, Data Cable and External Power Adapter Recharger ALLFLEX AWR300

List Price: $3,100.00

226036 Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series With 4 Pin Quick Connect Ag Scale Cable .

List Price: $765.00

206433 Power Cord Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $54.00

172854 Indicator,920i-Ag 920i-Ag Digital Weight Indicator With Rate Of Gain Software Installed 115 VAC Single Channel A/D For Stationary Scales

Consult

205351 Weigh Center,920i with Rate of Gain, Printer, and Cabling SAS-M AG Scale, AC Powered

Consult

173139 Weigh Center,920i with Rate of Gain, Printer, and Cabling SAS-M AG Scale

Consult

177788 CATTLE SCALE TRANSIENT PK Transient Protection Package, Cattle Scale

Consult

23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $685.00

15547 Cable Assy,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

131670 Cable Assy,4 Pin Male CONN 96 Inch, AG Scale Weigh Center

Consult

153765 Battery Box ASSY, No Compressor, MAS-P Less Compressor For 12VDC Operation of MAS-P Portable Multiple Animal Scale

Consult

189536 Solar Charger,3W Maintainer, Retrofit Kit, All AG Scale Battery Boxes

Consult

Consult Factory scale assembly and calibration (requires local certification)

Consult

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products Fdb44b83b49643a8ada95449a61b51b4 Orig

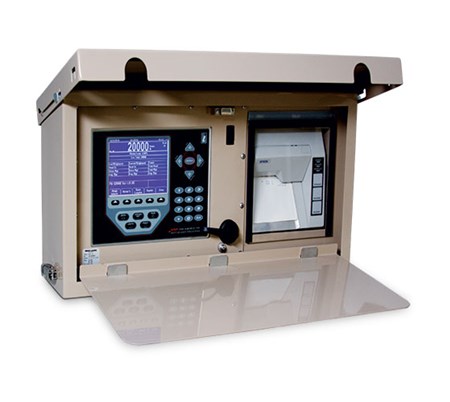

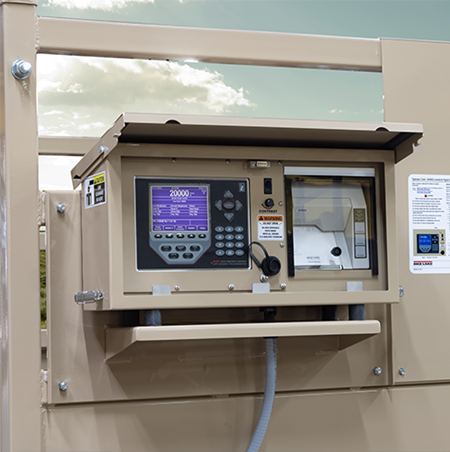

920i® with Group Weighing Software Livestock, Multiple Animal, Digital Weight Indicator

This Livestock Weigh Center features a built-in 920i indicator and ticket printer in a weatherproof enclosure.

Portals 0 Products B1350f8e443b47119c6305d890a5f51e Orig

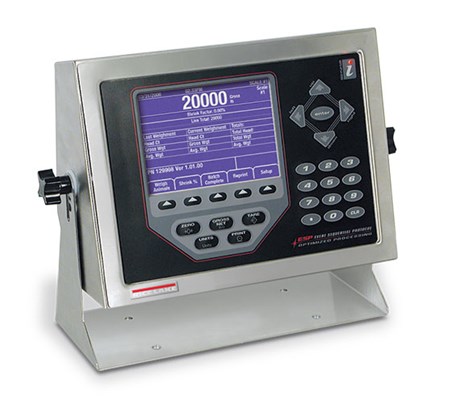

920i® with Rate of Gain Software Livestock, Single Animal, Digital Weight Indicator

The 920i® Livestock Indicator can be equipped with group weighing or single animal Rate of Gain software. With its USB port, animal weight results can be transferred to a flash drive and uploaded to a PC database or spreadsheet.
