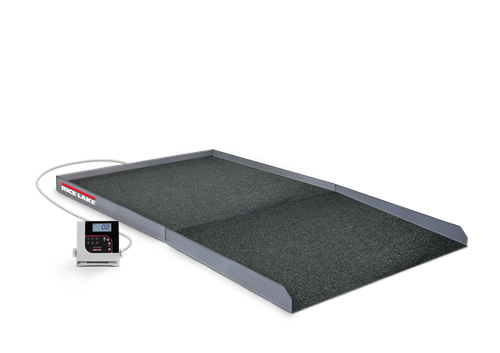

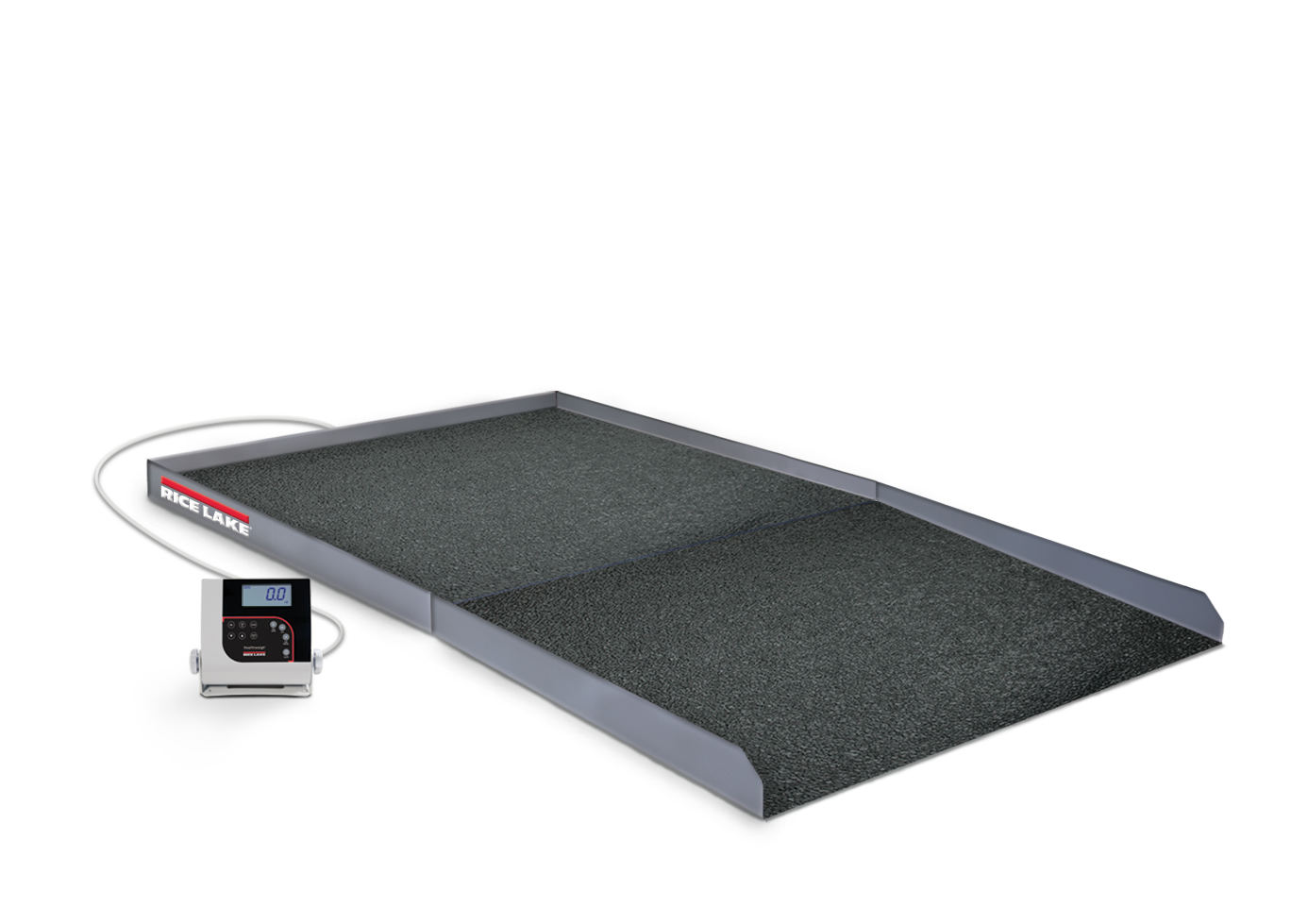

SB-1150 Summit™ Bariatric Wheelchair Scale

Request Quote

  • Heavy-duty mild steel construction
  • Single ramp

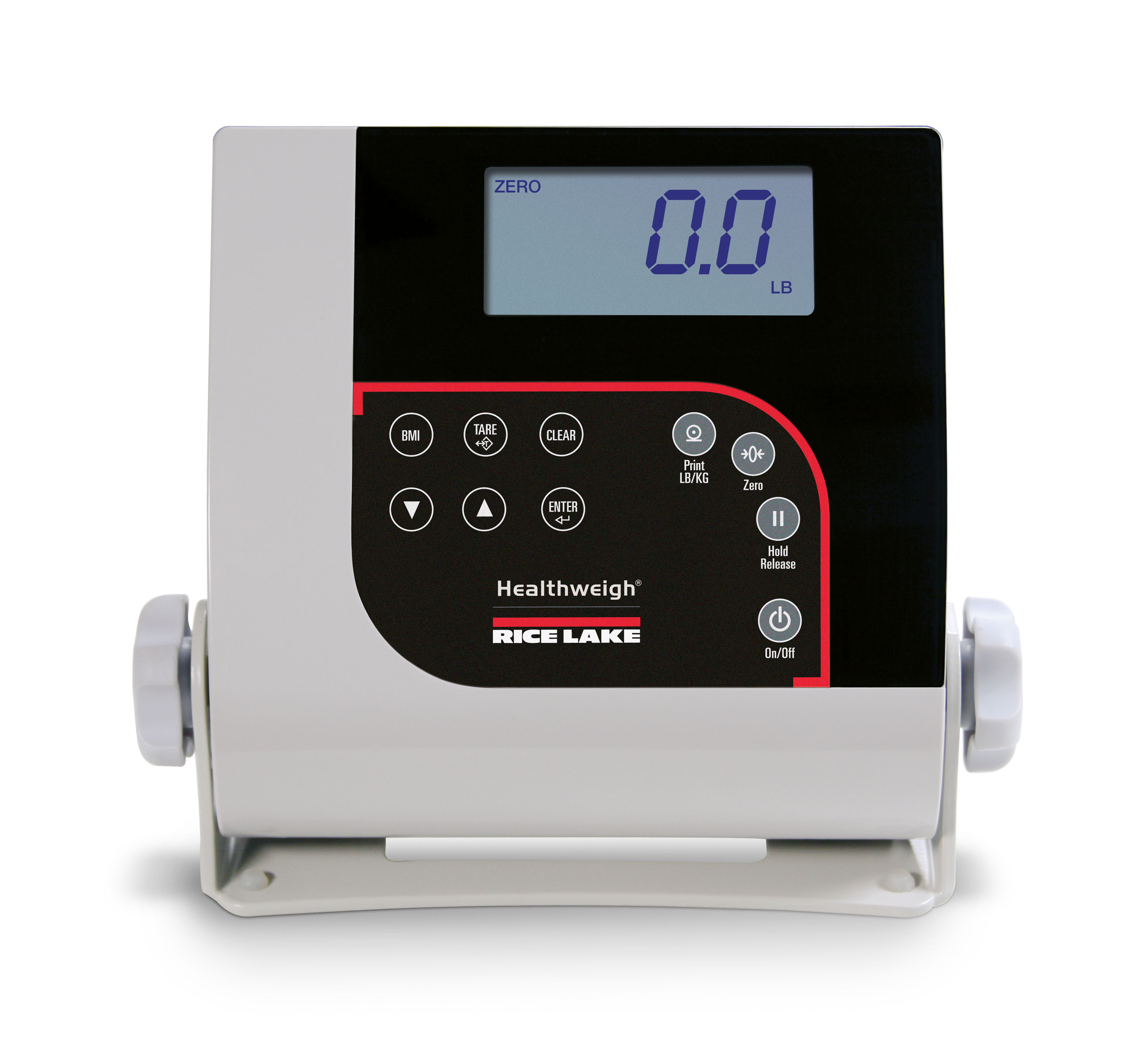

  • Large 1-inch LCD display
  • Motiontrap™ movement compensation technology
  • Unit of measure toggle or locking
  • EHR capable
  • USB or Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • 10 ft cable between scale base and display
  • Factory calibrated

Same-day Shipping Available

Bariatric Wheelchair Scale

The Summit™ SB-1150 bariatric wheelchair scale provides exceptional performance in environments where typical wheelchair scales are not large enough to meet patient needs. With its large platform and easy-access ramp, the heavy-duty Summit SB-1150 accommodates wheelchairs without sacrificing safety. The scale and ramp are equipped with a non-skid rubber surface and raised guide rails. Convenient keypad tare reduces errors and increases efficiency.

Capacity:
1,000 lb x 0.2 lb (450 kg x 0.1 kg)

Platform Dimensions:
(W x L x H) 36 in x 36 in x 4 in

Ramp Dimensions:
(W x L x H) 36 in x 28.5 in x 4 in

Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50° F to 104° F (10° C to 40° C)

Warranty:
Two-year limited warranty

Approvals:
c-Met (pending)

Dimensions
  Inches Centimeters
A 36 91.4
B 36 91.4
C 28.5 72.4
D 36 91.4
E 4 10.2
F 1 2.5





Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
150706 SB-1150 49 48 24 363 407 407
205977 SB-1150BLE 49 48 24 363 407 407





Resources / Downloads

Title Download Email
SB-1150 Summit Bariatric Wheelchair Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Summit SB-1150 Technical Manual H Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales No

Title Download Email
SB-1150 Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Wheelchair Scales: Slip Resistant Metal Top Request Download Email Health Scales|Wheelchair Scales
Medical Product Guide Request Download Email Health Scales

Title Version Size Release Date Download Email
RS-232 Communication Files 1 31.3 KB 10/19/2009 Download Email
Health Scales USB Driver - Titanium 10-button model 1 1.2 KB 06/17/2014 Download Email

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales
How to Measure a Wheelchair to Find the Right Size Scale View Download Email Wheelchair Scales

Title Download Email Category
SB-1150 Bariatric Wheelchair Scale Warranty Download Email

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales

Parts

Part # Description List Price Cart
150706 Scale, SB-1150 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries.

List Price: $1,950.00

205977 Scale, SB-1150BLE 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries.

List Price: $2,185.00

Options

Part # Description List Price Cart
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved

List Price: $25.00

102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00

81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00

186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45

List Price: $69.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

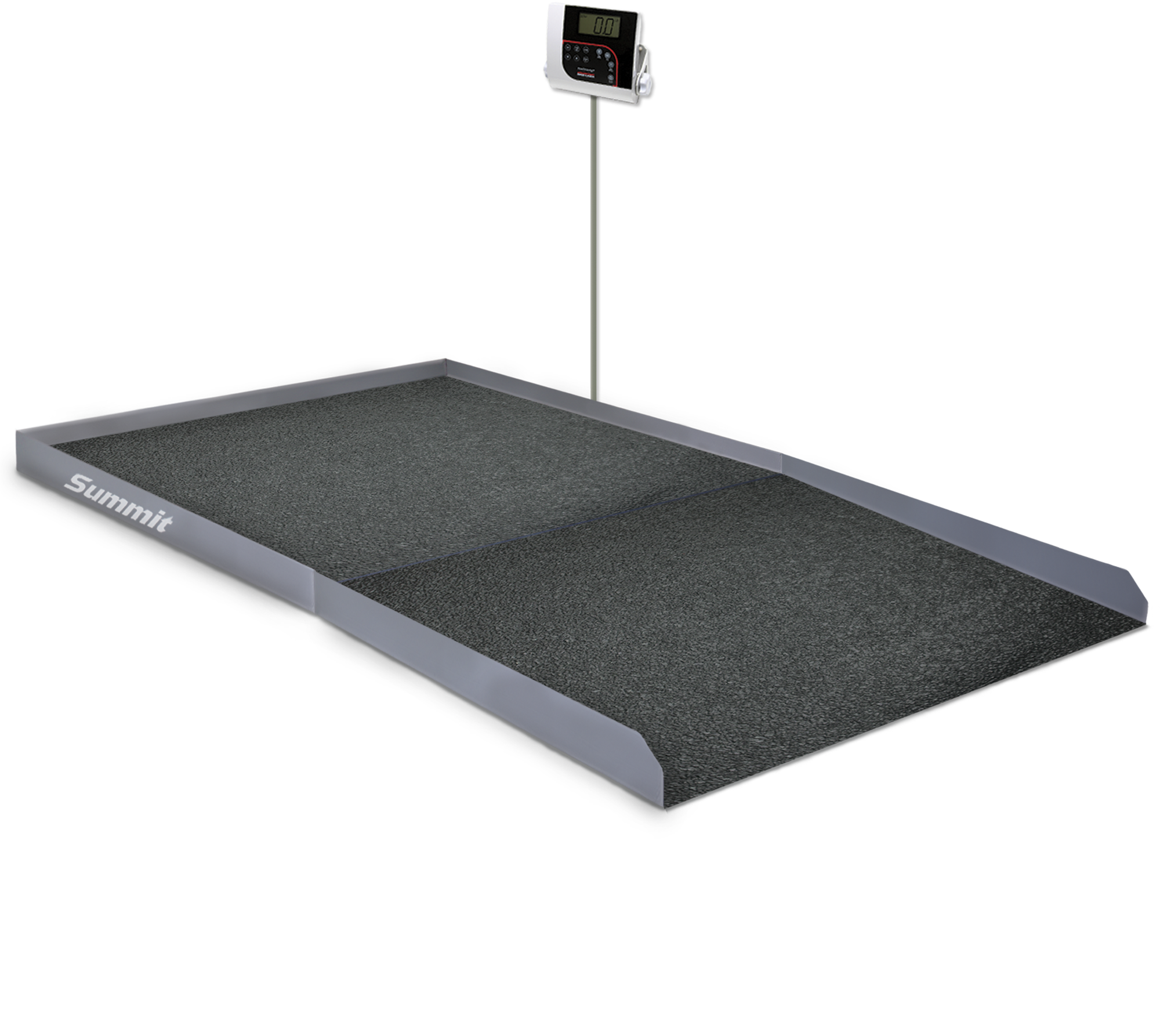

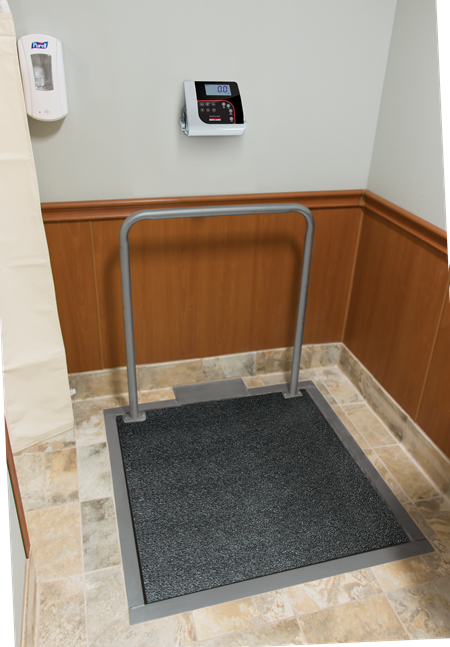

SD-1150-WP Dialysis Wheelchair Scale
