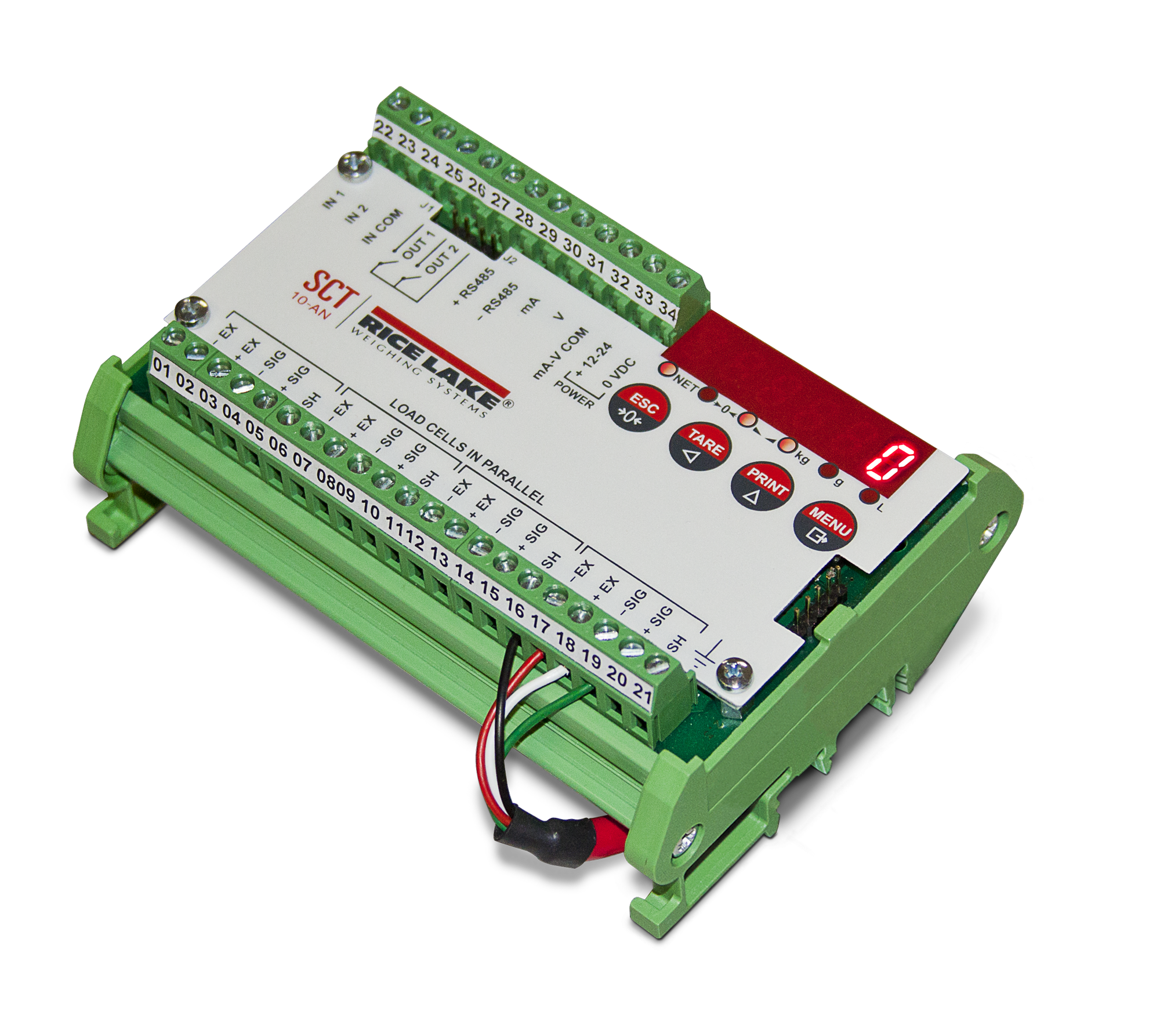

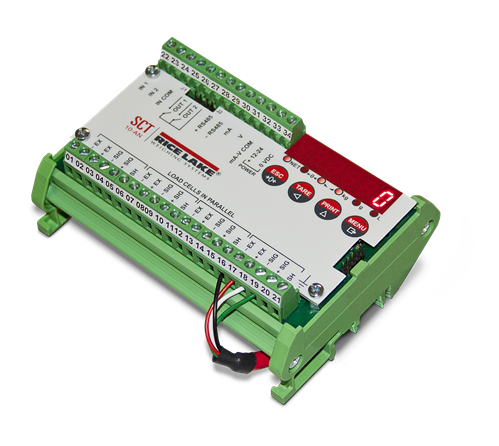

SCT-10 Signal Conditioning Transmitter

Power:
Input: 12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5VDC, 120mA, 8 × 350 ohm load cells

Analog Signal Input Range:
+/- 19.5 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
80 Hz

Resolution:
Internal: 16,000,000 counts
Display: 999,999

System Linearity:
± 0.01% full scale

Digital I/O:
2 inputs 5-24VDC, 2 outputs
24 VDC/60 mA
N.O. or N.C. (solid state)

Communication Ports
RS-485 or RS-232 simplex supports up to 115,200 bps

Analog Output:
Optoisolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC, -10 to 10 VDC, 5 to 5 VDC, (min 10 k ohm)

Annunciators:
Net, center of zero, stability, KG, G, LB

Display:
0.3 in (8 mm), six-digit, 7 segment LED

Keys/Buttons:

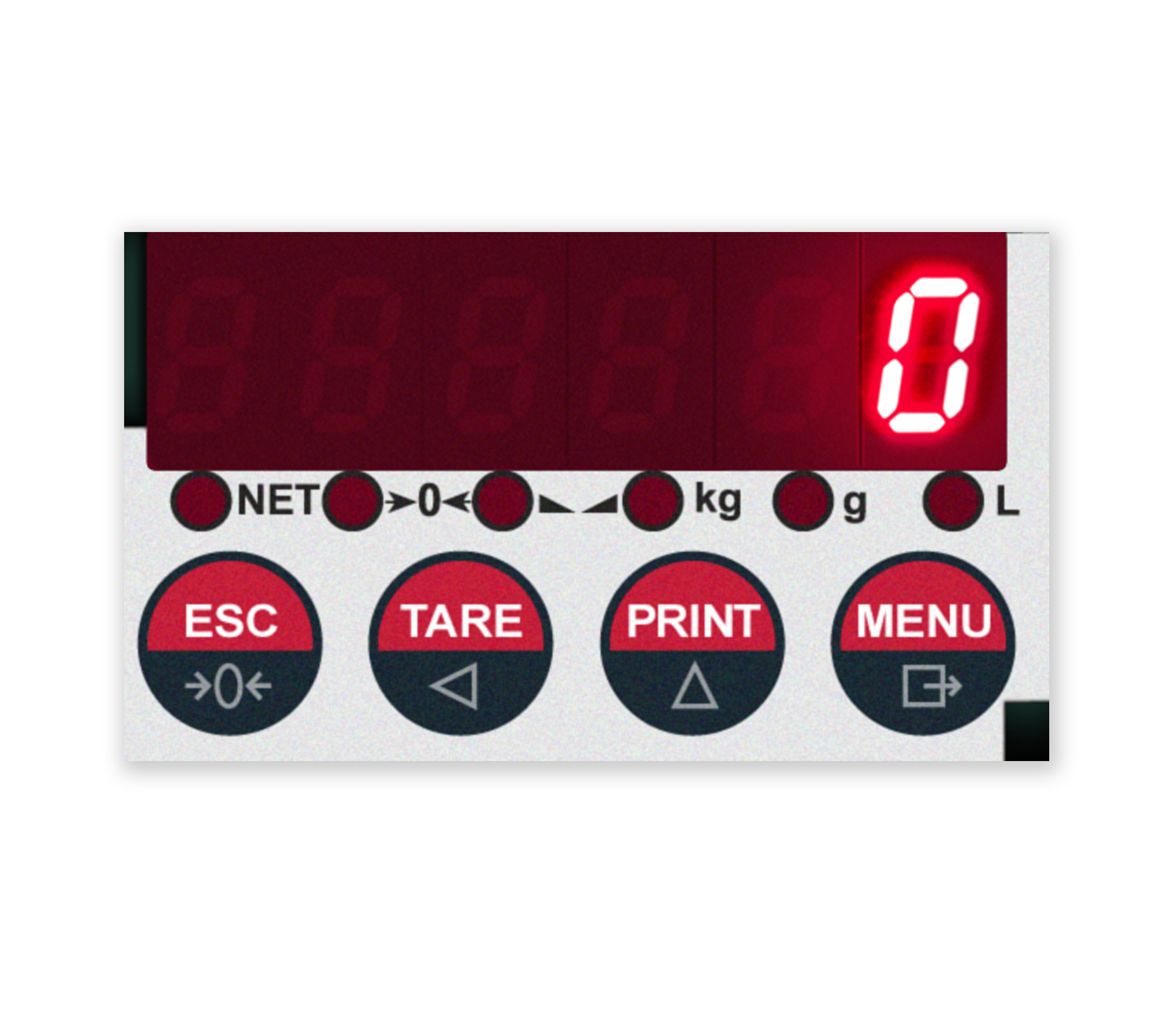

4-key membrane panel, tactile feel
Zero, Tare, Print, Menu, Escape,
Left and Up Navigation, Enter

Dimensions:
(L × W × H)
DIN Rail Mount: 4.84 × 3.62 × 1.96 in (123 × 92 × 50 mm)
Enclosure: 6.69 × 5.51 × 3.74 in (170 × 140 × 95 mm)

Temperature & Humidity:
Operating Temperature: -4 °F to 140 °F (-20 °C to 60 °C)
Humidity: 85% non-condensing

Rating/Material:
DIN rail mount: NEMA Type 1

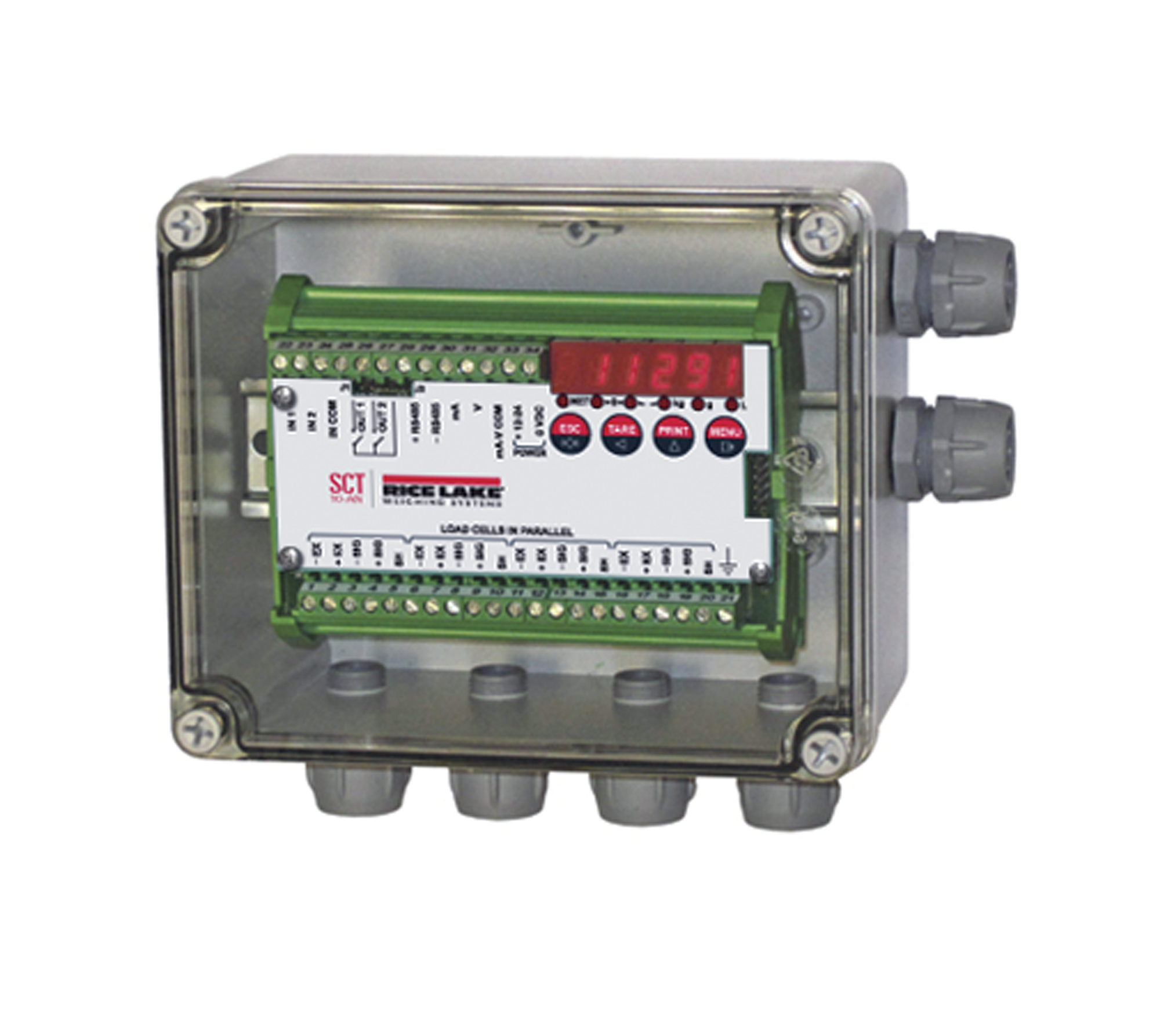

Enclosure: NEMA Type 4/IP67, plastic
Clear cover: six PG9 cord grips

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
cULus Recognized
