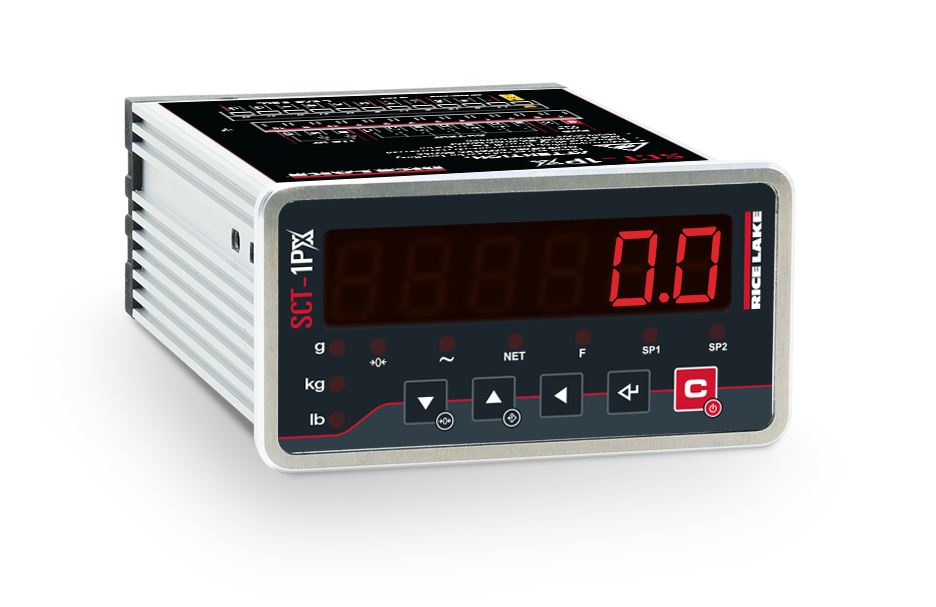

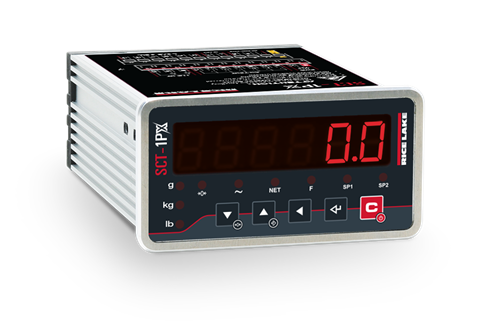

SCT-1PX Transmitter with Integrated Fieldbus and Web Server

Power:
12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 230 mA
up to 16 × 350 ohm load cells

Analog Signal Input Range:
±39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
24-bit A/D
Single channel up to 4,800 Hz

Resolution:
Internal: 4,000,000 counts
Display: up to 800,000
Up to 8 linearization points

Digital I/O:
Two inputs: 12/24 VDC
Two outputs*: 500 mA, up to 48 VAC or 60 VDC
*(up to six with option for analog version only)

Serial Ports:
One micro-USB port (device) for PC configuration
One RS-485
EtherNet/IP™ or PROFINET IO or Modbus TCP (Fieldbus version)

Analog Output (if equipped):
Opt. isolated, 16-bit
0 to 20 mA, 4 to 20 mA (maximum 350 ohm)
0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)

Annunciators:
Nine LEDs

Display:
Six-digit 0.56 in (14.2 mm), red LED

Keys/Buttons:
Five tactile keys
Zeroing, Tare, function mode, manual data printing/sending, On/Stand-by

Dimensions:
(L × W × H)
3.93 × 2.08 × 5.35 in
(100 × 53 × 136 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
85% RH, non-condensing

Rating/Material:
Aluminum IP65

Warranty:
One-year limited

Approvals:
CE-M EN 45501
UL
