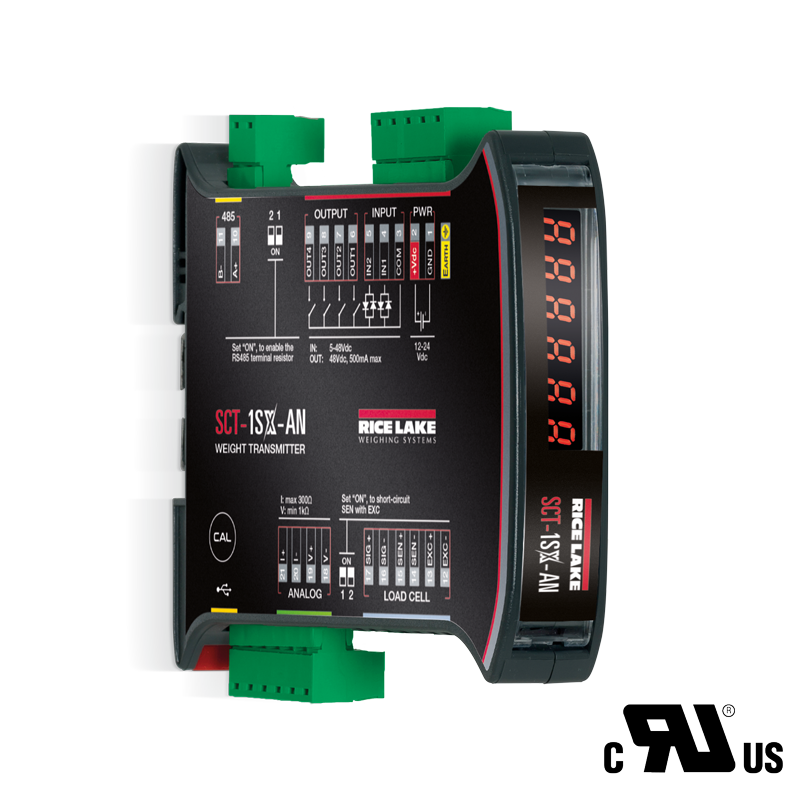

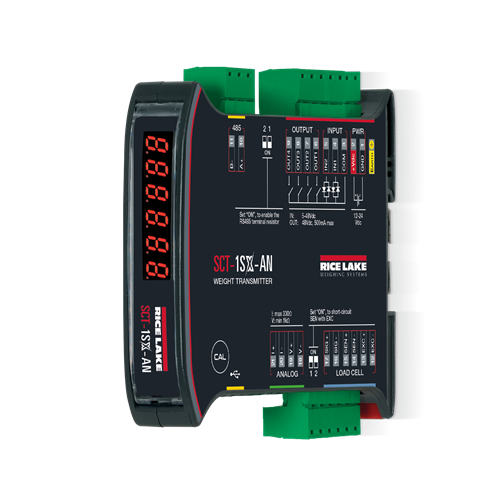

SCT-1SX Transmitter with Integrated Fieldbus and Web Server

• Load cell status diagnostics

• USB port for quick programming

• Integrated fieldbus and web server for configuration, diagnostics and data backup

• Process up to 4,800 weight readings per second, high speed allows an extremely accurate weight filtering even with weighing being performed in milliseconds

• Up to 120 updates per second on fieldbus

• New power supply circuit of the load cells (up to 16) for a better weighing stability

• Power supply circuit with protections against overloads, polarity reversal and short circuits, specific for industrial environments

• Micro-USB communication port for configuration, diagnostics and data backup is available on all versions

• Modbus RTU protocol integrated on all versions, up to 110 updates per second

• Real-time warning of any faults or disconnections of the load cell

• The integrated web server allows full diagnostics, calibration and remote configuration of the weight transmitter from an Ethernet network

• Calibration via theoretical (mV/V), with sample weights, web server or xSpeed software tool

• Easy configuration with Rice Lake Tools software

Optional xSpeed Software

• Customization of the weighing filter to maximize the speed and accuracy in static and dynamic applications

• Graphical weighing analysis for the identification of mechanical disturbances and vibrations, oscilloscope function for system diagnostics and filter optimization
