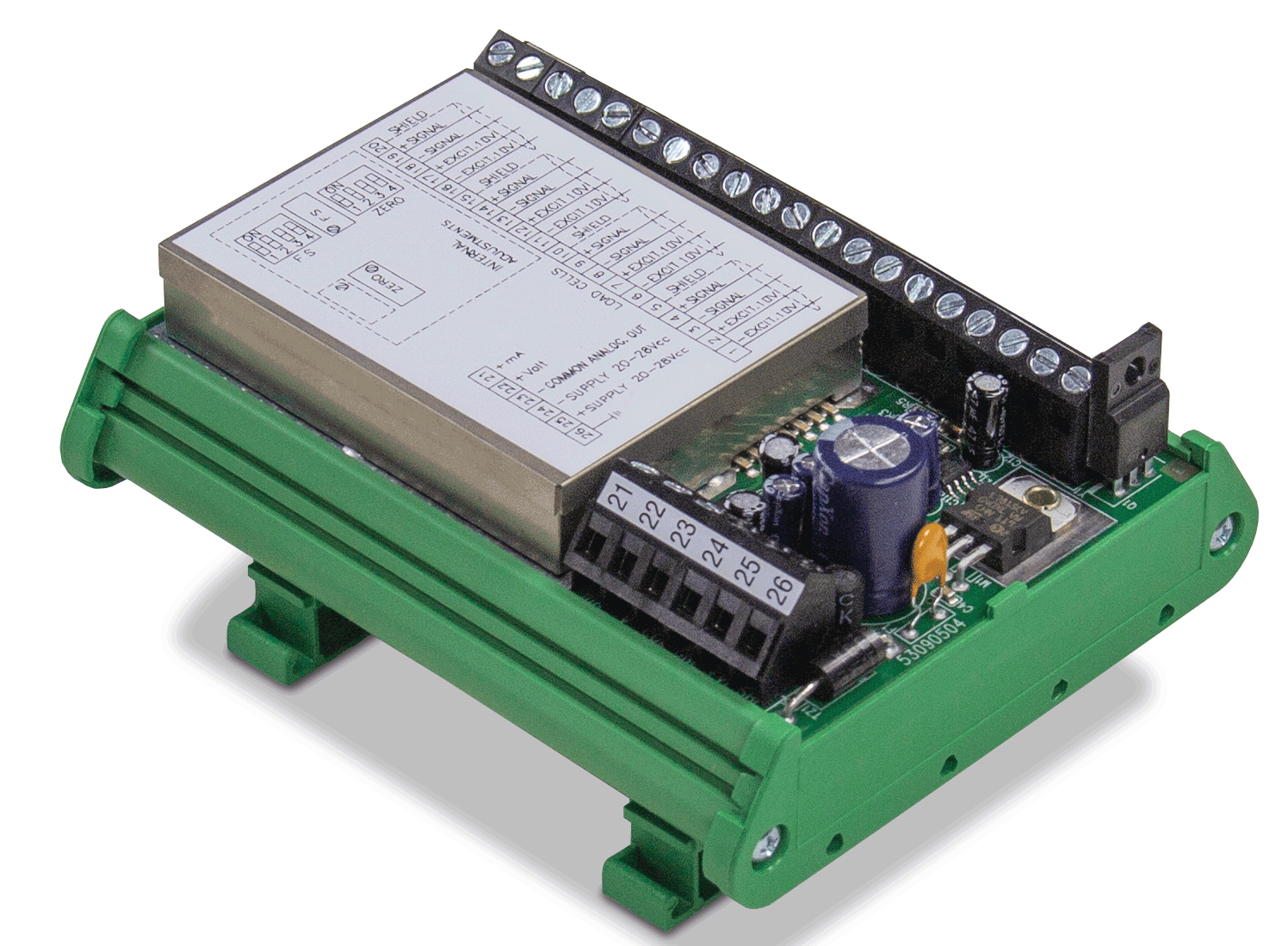

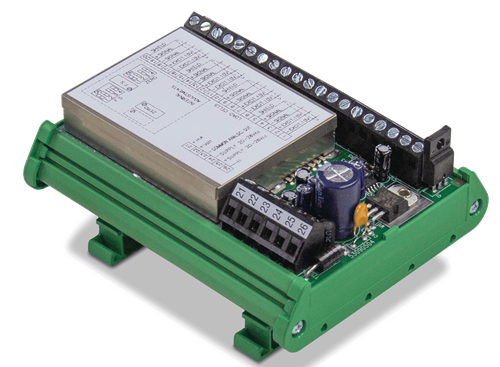

SCT-3300 Signal Conditioning Transmitter

Power:
Input: 20 to 28 VDC

Power Consumption:
8 W

Excitation Voltage:
10 VDC, 170 mA, 6 × 350 ohm load cells

Analog Signal Input Range:
3.5 to 24 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
300 Hz

System linearity:
± 0.01% full scale

Analog Output (if equipped):
Opto isolated
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC (min 10,000 ohm)

Dimensions:
(L × W × H)
4.56 × 3.72 × 2.4 in
(114 × 93 × 60 mm)

Temperature & Humidity:
Operating: 14 °F to 122 °F (-10 °C to 50 °C)
Humidity: 85% non-condensing

Rating/Material:
DIN rail mount: NEMA Type 1

Weight:
0.5 lb (0.2 kg)

Warranty:
One-year limited

Approvals:
UKCA Marked
