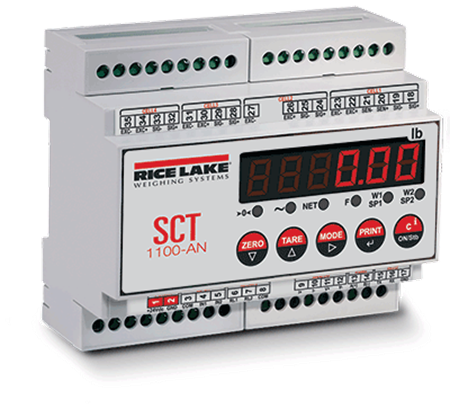

SCT-4X Integrated Fieldbus Transmitter

Power:
12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 230 mA
up to 16 × 350 ohm cells

Analog Signal Input Range:
±39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
24-bit A/D
Single channel up to 2,600 conv/sec
4 channels up to 100 conv/sec

Resolution:
Internal: 3,000,000 counts
Display: up to 800,000
Up to 8 linearization points

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
1 Micro-USB port (device) for PC configuration
(1) RS-485, (1) RS-232

Analog Output (if equipped):
OPTO isolated, 16-bit
0 to 20mA, 4 to 20 mA (maximum 350 ohm)
0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)

Annunciators:
Nine LEDs

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Five tactile keys
Zeroing, Tare, function mode, manual data printing/sending, on/stand-by

Dimensions:
(L × W × H)
4.17 × 2.20 × 4.64 in
(106 × 56 × 118 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
80% RH, non-condensing

Rating/Material:
NEMA Type 1 plastic pluggable connectors
ABS

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
CE-M EN 45501
