Product PDF

SD-1150-WP Dialysis Wheelchair Scale

  • Package includes scale, pit frame, handrail and indicator
  • Heavy-duty mild steel construction
  • Handrail for added patient safety
  • Large 1-inch LCD display
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EMR capable
  • Serial and USB data communication ports
  • Bluetooth® BLE 4.0 available, part number selectable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

Same-day Shipping Available

Request Quote

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO CEMET

WARNING: Cancer and Reproductive Harm California Proposition 65
SD-1150-WP Dialysis Wheelchair Scale

SD-1150-WP Healthweigh® Dialysis Wheelchair Scale

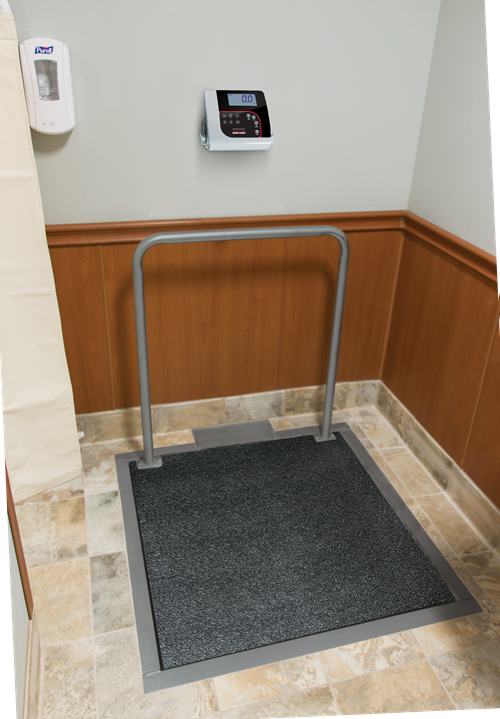

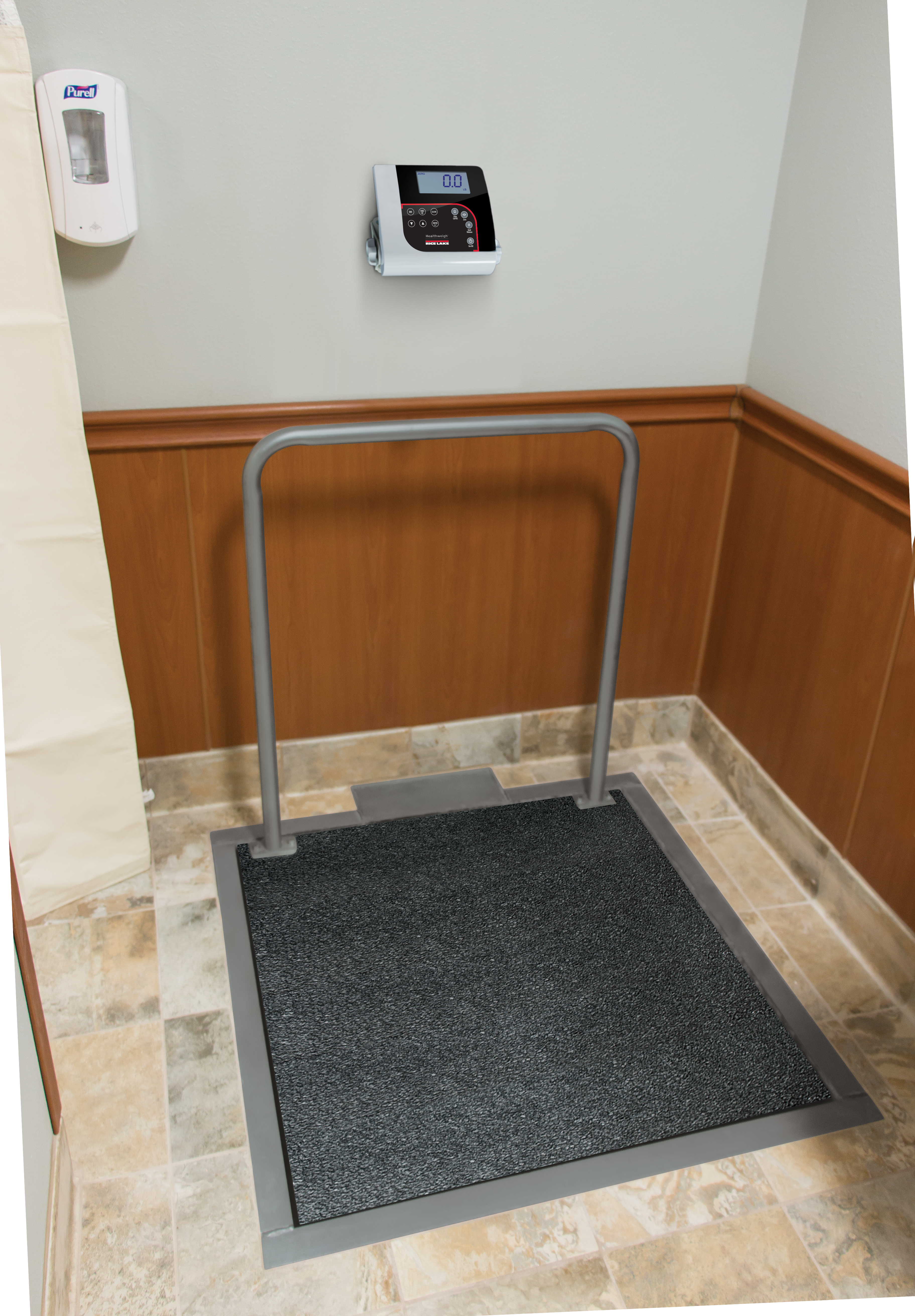

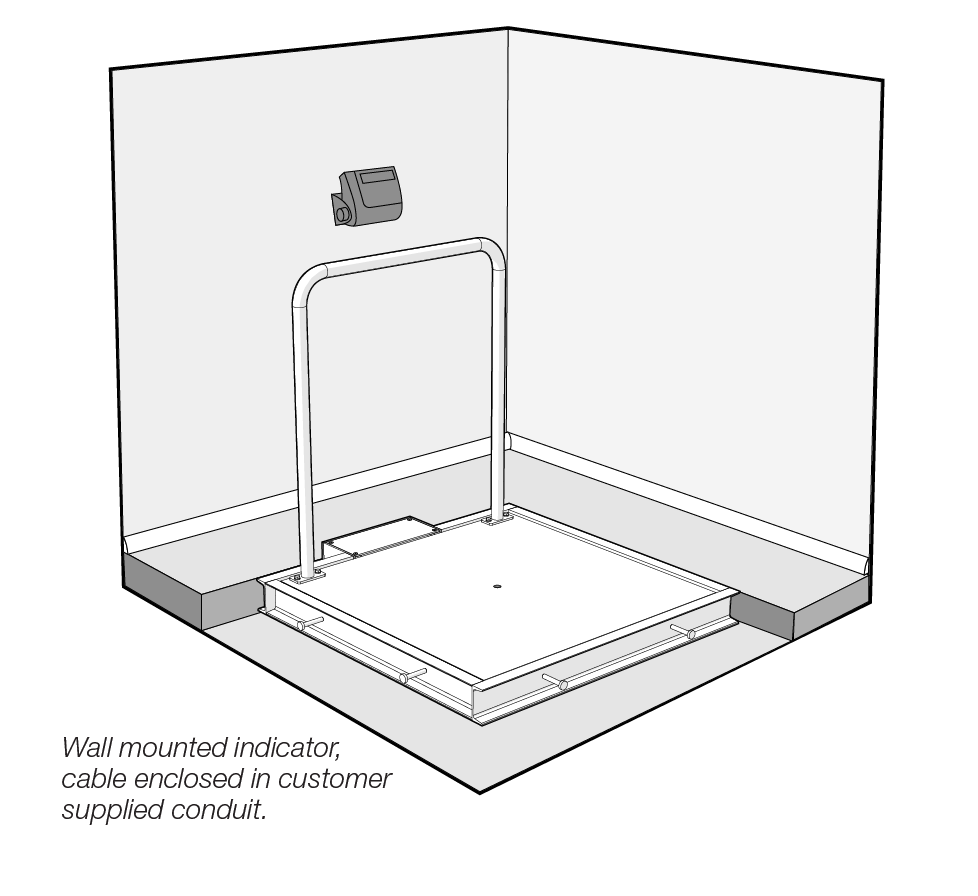

The Summit™ SD-1150-WP Healthweigh® dialysis wheelchair scale is designed to accommodate the unique needs of dialysis patients. It is designed to be pit-mounted flush with the floor for multipurpose weighing. Its heavy-duty handrail enhances patient safety and convenience, and is positioned to remain clear of wheelchairs. Convenient keypad tare reduces errors and increases efficiency.

Capacity:
1,000 × 0.2 lb (450 × 0.1 kg)

Platform Dimensions:
(L × W × H)
36.0 × 36.0 × 3.0 in

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Operating Temperature:
50 °F to 104 °F (10 °C to 40 °C)

Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height

Approvals:
c-Met, E113986

Warranty:
Two-year limited

Dimensions
  Inches Centimeters
A 36.0 91.4
B 36.0 91.4
C 3.0 7.6
D 31.5 80.0
E 37.0 94.0





Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
150707 SD-1150-WP 40 39 15 246 169 246
205978 SD-1150-WPBLE 40 39 15 246 169 246





Resources / Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles
Top 5 Wheelchair Scale Types Email Health Scales|Wheelchair Scales Articles

Title Download Email
SD-1150-WP Dialysis Wheelchair Scale Catalog Page Download Email
SD-1150-WP Pit Frame Download Email

Title Version Revision Download Email Category Archived
Summit SD-1150-WP Dialysis Wheelchair Scale Operation Manual A Download Email Health Scales No
Summit SD-1150-WP Dialysis Wheelchair Scale Technical Manual D Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales B Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes

Title Download Email
SD-1150-WP Replacement Parts Catalog Page Download Email
Medical Indicator, Titanium Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Wheelchair Scales: Slip Resistant Metal Top Request Download Email Health Scales|Wheelchair Scales
Medical Product Guide Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Healthweigh Indicator Keypad and CPU Board Testing Download Email Health Scales

Title View Download Email Category
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales
Calibrating a Rice Lake Medical Scale View Download Email Health Scales
Locking Units of Measure on Rice Lake Medical Indicators View Download Email Health Scales
How to Measure a Wheelchair to Find the Right Size Scale View Download Email Wheelchair Scales
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators View Download Email Health Scales

Title Download Email Category
SD-1150-WP Dialysis Wheelchair Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart
150707 Scale, SD-1150-WP 1000LB Package (Scale, Handrail, Indicator, Pit Frame) 36IN(W)X 36IN(L) X 3IN(H) With Smooth Top Anti Slip Rubber Surface, Side Access Junction Box, 36IN(H)X 30IN(W) Steel Painted Handrail And Mounting Hardware. Indicator. 10FT Homerun Cable With Connector For Indicator. 36 in. x 36 in. Pit frame. Includes 6 AA size Alkaline batteries.

List Price: $2,255.00
205978 Scale, SD-1150-WPBLE 1000LB Package (Scale, Handrail, Indicator, Pit Frame) 36IN(W)X 36IN(L) X 3IN(H) With Smooth Top Anti Slip Rubber Surface, Side Access Junction Box, 36IN(H)X 30IN(W) Steel Painted Handrial And Mounting Hardware. Indicator. 10FT Homerun Cable With Connector For Indicator. 36 in. x 36 in. Pit frame. Includes 6 AA size Alkaline batteries.

List Price: $2,490.00

Options

Part # Description List Price Cart
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $25.00
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA

List Price: $30.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable, USB 6ft USB-A (male) to USB-B (male)

List Price: $35.00
217091 Cable, Communication DB9 (female)to RJ45 (male), 4 Conductor

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
