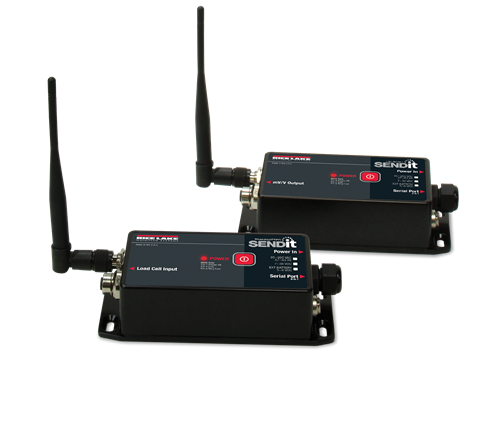

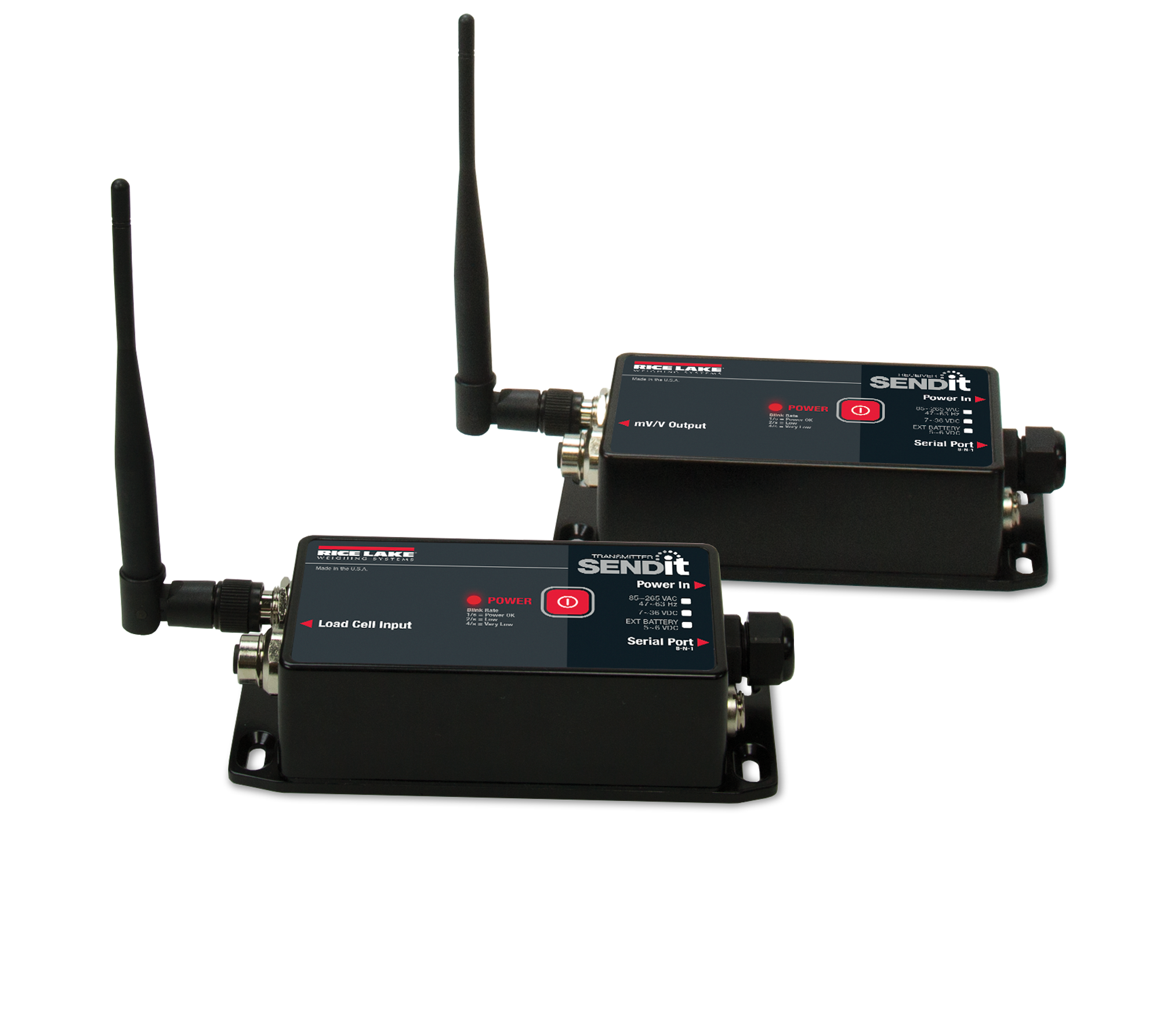

SendIt Wireless Load Cell Interface System

  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • Auto-off mode: Selectable for 15, 30, 45, 60 minutes or off
  • Auto-sleep mode: Power down during non-use, power up with weight change or key press
  • RS-232 cable included with transmitter and paired set

Power:
5-6 VDC

Excitation Voltage:
Transmitter: +4.8 VDC, 16x 350Ω or 32x 700Ω load cells

Standard Antenna:
1/2 wave 2dBi, articulated

Frequency:
Direct sequence spread spectrum at 2.4 GHz, 802.15.4 license free

Effective Range:
Typically 100 ft - 300 ft
For longer range, consult factory

Circuit Protection:
RFI, EMI, ESD protection

Serial Port:
Full duplex RS-232

Operating Temperature:
-40° F to 185° F (-40°C to 85°C)

Enclosure:
NEMA Type4 (IP66), aluminum black powder coated (excludes wall cube model)

Warranty:
Two-year limited warranty

Resources / Downloads

Title Download Email
SendIt Wireless Load Cell Interface System Catalog Page Download Email

Title Version Revision Download Email Category Archived
SENDit™ Wireless Load Cell Interface Installation Manual F Download Email Systems Integration/Load Cells|Wireless Communications No

Title Collateral Wizard Request Download Email Category
SendIt Wireless Load Cell Interface System Request Download Email MSI Crane Scales|Overhead Weighing Systems

Title Version Size Release Date Download Email
MSI mV Scale Calibration (Truck Scale Calibration) Utility 1 58.8 MB 06/19/2017 Download Email
ScaleCore Configuration Management Program (ScCMP) Software v2-0-5-51 44.9 MB 06/17/2015 Download Email
ScaleCore Connect 1.01 47.3 MB 11/25/2019 Download Email

Title View Download Email Category
TranSend and SendIt Configuration View Download Email Wireless Communications|Overhead Weighing Systems
TranSend and SendIt Overview View Download Email Wireless Communications|Overhead Weighing Systems
TranSend and SendIt Calibration View Download Email Wireless Communications|Overhead Weighing Systems

Parts

Transmitters 5-6 VDC Power Input

Part # Description List Price Cart
160331 SENDIT TRANSMITTER 5-6VDC

List Price: $860.00

Receivers 5-6 VDC Power Input

Paired Set 5-6 VDC Power Input

Options

Part # Description List Price Cart
162172 Battery Charger 6V SLA 7000/7001

List Price: $63.00

162173 Battery 6V SLA 7000/7001

List Price: $120.00

162175 Enclosure Battery 6V SLA 7000/7001

List Price: $320.00

145548 CORDSET IP68 4 PIN MALE SHIELDED 4 METER

Call for price

150964 CABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000

List Price: $180.00

150965 CABLE ASSY,SERIAL I/O DTE D9 PINS 8000

List Price: $170.00

160109 PWR ADAPTER 12W 6VDC WALL MOUNT. UNIVERSAL INPUT 90-264VAC. 2.1mm COAX POWER PLUG.

List Price: $53.00

162177 Cordset IP68 4 Pin Male Shielded 2 Meter (6.56 feet)

List Price: $120.00

162184 CONN,M12 4 Pin Male Field Wireable 4-6mm Cable OD Straight

List Price: $55.50

162185 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Straight IP 67

List Price: $55.50

162186 CONN,M12 4 Pin Male Field Wireable 4-6mm OD Right Angle

List Price: $55.50

162187 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Right Angle

List Price: $55.50

162178 Option Kit Remote Antenna 7000/7001 (Uses Standard Antenna)

List Price: $440.00

139309 ANTENNA KIT LONG RANGE OMNI W/3M COAX

List Price: $460.00

139310 ANTENNA KIT CORNER REFLECTOR 9DBI W/3M COAX

List Price: $455.00

139311 ANTENNA KIT CORNER REFLECTOR 12dBi W/3m COAX

List Price: $485.00

139312 ANTENNA KIT YAGI 15DBI W/3M COAX

List Price: $375.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
