SURVIVOR® AG Truck Scale

  • 25,000 lb capacity load cells and pre-assembled G-Force™ mounts
  • NTEP Certified
  • Up to 30,000 lb full scale capacity in 5 lb increments
  • Widths up to 15 ft
  • Lengths up to 43.75 ft
  • For concrete deck (rebar and pan not included)

Packs the performance of a SURVIVOR into a mid-size, mid-duty frame

Designed to provide reliable performance under the most demanding conditions, SURVIVOR scales are built with more structural steel, a superior support structure and innovative design features that provide consistent accuracy, less downtime and a longer scale life.

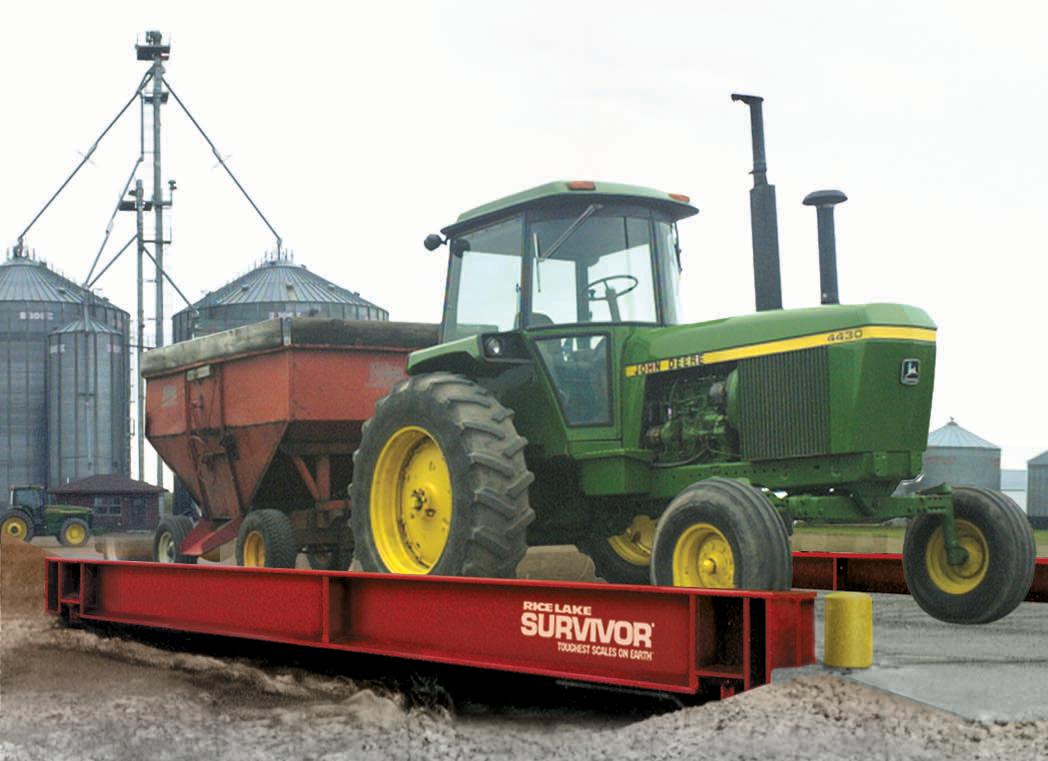

The AG livestock scale packs the performance of a SURVIVOR into a mid-size, mid-duty frame. The AG comes complete with a fabricated weighbridge for a concrete platform, load cells and mounts, as well as top access to load cells.

The AG is available with a standard concrete deck with a profile from 14 in to 16 in high, or with an optional steel deck. The AG is ideal for a variety of livestock and vehicle weighing applications.

Load Cell Capacity:
25,000 lb

Concentrated Load Capacity:
20,000 lb

Full Scale Capacity:
30,000 lb capacity (x 5lb)

Approvals:
NTEP Certified 98-008

Warranty:
2-year limited warranty on the weighbridge
2-year parts warranty, including lightning protection

  • Steel deck
  • Fit existing foundations
  • Pit installations
  • Galvanized

Resources / Downloads

Title Download Email
SURVIVOR AG Series Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR AG Series Livestock Scale Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Grounding View Email Truck Scales

Parts

No parts found for this product

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
