SURVIVOR® ATV-M Truck Scale

  • Above-ground or in-pit foundation
  • Factory-assembled, self-contained modules
  • Individual module lengths from 10 ft to 40 ft
  • Multiple modules create desired scale length
  • Standard levers - 32.5 ton sectional rating
  • Standard height - 30 in
  • NTEP Certified 05-018
  • Standard deck - 3/8 in thick diamond safety treadplate
  • Standard widths from 10 ft to 14 ft
  • Capacities to 400,000 lb

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Renowned for reliability— Rice Lake’s Legendary Levertronic Truck Scales

SURVIVOR M-Series scales combine groundbreaking ease of customization with the proven durability that only mechanical scales deliver. In a market crowded with scales built to compete on price alone, SURVIVOR M-Series scales are designed and built to compete by value and performance under the most extreme conditions.

Permanent or Portable

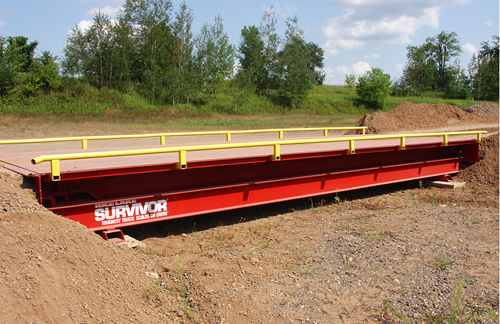

The ATV-M is a mechanical version of our ATV models, offering the versatility to be either permanent or portable, installed above ground or in a pit. Its high-performance, low-maintenance mechanical lever design offers unsurpassed reliability and life expectancy. The ATV-M comes standard with a steel tread plate deck and easy access manhole cover.

Full Scale Capacity:
Standard 60,000 lb to 200,000 lb
Custom up to 400,000 lb

Concentrated Load Capacity (CLC):
Standard 50,000 lb to 70,000 lb
Custom up to 100,000 lb

Approvals:
NTEP Certified per H-44, Class IIIL
05-018 Measurement Canada AM-5598

Warranty:
One-year warranty on pivots, bearings, suspension, and mounting parts of the corner assemblies
Two-year warranty on weighbridge

  • Side pipe rails
  • Steel bulkheads
  • Conversion s-beam load cell(s)
  • Load cell mounting hardware
  • Indicator
  • Printer
  • Other peripheral equipment

Resources / Downloads

Title View Email Category Type
Truck Scale Calibration View Email Truck Scales Articles

Title Download Email
SURVIVOR ATV-M Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR ATV-M and PT-M Truck Scale Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales

Parts

10 Foot Width

Part # Description List Price Cart
90074 430C10-S 40 Ton 30x10 MC 30 X 10 LEVERTRONIC PORTABLE WITH 3/8 INCH STEEL DECK ATV-M SERIES. ONE MODULE.

Call for price

90076 635C10-S 60 TON 35X10 MC 35 X 10 LEVERTRONIC PORTABLE SCALE W/ 3/8 INCH ST.DECK ATV-M SERIES. ONE MODULE.

Call for price

90129 1060C10-S 100 T 60X10 MC 60 X 10 LEVERTRONIC PORTABLE W/ 3/8 INCH STEEL DECK ATV-M SERIES. COMPRISED OF TWO 30' MODULES.

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
