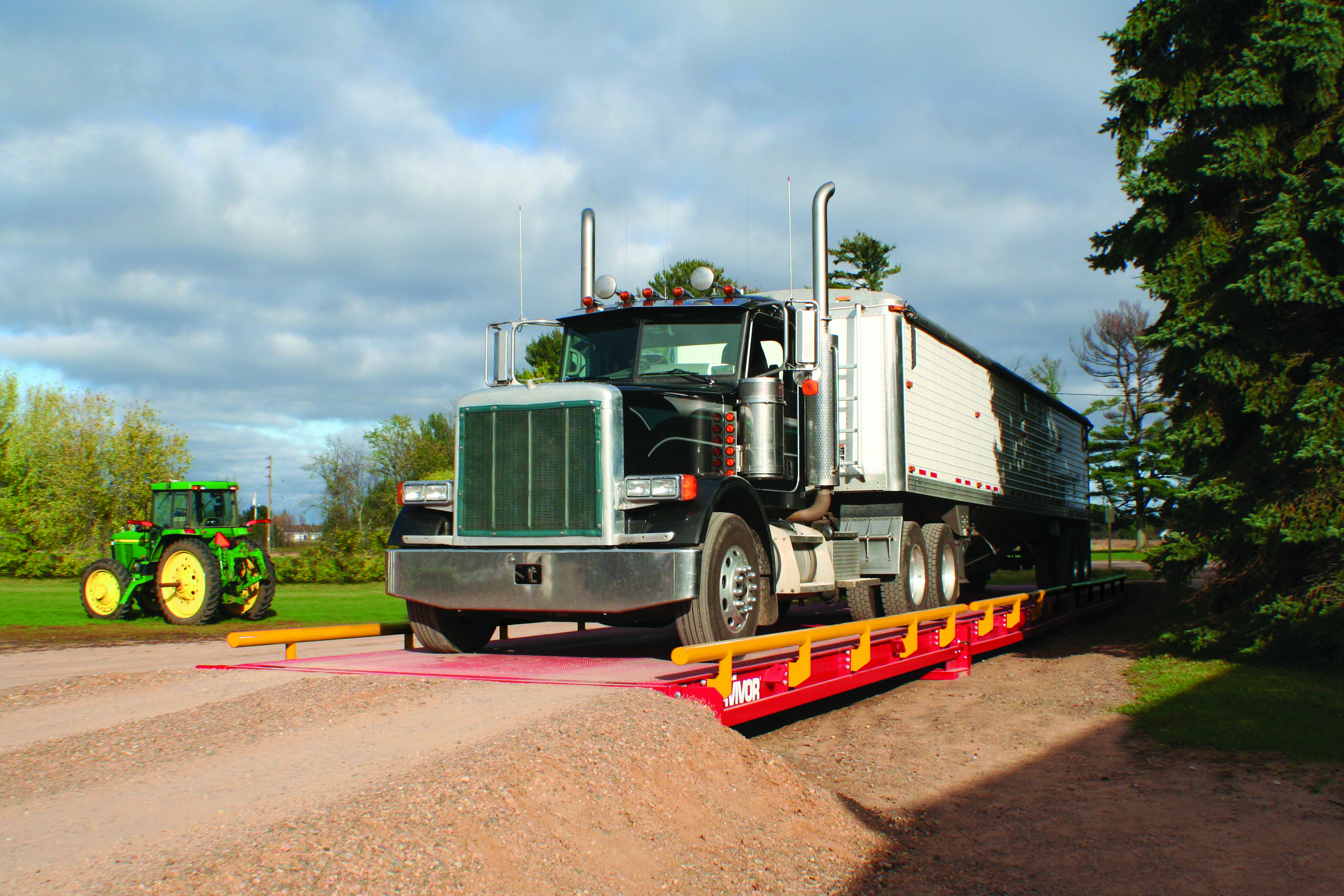

SURVIVOR® ATV Portable Truck Scale

  • Top access to load cells and junction box
  • 75,000 lb load cells and pre-assembled G-Force™ mounts
  • NTEP Certified 02-003
  • 100,000 lb Concentrated Load Capacity (CLC)
  • 100,000 lb Dual Tandem Axle (DTA)
  • Up to 270,000 lb full scale capacity
  • Bolt-on backfill ramp bulkheads (removable for concrete approaches)
  • End clean out
  • Three standard widths: 10 ft, 11 ft and 12 ft(available up to 16.5 ft, NTEP Certified)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO NOM

WARNING: Cancer and Reproductive Harm California Proposition 65

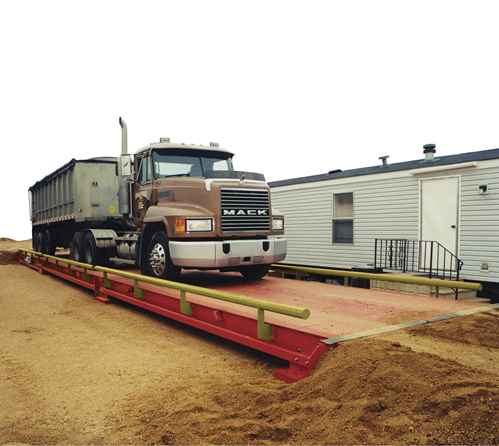

Portability Meets Performance

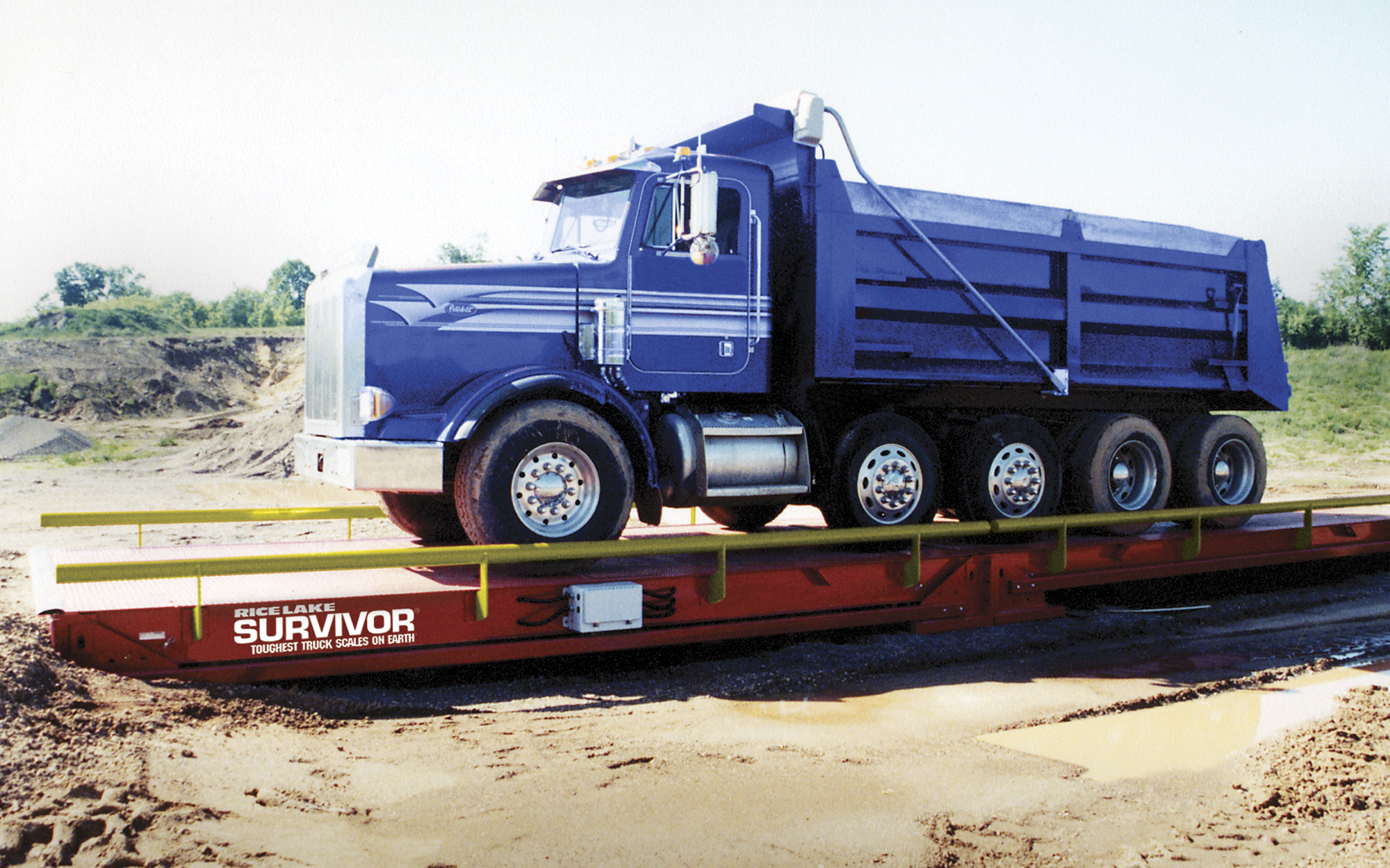

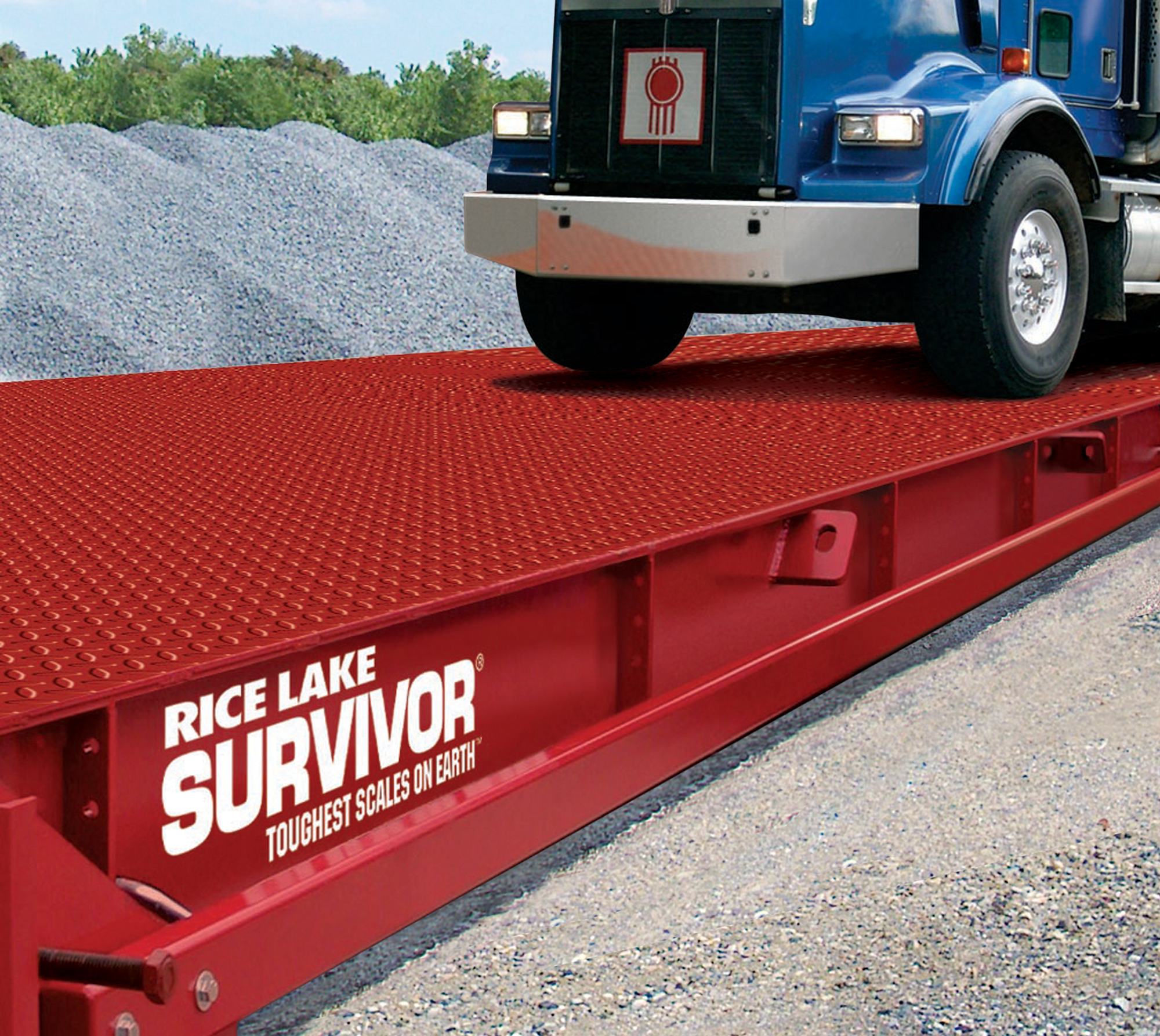

Engineered with the unbeatable performance standards of every SURVIVOR product, the SURVIVOR ATV portable truck scale brings heavy-capacity weighing to non-permanent sites. The low profile, compact weighbridge is robust, constantly standing up to tough demands of temporary aggregate mining, construction or timber operations. With a steel deck welded to twelve 12-inch, wide flange, 14-pound structural steel I-beams, the SURVIVOR ATV is constructed with more steel content than competitive models for superior endurance and longevity.

Easily Expand or Transport

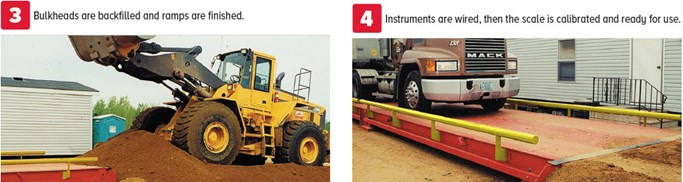

Easy to set up, expand and transport to different sites, the SURVIVOR ATV is designed to change with your business. Versatile modules are factory-wired and preassembled with self-seating hinge joints to make it easy to add or remove sections and exactly fit your specific application requirements.

Built Tough, Start to Finish

Every SURVIVOR ATV scale is proudly made onsite at Rice Lake Weighing Systems. All weighbridge components are shot-blasted and cleaned of debris, grease and oil. After welding and assembly, each scale is painted with a high-performance epoxy primer, followed by a finish of hard-coat, high-solids urethane primer and paint.

Load Cells and Mount Assemblies:
75,000 lb capacity; G-Force™ self-checking mounting system, top access to load cells

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
100,000 lb

Dual Tandem Axle (DTA):
100,000 lb

Approvals:
NTEP Certified per H-44, Class IIIL 02-003
Measurement Canada AM-5413

Warranty
5-year or 12-year limited warranty on the weighbridge
5-year or 12-year limited parts warranty, including lightning protection

Resources / Downloads

Title Download Email
SURVIVOR ATV Catalog Page Download Email

Title Version Revision Download Email Category Archived
SURVIVOR® ATV Portable Truck Scale Assembly Instructions C Download Email Truck Scales No

Title Collateral Wizard Request Download Email Category
SURVIVOR ATV Series Steel Deck Truck Scales Request Download Email Truck Scales
The Truck Scale Buyer's Guide Request Download Email Truck Scales
The SURVIVOR Advantage Request Download Email Truck Scales
Total Cost of Ownership Worksheet Request Download Email Truck Scales

Title View Download Email Category
Truck Scale Sales Video View Download Email Truck Scales
Rice Lake SURVIVOR® Truck Scale Advantages View Download Email Truck Scales
Truck Scale Grounding View Email Truck Scales

Title Download Email
SURVIVOR ATV Steel Deck 70ft x 11ft (Word) Download Email
SURVIVOR ATV Steel Deck 70ft x 11ft (PDF) Download Email

Parts

10 Foot Width

Part # Description List Price Cart
66986 Truck Scale 10x10 ATV Steel Deck SURVIVOR ATV Model EZ1010-ST-60-ATV 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

64510 Truck Scale, 20x10 ATV Steel Deck SURVIVOR ATV Model EZ2010-ST-60-ATV 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

64511 Truck Scale 24x10 ATV Steel Deck SURVIVOR ATV Model EZ2410-ST-60-ATV 100,000lb CLC, 120,000lb Capacity, 2-Section, 5/16 Top Plate

Call for price

64512 Truck Scale 40x10 ATV Steel Deck SURVIVOR ATV Model EZ4010-ST-100-ATV 100,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

64513 Truck Scale 47x10 ATV Steel Deck SURVIVOR ATV Model EZ4710-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

64514 Truck Scale 60x10 ATV Steel Deck SURVIVOR ATV Model EZ6010-ST-100-ATV 100,000lb CLC, 200,000lb Capacity, 4-Section, 5/16 Top Plate

Call for price

64515 Truck Scale,70x10 ATV Steel Deck SURVIVOR ATV Model EZ7010-ST-100-ATV 100,000lb CLC, 200,000lb Cap, 4-Section, 5/16 Top Plate

Call for price

72970 Truck Scale,30x10 ATV Steel Deck SURVIVOR ATV Model EZ3010-ST-60-ATV 100,000lb CLC, 120,000 Cap, 2-Section, 5/16 Top Plate

Call for price

72971 Truck Scale,80x10 ATV Steel Deck SURVIVOR ATV Model EZ8010-ST-100-ATV 100,000lb CLC, 200,000 Cap, 4-Section, 5/16 Top Plate

Call for price

11 Foot Width

12 Foot Width

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

1280 Kiosk

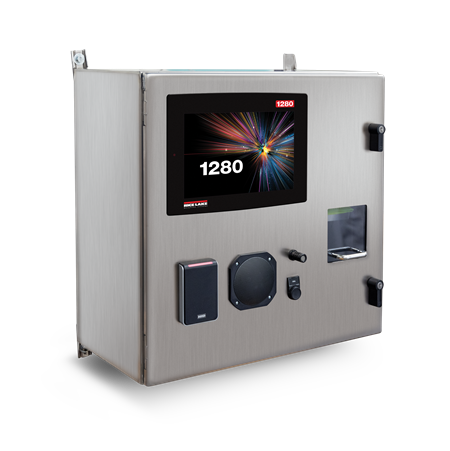

1280 Truck Scale Kiosk

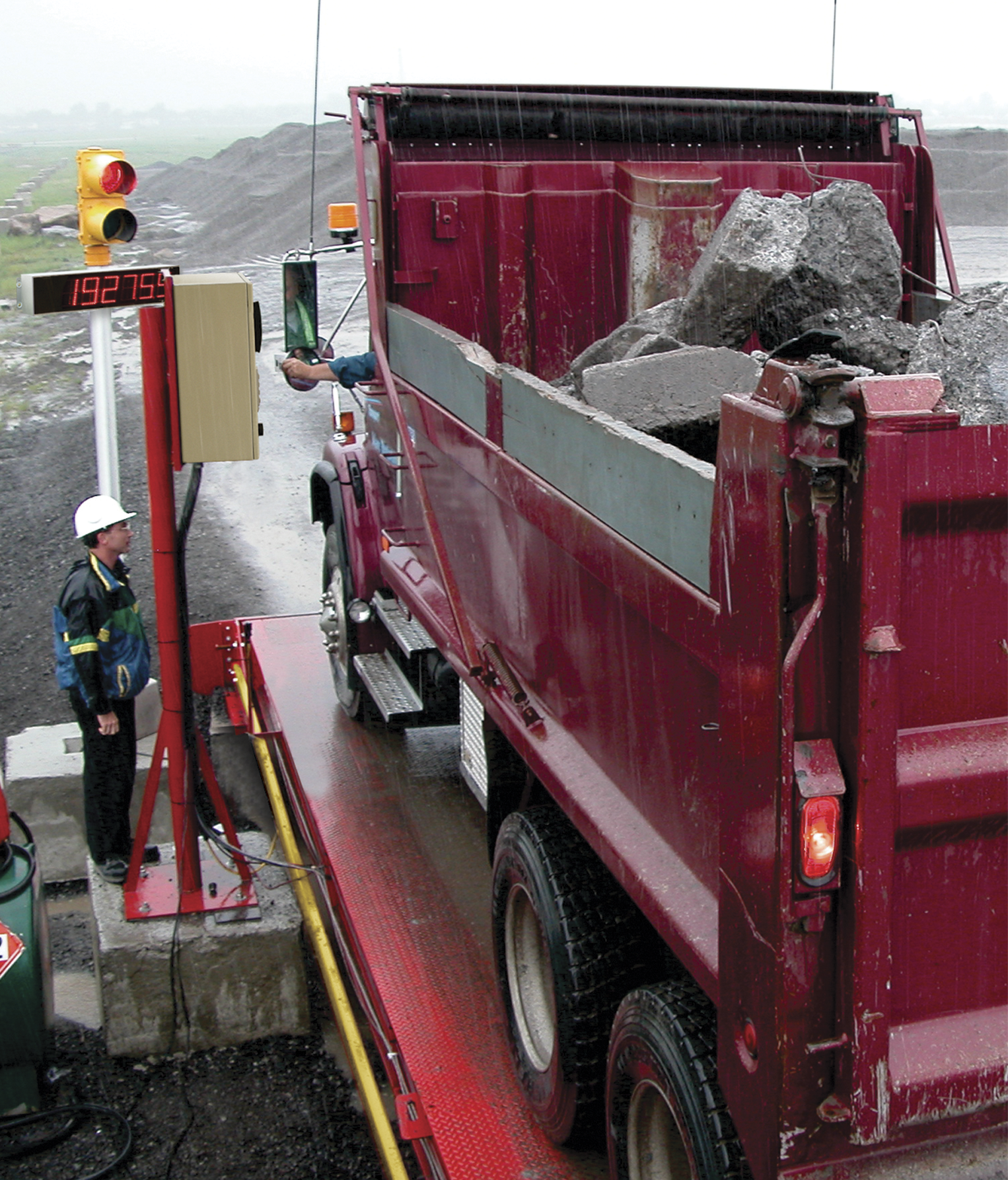

Rice Lake's 1280 Kiosk automated ticketing system simplifies truck weighing by eliminating the need to hand-write a ticket for every weighment. The state-of-the-art 1280 indicator features a large, vibrant touchscreen and web server connectivity.

Kiosk Atv1

Automated Ticketing Kiosks

Rice Lake's line of Automated Ticketing Kiosks eliminates the need to hand-write a ticket for each weighment, giving your system the efficiency it needs to keep up with growing business.

WEB SC ATK Ticketing

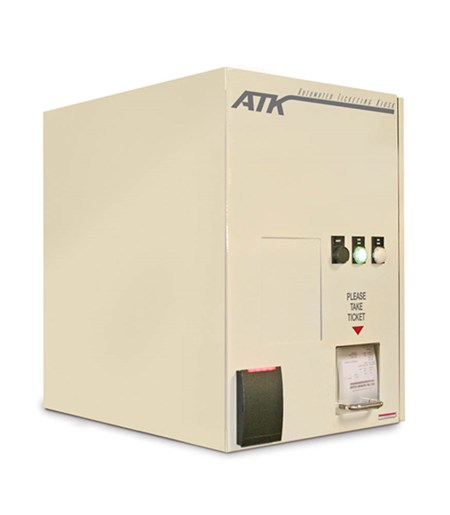

Printer Kiosks

Automated Ticketing Printer Kiosks improve more than just speed and accuracy. They offer state-of-the-art features like RFID, vehicle recognition and a durable, weatherproof design.

WEB SC Truck Scale Kiosk Saftey Arm

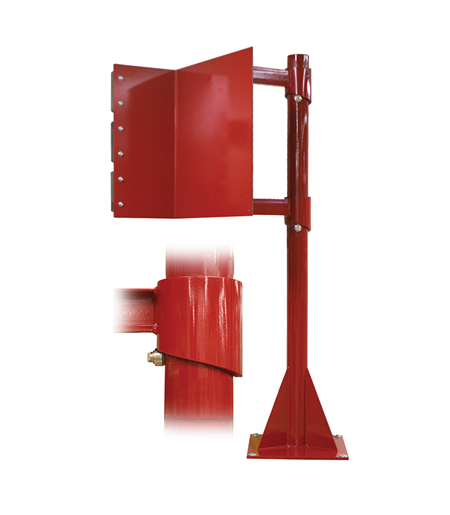

Truck Scale Kiosk Safety Swing-Away Arm

Kiosk Safety Swing-Away Arms protect your kiosk investment from accidental collisions. Our Safety Swing-Away Arm will swing away from vehicle cabs and mirrors and return to center after contact.

WEB SC Ontrack Software

OnTrak® Truck Scale Data Management Software

OnTrak software is an effective data management tool for truck scale operations that use Rice Lake Automated Ticketing Kiosk (ATK) systems.

Loop

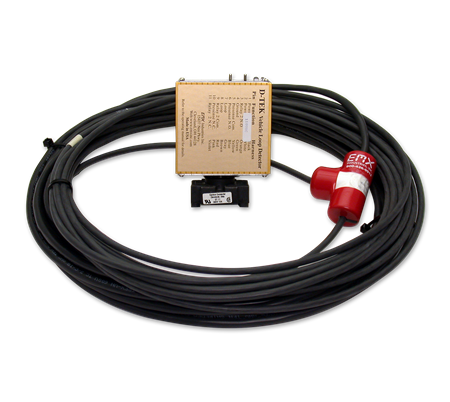

Loop Detectors

Loop detectors from Rice Lake are easily installed below ground at the entry or exit of your truck scale to detect vehicle movement.

Photoeyes

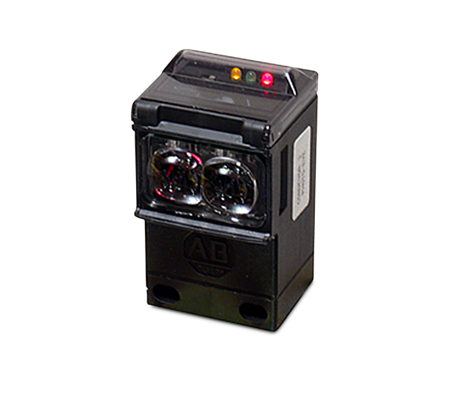

Photo Eyes

Photo Eyes from Rice Lake are a simple solution for detecting vehicle movement and traffic flow. Photo eyes are very practical in many scale operations.

Transcore

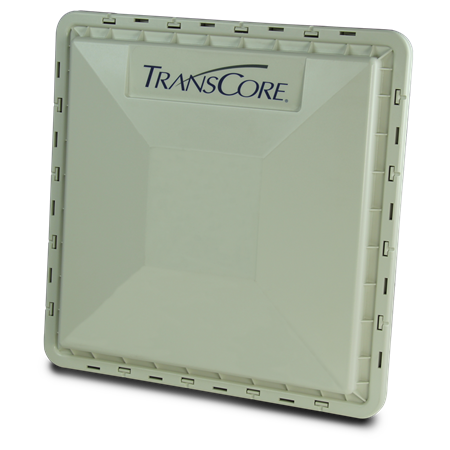

TransCore® Tags and Readers

TransCore Tags and Readers speed up truck scale traffic flow and remotely identify vehicles with Radio Frequency Identification.

Tags

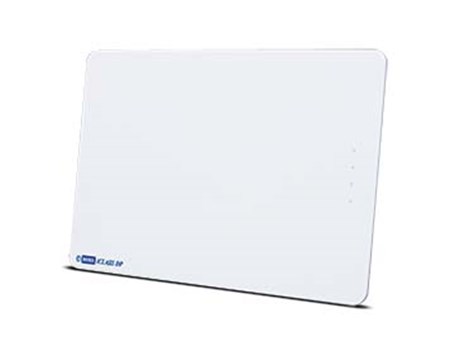

HID RFID Cards and Readers

HID RFID Tags, Readers, Cards and Keys speed up traffic flow and remotely identify vehicles with Radio Frequency Identification (RFID). Rice Lake offers a selection of devices to meet the needs of nearly any process.

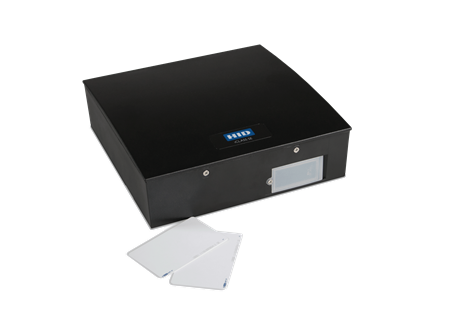

HID Long Range Readers
