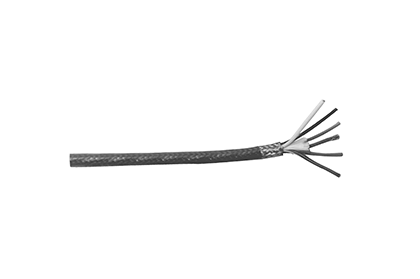

SURVIVOR® EL620HE High Temperature Cable
- Multi-conductor overall foil and braid shield
- Suitable for temperatures from -40 °C (-40 °F) to 200 °C (392 °F)
- Insulation thickness: 0.010 in
- Jacket thickness: 0.017 in
- 18 gauge, tinned copper conductors
- Six-conductor
- FEP jacket, resistant to chemical corrosion and high temperature
- Aluminum-polyester shield with 85% tinned copper braid shield
- 150 V NEC 725 Class 2 classified for use in an air plenum non-conduit
- 0.24 in diameter cable
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 15605 | Cable,6 Conductor EL620HE High Temperature Red Jacket |
List Price: $13.00 |
